2 / 4 Nozzles Tracking Type Liquid Bottle Filling Machine High Speed
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | CE , ISO , SGS , TUV |
| Model Number: | LH-AFT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Packaging Details: | Normally packaged in wooden case or wrapping film, also can be customized |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, , D/A, D/P, Cash |
| Supply Ability: | 30 Sets per Month |
|
Detail Information |
|||
| Features: | Tracking Type Filling | Control: | SIEMENS PLC Touch Screen |
|---|---|---|---|
| Protection: | Comprehensive Safety Alarm System | Detecting System: | Vial Detector & Counter |
| Structure: | Linear | Material: | SUS 304 / 316L |
| High Light: | 4 Nozzles Liquid Bottle Filling Machine,2 Nozzles Liquid Bottle Filling Machine |
||
Product Description

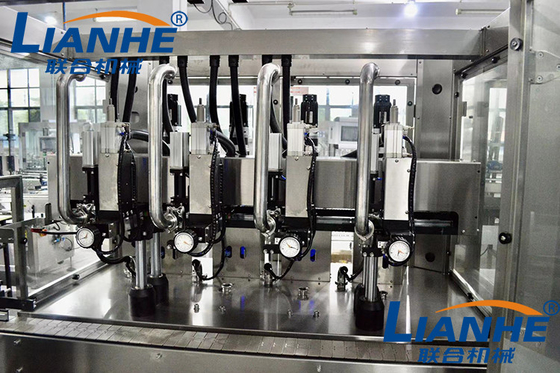

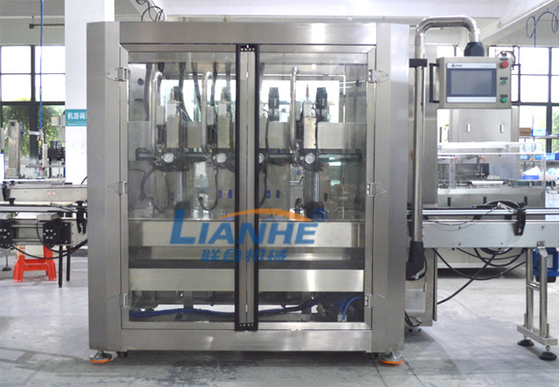

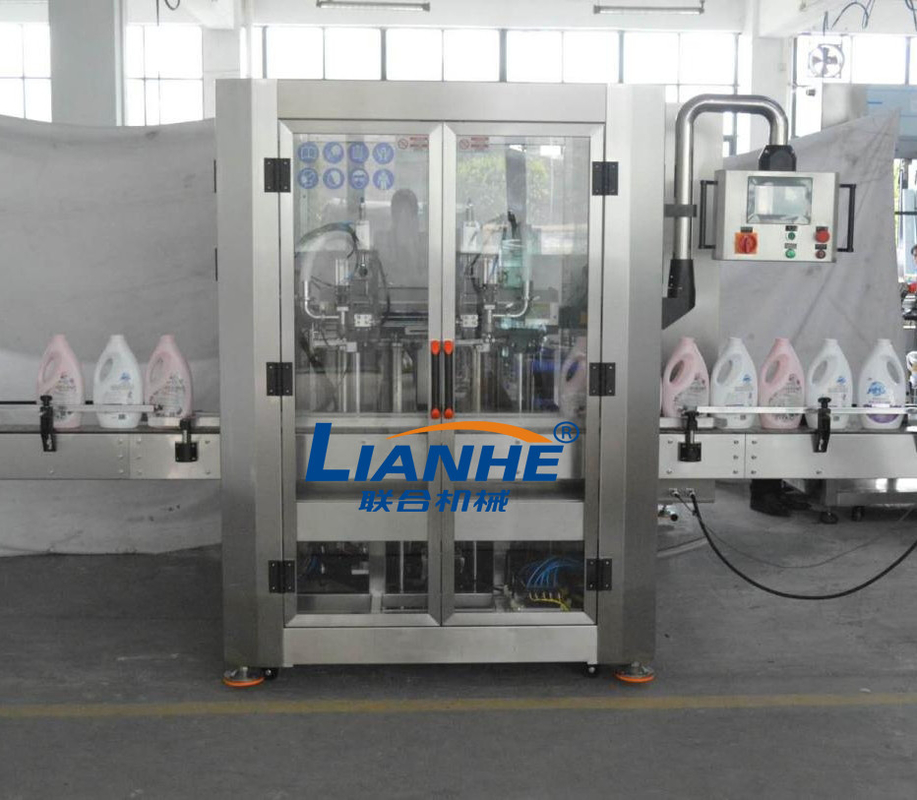

2 / 4 Nozzles Tracking Type Filling Liquid Bottle High Speed Filling Machine
Automatic 2 Heads Servo Motor Liquid Filling Machine For Essential Mouthwash
Product Description:
The machine is servo driven, which helps to maintain accuracy and speed, you only need to enter the ideal filling volume and speed in the HMI interface, this is the significance of the servo motor. At the top of the machine, we use the mixing hopper, which makes the equipment suitable for liquids and pastes. The mixing motor drives the mixing paddle, which makes the filling materials have a strong fluidity. It can fill different bottles, we set a scale in the adjustment part, used to record the position relationship of different specifications of bottles to the equipment. This greatly enhances the convenience of the device.
Product Application:
The automatic liquid filling capping and labeling machine is used to filling, cap screwing and label stikering of liquid products, such as liquid soap, detergent, cream, lotion, etc. The automatic line is suitable for most shape of bottles and caps.
Product Parameters:
| Filling Nozzle | 1 Nozzle | 2 Nozzle | 4 Nozzle | 6 Nozzle | 8 Nozzle | 10 Nozzle | 12 Nozzle |
| Filling Speed | 10 bot/min | 25 bot/min | 30 bot/min | 40 bot/min | 50 bot/min | 60 bot/min | 70 bot/min |
| Filling Volume | 5-150ml, 25-250ml, 50-500ml, 100-1000ml, 250-2500ml, 500-5000ml | ||||||
| Filling Accuracy | ±0.5-1% | ||||||
| Power Voltage | 220V/380V/410V/440V, 50/60Hz, single Phase | ||||||
| Air Consumption | 0.5-0.8 Mpa | ||||||
| Remark |
More options can be customized according to your requirements.
|
||||||
Product Advantages:
- Filling Nozzle: 1 nozzle, 2 nozzles, 4 nozzles, 6, 8, 10, 12, ..... etc, customized available for filling nozzle quantity based on your daily output.

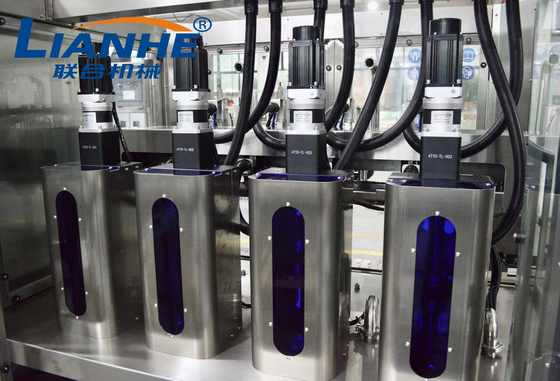

- Servo motor control filling, ensure stable perfomance and high filling accuracy, reach to 0.5-1% precision.
- Electric sensor: only use imported brand such as Leuze or Sick, to control bottle blocking and clamping device, automatic material feeding, no bottle no filling, etc.
- Use automatic volumetric piston pump executive filling ,it is applicable for various viscosity liquid ,high precision; fast disassembly institutions of pump ,easy to clean and disinfect.
- Filling capacity is easy to adjust ,all metering pump filling quantity can be adjusted one time , can also be aimed at each pump on micro-measurement adjustment .Simple operation and quick adjustment.
- Filling head equipped with pneumatic drip tight device.
- The machine can be used for various specifications of bottles, adjust the simple, can be finished in a short time.
Product Details:
Our Servers:
We provide Turn-key project service to customer.
1. Factory Layout design;
2. Factory Decoration based on GMP standard;
3. Formula of products;
4. Raw material etc;
5. Machine design, whole production line from A to Z;
6. Shipping service, FOB, CFR, CIF etc;
7. Installation service. Training service, Mainte
