Multifunctional SUS304 Hand Sanitiser Manufacturing machine for mixing liquid soap
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | CE , ISO , SGS , TUV |
| Model Number: | LH-PMC 2000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Normally packaged in wooden case or wrapping film, also can be customized |
| Delivery Time: | 20-30 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 20 Set/Sets per Month |
|
Detail Information |
|||
| Capacity: | 50-6000L (Customized) | Material: | SUS304/SUS316(Material Contact Part) |
|---|---|---|---|
| Mixing Speed: | 0-65 Rpm | Homogenizing Speed: | 3000 Rpm |
| Motor Brand: | SIEMENS Or ABB | Key Selling Points: | Low Maintenance Cost |
| High Light: | Multifunctional Hand Sanitiser Manufacturing Machine,Liquid Soap Hand Sanitiser Manufacturing Machine,SUS304 Machine For Mixing Liquid Soap |
||
Product Description

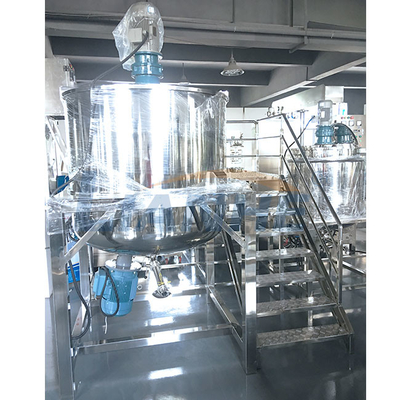

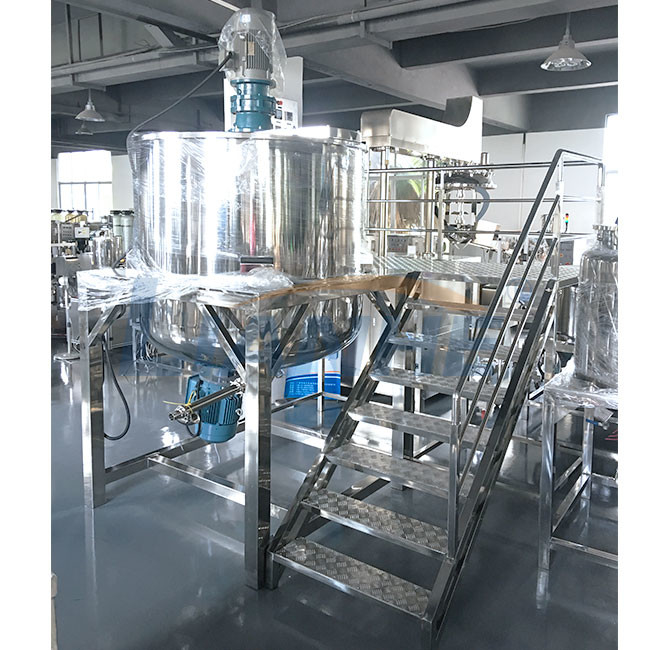

2000L Homogenizer Emulsifier Mixer Hand Sanitizer Shower Gel Mixing Tank
Product Description:
This machine is widely applied in chemical, pharmaceutical, beverage, food and process industries. Our high speed mixing tank can make according to customer's requirement for the structure, single-layer, double-layer(jacket) and three-layer(insulation layer) or make limpet coil(inside or external ) to heating and cold.Also we design the different type agitator for the different raw material ,the capacity we can make from 50L to 5000L.
Product Application:
This machine is applicable in cosmetic, daily chemical, food, pharmaceutical, agricultural industries such as shampoo, hand sanitizer, liquid soap, detergent, disinfectant, beverage, fruit juice, mayonnaise, body cream, pesticide, fertilizer, chemical liquid, etc. products.
Product Parameters:
|
Model |
Capacity (L) |
Agitator |
Homiogenizer |
Heating system |
|||
|
power (kw) |
speed (rpm) |
power (kw) |
speed (rpm) |
Electric heating (kw) |
Steam heating (Mpa) |
||
|
PMC-50 |
50 |
0.75 |
0-65 |
3 |
3000 |
6 |
Steam heating energy conservation and environmental protection, selected according to need |
|
PMC-100 |
100 |
1.5 |
0-65 |
4 |
3000 |
9 |
|
|
PMC-150 |
150 |
1.5 |
0-65 |
4 |
3000 |
12 |
|
|
PMC-200 |
200 |
1.5 |
0-65 |
4 |
3000 |
12 |
|
|
PMC-300 |
300 |
1.5 |
0-65 |
5.5 |
3000 |
18 |
|
|
PMC-500 |
500 |
2.2 |
0-65 |
7.5 |
3000 |
27 |
|
|
PMC-1000 |
1000 |
4 |
0-65 |
11 |
3000 |
36 |
|
|
PMC-1500 |
1500 |
5.5 |
0-65 |
15 |
3000 |
45 |
|
|
PMC-2000 |
2000 |
7.5 |
0-65 |
15 |
3000 |
recommend steam heating |
|
|
PMC-3000 |
3000 |
11 |
0-65 |
15 |
3000 |
||
|
PMC-5000 |
5000 |
11 |
0-65 |
22 |
3000 |
||
|
The parameters for reference only, all the machines can be customized accordingly. |
|||||||
Product Features:
1. The blending system adopts single-direction or double direction s cramping blending and frequency conversion speed adjustment, so as to satisfy product of different technological requirements
2. According to technological requirements, the materials can be heated or cooled. The heating method can be chosen steam or electric heating according to customer.
3. Various forms of blending vanes are suitable for production of different types of products.
4. Made of imported SUS304 or SUS306L stainless steel. The tank body and pipe are carried out mirror polishing.
5. Bottom installation type dispersing head and FLUKO pipeline type emulsifying head are optional to speedup dissolution and emulsification of materials.

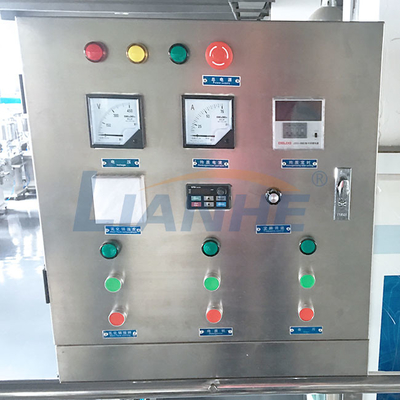

6. The stainless steel electric control cabinet can completely supervise the operation of equipment, and display data, such temperature and blending rotation speed etc.
Product Details:

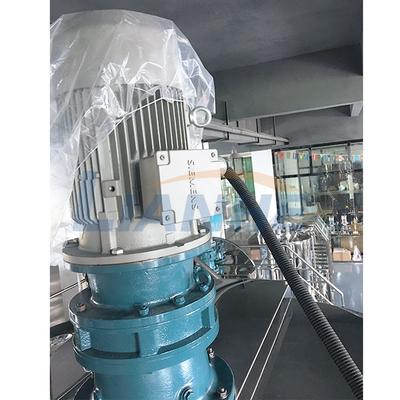

1. Motor brand: Siemens or ABB
2. Material: SUS304&316L
3. Stirring method: wall-mounted stirring, with Teflon scraper
4. Control method: button control
5. Electrical components: Schneider, Siemens and other international brands
Our Servers:
We provide Turn-key project service to customer.
1. Factory Layout design;
2. Factory Decoration based on GMP standard;
3. Formula of products;
4. Raw material etc;
5. Machine design, whole production line from A to Z;
6. Shipping service, FOB, CFR, CIF etc;
7. Installation service. Training service, maintain.
