Auto 2 Nozzles Liquid Filling Machine 10-100 Bottles/ Min Leakproof
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | CE , ISO , SGS , TUV |
| Model Number: | LH-AF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Packaging Details: | Normally packaged in wooden case or wrapping film, also can be customized |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 30 Sets per Month |
|
Detail Information |
|||
| Voltage: | According To Customer | Filling Volume: | 5-150ml, 25-250ml, 50-500ml, 100-1000ml, 250-2500ml, 500-5000ml |
|---|---|---|---|
| Filling Nozzle: | 1, 2, 4, 6, 8, 10, 12 Nozzles | Material: | SUS 304/316L |
| Application: | Shampoo,liquid Soap,liquid Detergent,hand Washing, Etc. | Key Selling Points: | High Productivity |
| High Light: | 10 Bottles/Min Liquid Filling Machine,100 Bottles/Min Liquid Filling Machine,Leakproof 2 Nozzles Liquid Filling Machine |
||
Product Description

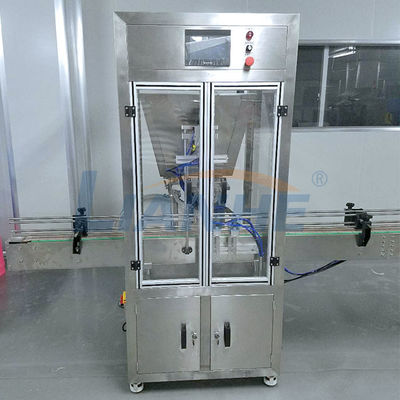

2 Nozzles Automatic Liquid Filling Machine Essential Lotion Filling Line
Product Description:
The fully automatic filling machine is designed to fill bottles and jars with products of various viscosity, ranging from water thin liquids to thick creams. They are used in the cosmetic, food, pharmaceutical, oil and specialty industries. These inline piston filling machines come complete with: two to twelve fill heads, a variable speed drive conveyor, adjustable heavy duty stainless steel frame, an easy to operate control panel.
Product Application:
The automatic liquid filling capping and labeling machine is used to filling, cap screwing and label stikering of liquid products, such as liquid soap, detergent, cream, lotion, etc. The automatic line is suitable for most shape of bottles and caps.
Product Parameters:
| Filling Nozzle | 1 Nozzle | 2 Nozzle | 4 Nozzle | 6 Nozzle | 8 Nozzle | 10 Nozzle | 12 Nozzle |
| Filling Speed | 20 bot/min | 25 bot/min | 30 bot/min | 40 bot/min | 50 bot/min | 60 bot/min | 70 bot/min |
| Filling Volume | 10-150ml, 25-250ml, 50-500ml, 100-1000ml, 250-2500ml, 500-5000ml | ||||||
| Filling Accuracy | ±0.5-1% | ||||||
| Power Voltage | 220V/380V/410V/440V, 60Hz, 3 Phase | ||||||
| Air Consumption | 0.5-0.7Mpa | ||||||
| Remark |
1. The filling speed based on 500ml/bottle water.
2. More options can be customized according to your requirements.
|
||||||
Product Advantage:
1. 304 Stainless steel heavy duty stainless steel welded C frame.
2. All parts contact with material is SUS316, sanitary, Teflon, Viton and hoses per your requirements.
3. Real time adjustability.
4. No bottle no fill, PLC control
5. Accurate filling volume, within ±1% and a total bottle counter.
6. Easy to maintain, no special tools are required.
7. Special seals or hoses by order.
8. Blocked nozzles for products that tend to string and drip.
9. Diving nozzles for bottom up filling of foaming products.
10. Bottle mouth localizer.
11. The filling head can also be added to suit your special need.
Product Details:
1. Use automatic volumetric piston pump executive filling, it is applicable for various viscosity liquid ,high precision; fast disassembly institutions of pump, easy to clean and disinfect.
2. PLC control system, frequency control, high degree of automation.
3. No bottles not filling automatic counting functions.
4. Filling capacity is easy to adjust, all metering pump filling quantity can be adjusted one time, can also be aimed at each pump on micro-measurement adjustment. Simple operation and quick adjustment.
5. Filling head equipped with pneumatic drip tight device.
6. The machine can be used for various specifications of bottles, adjust the simple, can be finished in a short time.
Our Servers:
We provide Turn-key project service to customer.
1. Factory Layout design;
2. Factory Decoration based on GMP standard;
3. Formula of products;
4. Raw material etc;
5. Machine design, whole production line from A to Z;
6. Shipping service, FOB, CFR, CIF etc;
7. Installation service. Training service, Mainte.
