Stable 60Hz Laundry Detergent Filling Machine , Rustproof Shampoo Bottle Filler
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | CE , ISO , SGS , TUV |
| Model Number: | LH-AF6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Packaging Details: | Normally packaged in wooden case or wrapping film, also can be customized |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, D/A, D/A, Cash |
| Supply Ability: | 30 Sets per Month |
|
Detail Information |
|||
| Voltage: | 220V/110V/380V Customized As Country | Filling Volume: | 5-150ml, 25-250ml, 50-500ml, 100-1000ml, 250-2500ml, 500-5000ml |
|---|---|---|---|
| Filling Nozzle: | 1, 2, 4, 6, 8, 10, 12, 14 Nozzles | Filling Speed: | 10-100 Bottles/min Customized |
| Control: | SIEMENS PLC Touch Screen | Key Selling Point: | High Accuracy, Stable Performance |
| High Light: | Stable Laundry Detergent Filling Machine,60Hz Laundry Detergent Filling Machine,Rustproof Shampoo Bottle Filler |
||
Product Description
Liquid Filling Machine Fully Automatic Bottle Filling Capping Labeling
Product Description:

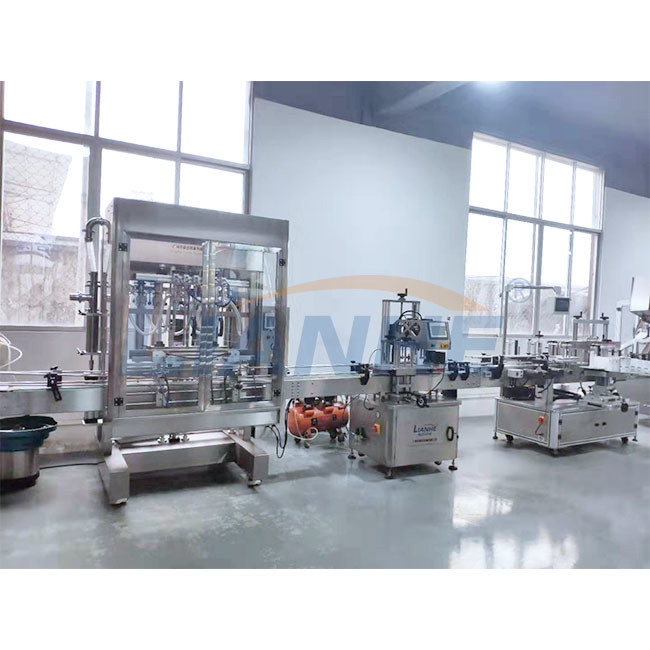

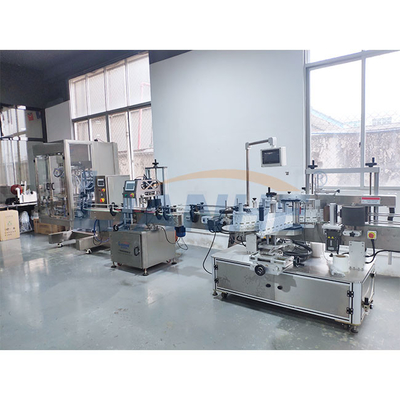

The automatic liquid filling capping and labeling machine is used to filling, cap screwing and label stikering of liquid products, such as liquid soap, detergent, cream, lotion, etc. The automatic line is suitable for most shape of bottles and caps.
Full automatic plastic/glass bottle filling capping labeling line for liquid or viscous product, such as detergent, liquid soap, shampoo, hand sanitizer, hair dye, cream, ointment, paste, lotion, gel, etc.
Product Parameters:
Automatic Filling machine is controlled by computer via an auxiliary device (such as a cylinder block bottle system, stop bottles system, lifting system, feeding control, counting devices, etc.) to complete the automatic filling in the absence of personal operating conditions.
| Filling Nozzle | 1 Nozzle | 2 Nozzle | 4 Nozzle | 6 Nozzle | 8 Nozzle | 10 Nozzle | 12 Nozzle |
| Filling Speed | 20 bot/min | 25 bot/min | 30 bot/min | 40 bot/min | 50 bot/min | 60 bot/min | 70 bot/min |
| Filling Volume | 10-150ml, 25-250ml, 50-500ml, 100-1000ml, 250-2500ml, 500-5000ml | ||||||
| Filling Accuracy | ±0.5-1% | ||||||
| Power Voltage | 220V/380V/410V/440V, 60Hz, 3 Phase | ||||||
| Air Consumption | 0.5-0.7Mpa | ||||||
| Remark |
1. The filling speed based on 500ml/bottle water.
2. More options can be customized according to your requirements.
|
||||||
Product Features:
* Adopts PLC and human machine interface technology.
* Match photoelectric tracking switch, integrates electric and pneumatic functions into one.
* With reasonable design, stable performance, accurate quality, glass table surface.
* Automatic bottle feeding, and steady operation without noise.
* Electric speed control to the filling speed and filling volume, convenient maintenance and cleaning.
* The new type filling equipment is the best choice for the realization of automatic production.
Product Application:
This production line is suitable for filling and capping semi-liquid products without or with small particles: such as sweet chili sauce, beef paste, bean sauce, mushroom sauce, tomato sauce, peanut butter, jam, honey, sauce, shrimp paste, shampoo, body wash, liquid detergent, dishwashing liquid, etc.
Product Advantages:
Filling Nozzles
2/4/6/8/10 Customizable no-drop filling nozzles. Different sizes to fit different bottles, easy to be assembled.
All the material contact part is made of stainless steel 316L.
Various Filling Range
10-150ml, 25-250ml, 50-500ml, 100-1000ml, 250-2500ml, 500-5000ml. With adjustable speed conveyor belt, and high strength stainless steel frame, firm and wear-used.

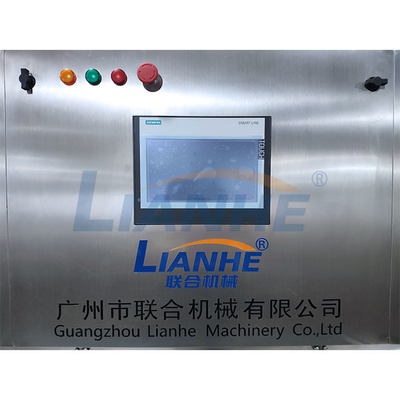

PLC Control System
Imported brands for PLC touch screen control system, high class appearance, easier and faster for operation. Filling
ANTI-DROP Filling Nozzles: 2/4/6/8/10/12 heads
Equipped with SUS316L long special designed no-drop filling nozzles, which can protect the cylinder on the top being damaged material; Design different size of filling nozzles
SERVO MOTOR Control Filling Volume
SUS304 frame, Round SUS316L PISTONS,TECO servo motor control, easy to adjust the volume, just need to input the volume needed in touch screen
Product Details:
Highly precised piston pump
Piston pump filling nozzle
8 head filling (filling nozzle can be customized to 4 /6/10/12)
Filling nozzle made of SS316L
304/316 Stainless steel high precision filling nozzle.
Filling volume adjustable in fine rank, same liquid level after filling.
All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean.
304/316 stainless steel filling pump
Our Servers:
We provide Turn-key project service to customer.
1. Factory Layout design;
2. Factory Decoration based on GMP standard;
3. Formula of products;
4. Raw material etc;
5. Machine design, whole production line from A to Z;
6. Shipping service, FOB, CFR, CIF etc;
7. Installation service. Training service, Mainte.
