440V Auto Bottle Filling Machine , Anti Drip Piston Filling Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | CE , ISO , SGS , TUV |
| Model Number: | LH-AF2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Packaging Details: | Normally packaged in wooden case or wrapping film, also can be customized |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, , D/A, D/P, Cash |
| Supply Ability: | 30 Sets per Month |
|
Detail Information |
|||
| Filling Nozzle: | 1 - 14 Nozzles (customized Accordingly) | Filling Volume: | 5-150ml, 25-250ml, 50-500ml, 100-1000ml, 250-2500ml, 500-5000ml |
|---|---|---|---|
| Control: | SIEMENS PLC Touch Screen | Drive: | Servo System |
| Material: | SUS 304L 316L | Packaging Container Lifting Structure: | Pneumatic Lifting |
| High Light: | 440V Auto Bottle Filling Machine,Piston Auto Bottle Filling Machine,Anti Drip Piston Filling Equipment |
||
Product Description

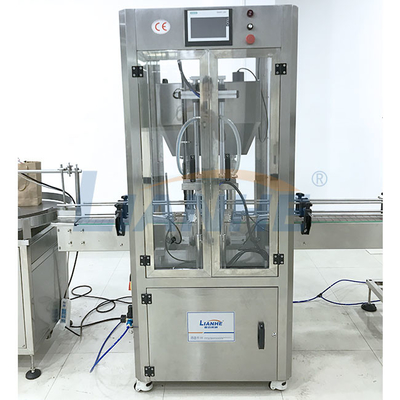

Automatic 2 Heads Servo Motor Liquid Filling Machine For Essential Mouthwash
Product Description:
This filling machine adopts PLC and human-machine interface technology. Match photoelectric tracking switch. The machine integrates electric and pneumatic functions, reasonable design, stable performance, accurate quality, glass table, automatic bottle loading, smooth operation without noise, electric speed regulation of filling speed and filling volume, and convenient maintenance and cleaning. The new filling equipment is the best choice for automatic production.
Product Application:

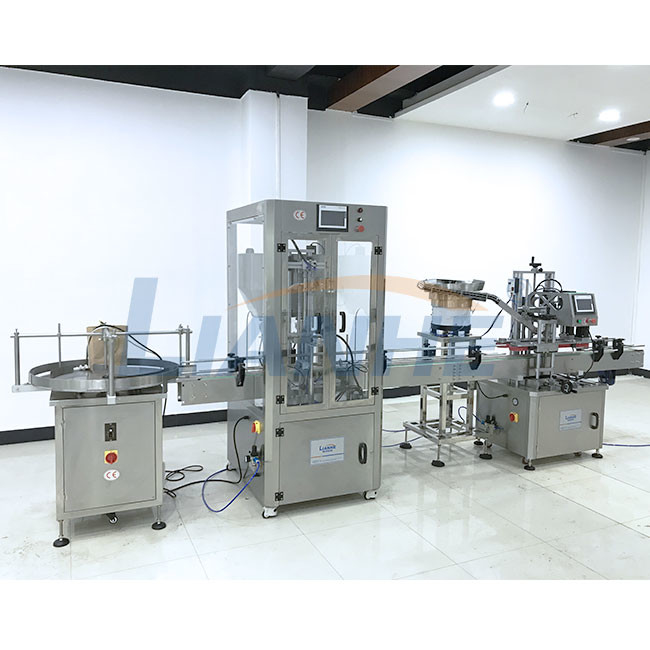

The automatic liquid filling capping and labeling machine is used to filling, cap screwing and label stikering of liquid products, such as liquid soap, detergent, cream, lotion, etc. The automatic line is suitable for most shape of bottles and caps.
Product Parameters:
| Filling Nozzle | 1 Nozzle | 2 Nozzle | 4 Nozzle | 6 Nozzle | 8 Nozzle | 10 Nozzle | 12 Nozzle |
| Filling Speed | 10 bot/min | 25 bot/min | 30 bot/min | 40 bot/min | 50 bot/min | 60 bot/min | 70 bot/min |
| Filling Volume | 5-150ml, 25-250ml, 50-500ml, 100-1000ml, 250-2500ml, 500-5000ml | ||||||
| Filling Accuracy | ±0.5-1% | ||||||
| Power Voltage | 220V/380V/410V/440V, 50/60Hz, single Phase | ||||||
| Air Consumption | 0.5-0.8 Mpa | ||||||
| Remark |
More options can be customized according to your requirements.
|
||||||
Product Features:
1. PLC control of filling machine.
2. The surface of the filling machine is made of high quality stainless steel.
3. The filling adopts a positive displacement plunger pump (when the filling volume varies greatly, the corresponding pump body needs to be replaced), which can be adjusted as a whole for all pumps, and can also be fine-tuned for a single pump, which is fast and convenient.
4. PLC control system, color touch screen display, filling volume can be adjusted directly on the touch screen, easy to operate.
5. The hopper has its own heating and stirring system, which makes the product more uniform, with better fluidity and easy filling.
6. It has the functions of no bottle, no filling, frequency conversion speed regulation, and automatic counting.
7. The machine conforms to GMP standard.
Product Details:
1. Filling Nozzles: 1/2/4/6/8/10/12 Customizable no-drop filling nozzles. Different sizes to fit different bottles, easy to be assembled.All the material contact part is made of stainless steel 316L.
2. Various Filling Range: 10-150ml, 25-250ml, 50-500ml, 100-1000ml, 250-2500ml, 500-5000ml. With adjustable speed conveyor belt, and high strength stainless steel frame, firm and wear-used.
3. Servo Piston Motor: Servo motor control filling, higher filling accuracy and more stable performance.
4. PLC Control System: PLC touch screen control system, high class appearance, easier and faster for operation.
Our Servers:
We provide Turn-key project service to customer.
1. Factory Layout design;
2. Factory Decoration based on GMP standard;
3. Formula of products;
4. Raw material etc;
5. Machine design, whole production line from A to Z;
6. Shipping service, FOB, CFR, CIF etc;
7. Installation service. Training service, Mainte
