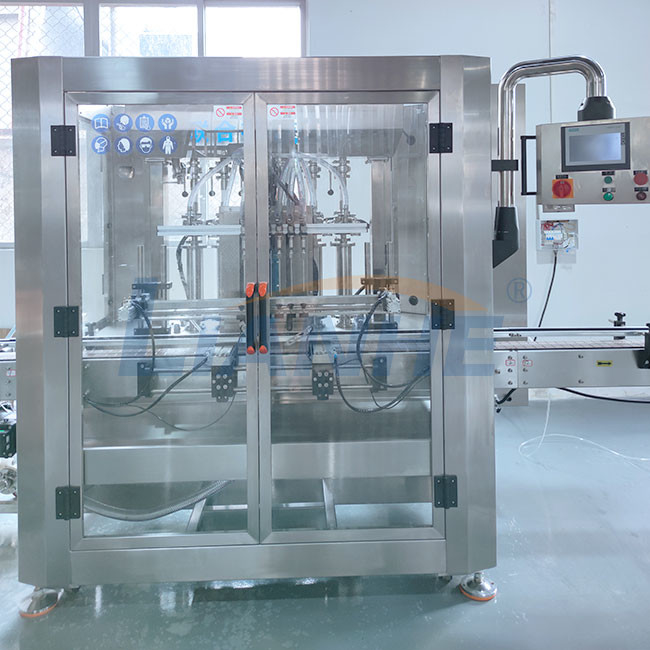

SUS316L Water Shampoo Bottle Filling Machine Automatic 0.5-0.7Mpa
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | CE , ISO , SGS , TUV |
| Model Number: | LH-AF6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Packaging Details: | Normally packaged in wooden case or wrapping film, also can be customized |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, D/A, D/A, Cash |
| Supply Ability: | 30 Sets per Month |
|
Detail Information |
|||
| Voltage: | 220V/110V Customized As Country | Filling Volume: | 5-150ml, 25-250ml, 50-500ml, 100-1000ml, 250-2500ml, 500-5000ml |
|---|---|---|---|
| Filling Nozzle: | 1, 2, 4, 6, 8, 10, 12, 14 Nozzles | Filling Speed: | 10-100 Bottles/min Customized |
| Material: | SUS 304/316L | Control: | SIEMENS PLC Touch Screen |
| High Light: | SUS316L Shampoo Bottle Filling Machine,0.5Mpa Shampoo Bottle Filling Machine,0.7Mpa Automatic Water Bottle Filling Machine |
||
Product Description
Automatic Liquid Filling Machine Liquid Soap Cream Piston Filler
Product Description:
Automatic Bottle Filling, Capping, Labeling Machine:
Automatic liquid bottle filling capping & labeling machine controlled by pneumatic and electric.
For filling, it through the cylinder's movement of forward and backward to make the piston which is located in the cylinder do reciprocating movement.
Mainly use in filling low viscosity or liquid products, like lotion, liquid laundry detergent, fabric softener, shampoo, hand wash liquid soap, bath shower, dish washing liquid, etc.
Filling volume from 50ml to 5000ml optional.
Filling nozzles can be customized with 4 heads, 6 heads, 8 heads, 10 heads and 12 heads anti-drop type, different size as your request.
Product Parameters:
Automatic Filling machine is controlled by computer via an auxiliary device (such as a cylinder block bottle system, stop bottles system, lifting system, feeding control, counting devices, etc.) to complete the automatic filling in the absence of personal operating conditions.
| Filling Nozzle | 1 Nozzle | 2 Nozzle | 4 Nozzle | 6 Nozzle | 8 Nozzle | 10 Nozzle | 12 Nozzle |
| Filling Speed | 20 bot/min | 25 bot/min | 30 bot/min | 40 bot/min | 50 bot/min | 60 bot/min | 70 bot/min |
| Filling Volume | 10-150ml, 25-250ml, 50-500ml, 100-1000ml, 250-2500ml, 500-5000ml | ||||||
| Filling Accuracy | ±0.5-1% | ||||||
| Power Voltage | 220V/380V/410V/440V, 60Hz, 3 Phase | ||||||
| Air Consumption | 0.5-0.7Mpa | ||||||
| Remark |
1. The filling speed based on 500ml/bottle water.
2. More options can be customized according to your requirements.
|
||||||
Product Features:
1. Use automatic volumetric piston pump executive filling, it is applicable for various viscosity liquid ,high precision; fast disassembly institutions of pump, easy to clean and disinfect.
2. PLC control system, frequency control, high degree of automation.
3. No bottles not filling automatic counting functions.
4. Filling capacity is easy to adjust, all metering pump filling quantity can be adjusted one time, can also be aimed at each pump on micro-measurement adjustment. Simple operation and quick adjustment.
5. Filling head equipped with pneumatic drip tight device.
6. The machine can be used for various specifications of bottles, adjust the simple, can be finished in a short time.
Product Application:
The automatic liquid filling capping and labeling machine is used to filling, cap screwing and label stikering of liquid products, such as liquid soap, detergent, cream, lotion, etc. The automatic line is suitable for most shape of bottles and caps.
Product Advantages:

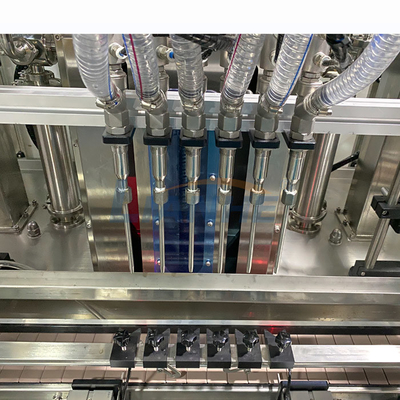

Filling Nozzles
2/4/6/8/10 Customizable no-drop filling nozzles. Different sizes to fit different bottles, easy to be assembled.
All the material contact part is made of stainless steel 316L.
Various Filling Range
10-150ml, 25-250ml, 50-500ml, 100-1000ml, 250-2500ml, 500-5000ml. With adjustable speed conveyor belt, and high strength stainless steel frame, firm and wear-used.

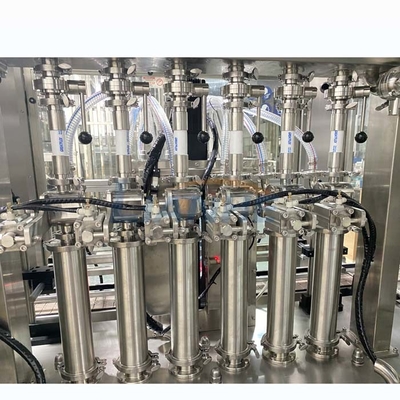

Servo Piston Motor
Imported Servo piston driven motor to ensure higher filling accuracy and more steady performance. Easier to adjust the filling volume, just input via touch screen.

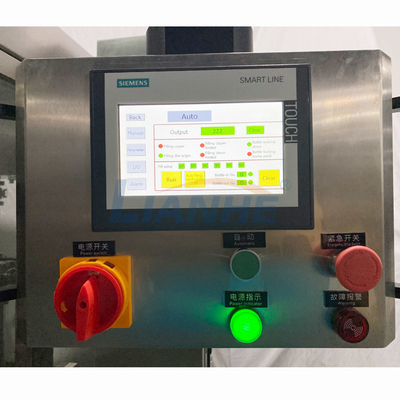

PLC Control System
Imported brands for PLC touch screen control system, high class appearance, easier and faster for operation. Filling
Product Details:
1. Use automatic volumetric piston pump executive filling, it is applicable for various viscosity liquid ,high precision; fast disassembly institutions of pump, easy to clean and disinfect.
2. PLC control system, frequency control, high degree of automation.
3. No bottles not filling automatic counting functions.
4. Filling capacity is easy to adjust, all metering pump filling quantity can be adjusted one time, can also be aimed at each pump on micro-measurement adjustment. Simple operation and quick adjustment.
5. Filling head equipped with pneumatic drip tight device.
6. The machine can be used for various specifications of bottles, adjust the simple, can be finished in a short time.
Our Servers:
We provide Turn-key project service to customer.
1. Factory Layout design;
2. Factory Decoration based on GMP standard;
3. Formula of products;
4. Raw material etc;
5. Machine design, whole production line from A to Z;
6. Shipping service, FOB, CFR, CIF etc;
7. Installation service. Training service, Mainte.
