5.5KW SUS304 Cosmetic Cream Mixing Machine , Durable Vacuum Mixer Homogenizer
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | CE , ISO , SGS , TUV |
| Model Number: | LH-VME200 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Packaging Details: | Normally packaged in wooden case or wrapping film, also can be customized |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T, L/C, D/A |
| Supply Ability: | 20 Set/Sets per Month |
|
Detail Information |
|||
| Capacity: | 5L - 5000L | Material: | Stainless Steel 304 / SUS316L |
|---|---|---|---|
| Control: | Button Panel/ PLC Touch Screen | Homogenizer: | Top , Bottom Or Circulation Homogenizer |
| Homogenizer Motor: | Siemens Or ABB Only | Stirring Motor: | Siemens Or ABB Only |
| High Light: | 5.5KW Cosmetic Cream Mixing Machine,SUS304 Cosmetic Cream Mixing Machine,Durable Vacuum Mixer Homogenizer |
||
Product Description
200L Cosmetic Cream Facial Cleanser Vacuum Emulsifying Mixer Stainless Steel Tank
product description:
The product is mainly applied in such industries as daily chemical care products, biopharmaceutical industry, food industry,paint and ink, nanometer materials, petrochemical industry, printing and dyeing auxiliaries, pulp & paper, pesticide, fertilier,plastic & rubber, electrics and electronics, fine chemical industry, etc. The emulsifying effect is more prominent for materialsof high base viscosity and high solid content.
product composition:

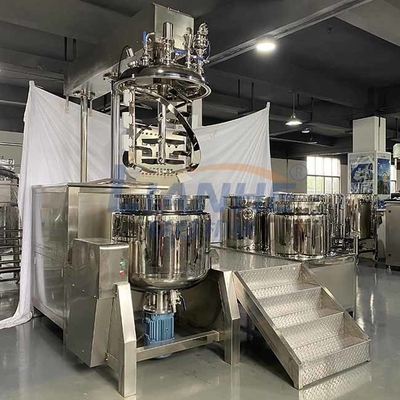

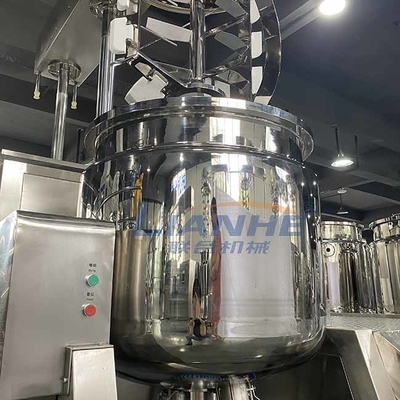

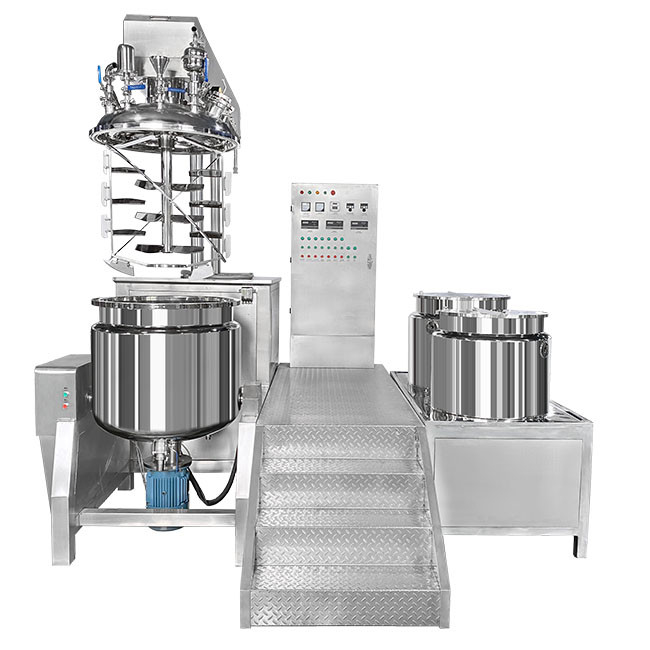

The vacuum emulsifying mixer is mainly composed of water pot, oil pot, emulsifying pot, vacuum system, lifting system (optional), electric control system (PLC is optional), operation platform, etc.
Product parameters:
| Capacity (L) | Homogenizer | Agitator | Vacuum pump | Heating system | ||||
| power (kw) | speed (rpm) | power (kw) | speed (rpm) | power (kw) | Limit vacuum | Electric heating (kw) | Steam heating (Mpa) | |
| 5 | 0.55 | 0-3600 | 0.4 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 10 | 1.1 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 20 | 1.5 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 9 | 0.2 |
| 50 | 3 | 0-3600 | 0.75 | 0-65 | 0.75 | -0.1 | 12 | 0.2 |
| 100 | 4 | 0-3600 | 1.5 | 0-65 | 1.5 | -0.1 | 24 | 0.2 |
| 200 | 5.5 | 0-3600 | 1.5 | 0-65 | 2.2 | -0.1 | 28 | 0.2 |
| 300 | 7.5 | 0-3600 | 3 | 0-65 | 2.2 | -0.1 | 32 | 0.2 |
| 500 | 11 | 0-3600 | 4 | 0-65 | 4 | -0.1 | 50 | 0.2 |
| 1000 | 15 | 0-3600 | 5.5 | 0-65 | 4 | -0.1 | 54 | 0.2 |
| 2000 | 18.5 | 0-3600 | 7.5 | 0-65 | 5.5 | -0.1 | recommend steam heating | 0.2 |
| 5000 | 22.5 | 0-3600 | 15 | 0-65 | 7.5 | -0.1 | 0.2 | |
| The parameters for reference only, all the machines can be customized accordingly. | ||||||||
After the materials are mixed and reacted in the water pot and oil pot by heating and stirring, they are sucked into the emulsification pot by the vacuum pump, and stirred through the center of the upper part of the emulsification pot. The sticky material causes the material to be taken to continuously generate a new interface, and then through the shearing, compression and folding of the blade and the rotating blade, it is stirred and mixed to flow down to the homogenizer below the pot body, and the material is then rotated at a high speed. In the process of strong shearing, impacting, turbulent flow, etc. generated between the cutting wheel and the fixed cutting sleeve, the material is cut in the shearing seam and quickly broken into particles of 200nm-2um. Because the emulsification pot is in a vacuum state, the material The air bubbles generated during the stirring process are evacuated in time.
Our Service:
As the vacuum emulsifying mixers manufacturer, we customize machines to meet customer needs. We can send our skilled engineers to the customer’s factory to install the machine correctly. We also provide a one-year warranty for all our machines and after-sales service.
