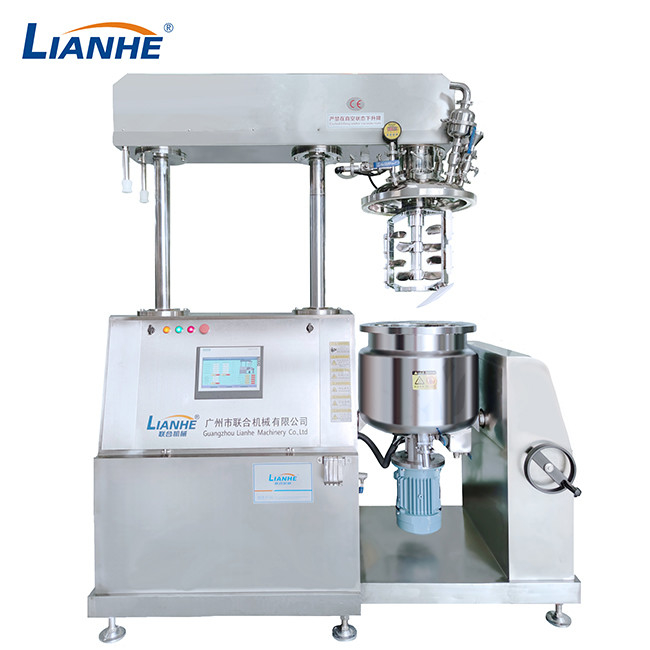

Hydraulic Lifting Vacuum Emulsifier Mixer Machine Automatic 50L
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | CE , ISO , SGS , TUV |
| Model Number: | LH-VME50 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Packaging Details: | Normally packaged in wooden case or wrapping film, also can be customized |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T, L/C, D/A |
| Supply Ability: | 20 Set/Sets per Month |
|
Detail Information |
|||
| Capacity: | 5L - 5000L | Material: | SUS304, SUS316L |
|---|---|---|---|
| Key Selling Points: | Long Service Life | Stirring Speed: | 0-65 Rpm |
| Homogenizing Speed: | 0-3600 Rpm | Function: | Emulsion, Homogenizing, Mixing, Heating, Vacuum |
| High Light: | Hydraulic Lifting Vacuum Emulsifier Mixer,Automatic Vacuum Emulsifier Mixer,50L Emulsion Mixer Machine |
||
Product Description
50L Hydraulic Lifting Vacuum Emulsifying Mixer Face Cream Body Lotion
Product Description:
The pot cover is of automatic rising type. The material is directly drawn into the emulsifying boiler from oil boiler and water boiler. The discharge is based on the turning of the emulsifying boiler. And the heating system is electric heating and steam heating by the heating pipe, so the temperature is controlled automatically. Put the cool water into the intercalated bed so as to cool the material, which is simple and convenient (there is a warm layer outside the intercalated bed). The homogenizer and the stirring blades can work together or separately. The material sliming, emulsification, mixing, dispersing, etc. can be finished in a short time. Some parts of the machine are made of high-quality stainless steel (316L material will be adopted for medical use; the interior surface adopts mirror polish, vacuum agitating device is hygienically made according to the normal hygiene standard of GMP and is the most idea production equipment).
Product Structure:

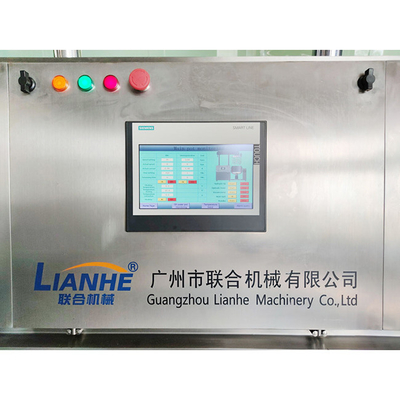

The vacuum emulsifying mixer consists of vacuum-resistant vessel with jacket for heating and cooling. Equipped with high speed homogenizer, scraping agitator, vacuum pump, and hydraulic pump for lifting, heating & cooling system.A vacuum emulsifying mixer comprises many parts, including electrical control system, a vacuum device, a heating, and cooling system, a temperature control system, and pots for oil, emulsifying, and water. The control panel is where all the mixer's operations carry out . The controls include the lighting power system, the main pot's constant functioning, control of the main pot's stirring operation, access to the vacuum system's operation, and the water and oil pot's mixing and heating process.
Product parameters:
| Capacity (L) | Homogenizer | Agitator | Vacuum pump | Heating system | ||||
| power (kw) | speed (rpm) | power (kw) | speed (rpm) | power (kw) | Limit vacuum | Electric heating (kw) | Steam heating (Mpa) | |
| 5 | 0.55 | 0-3600 | 0.4 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 10 | 1.1 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 20 | 1.5 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 9 | 0.2 |
| 50 | 3 | 0-3600 | 0.75 | 0-65 | 0.75 | -0.1 | 12 | 0.2 |
| 100 | 4 | 0-3600 | 1.5 | 0-65 | 1.5 | -0.1 | 24 | 0.2 |
| 200 | 5.5 | 0-3600 | 1.5 | 0-65 | 2.2 | -0.1 | 28 | 0.2 |
| 300 | 7.5 | 0-3600 | 3 | 0-65 | 2.2 | -0.1 | 32 | 0.2 |
| 500 | 11 | 0-3600 | 4 | 0-65 | 4 | -0.1 | 50 | 0.2 |
| 1000 | 15 | 0-3600 | 5.5 | 0-65 | 4 | -0.1 | 54 | 0.2 |
| 2000 | 18.5 | 0-3600 | 7.5 | 0-65 | 5.5 | -0.1 | recommend steam heating | 0.2 |
| 5000 | 22.5 | 0-3600 | 15 | 0-65 | 7.5 | -0.1 | 0.2 | |
| The parameters for reference only, all the machines can be customized accordingly. | ||||||||
The vacuum emulsifying mixer are mainly used to make high viscosity emulsions, especially creams, ointments and lotions. The functions of heating, cooling, dissolving, emulsification and vacuum defoaming can be completed at one time with an emulsifier; the raw materials can be fully pulverized, mixed, emulsified and homogenized to increase the gloss and stability of the product.
After the materials are mixed and reacted in the water pot and oil pot by heating and stirring, they are sucked into the emulsification pot by the vacuum pump, and stirred through the center of the upper part of the emulsification pot. The sticky material causes the material to be taken to continuously generate a new interface, and then through the shearing, compression and folding of the blade and the rotating blade, it is stirred and mixed to flow down to the homogenizer below the pot body, and the material is then rotated at a high speed. In the process of strong shearing, impacting, turbulent flow, etc. generated between the cutting wheel and the fixed cutting sleeve, the material is cut in the shearing seam and quickly broken into particles of 200nm-2um. Because the emulsification pot is in a vacuum state, the material The air bubbles generated during the stirring process are evacuated in time.
Product Specifications:
• Capacity: 5L, 10L, 15L, 25L, 30L, 50L, 100L, 150L, 200L, 250L, 350L, 500L, 650L, 1000L, 1500L, 2000L,3000L,5000L

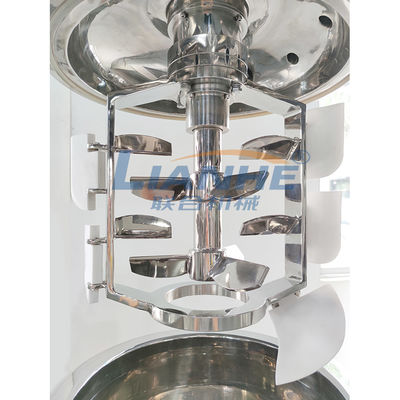

• Agitator type: homogenizer (high-speed agitator), sweep wall agitator (low-speed agitator)
• Certificate: CE
• one year warranty
• Supply capacity: 20 units/month
Product Advantage:
The vacuum emulsifying mixer machine produces cream and lotion with a fine, smooth, glossy form and a highly stable essential material. During the production process, operators must have a wide range of skills and abilities to produce the best cream. The classic way of making cream is to heat the oil and water at a temperature, mixing, packing materials, emulsifying, and cooling. On the other hand, the vacuum emulsifying mixer machine's cream is bubble-free, supple, smooth, and has a long life shelf.
Our Service:
As the vacuum emulsifying mixers manufacturer, we customize machines to meet customer needs. We can send our skilled engineers to the customer’s factory to install the machine correctly. We also provide a one-year warranty for all our machines and after-sales service.
