LIANHE Shampoo Liquid Filling Machine Multifunctional Durable
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | CE , ISO , SGS , TUV |
| Model Number: | LH-AF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Packaging Details: | Normally packaged in wooden case or wrapping film, also can be customized |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 30 Sets per Month |
|
Detail Information |
|||
| Voltage: | According To Customer | Filling Volume: | 5-150ml, 25-250ml, 50-500ml, 100-1000ml, 250-2500ml, 500-5000ml |
|---|---|---|---|
| Filling Nozzle: | 1, 2, 4, 6, 8, 10, 12 Nozzles | Filling Speed: | 30-60 Bottles/min |
| Material: | SUS 304/316L | Filling Method: | Servo Motor + Piston Filling |
| High Light: | LIANHE Liquid Filling Machine,Shampoo Liquid Filling Machine,Multifunctional Shampoo Filling Machine |
||
Product Description

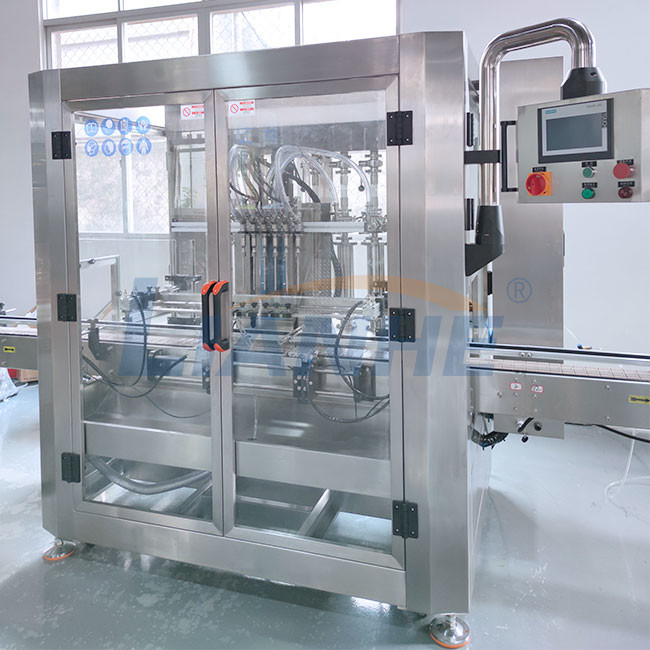

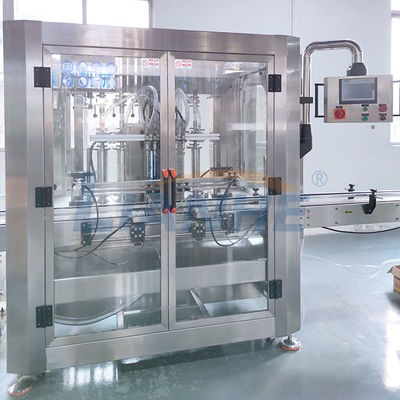

Fully Automatic Liquid Filling Machine Shampoo Bottle Filling Line
Product Description:
High Viscosity Filling Machine is the new-generation improved volumetric filling machine.
The whole machine uses the in-line structure and it is driven by the servo motor. Volumetric filling principle can realize the high precision of filling. It is controlled by the PLC, human interface and easy operation. The machine is equipped with electric scale weight feedback system which makes the volume adjustment easier. it is a nice choice for foodstuff, pharmacy, cosmetic and chemical industries.
Product Parameters:
Automatic Filling machine is controlled by computer via an auxiliary device (such as a cylinder block bottle system, stop bottles system, lifting system, feeding control, counting devices, etc.) to complete the automatic filling in the absence of personal operating conditions.
| Filling Nozzle | 1 Nozzle | 2 Nozzle | 4 Nozzle | 6 Nozzle | 8 Nozzle | 10 Nozzle | 12 Nozzle |
| Filling Speed | 20 bot/min | 25 bot/min | 30 bot/min | 40 bot/min | 50 bot/min | 60 bot/min | 70 bot/min |
| Filling Volume | 10-150ml, 25-250ml, 50-500ml, 100-1000ml, 250-2500ml, 500-5000ml | ||||||
| Filling Accuracy | ±0.5-1% | ||||||
| Power Voltage | 220V/380V/410V/440V, 60Hz, 3 Phase | ||||||
| Air Consumption | 0.5-0.7Mpa | ||||||
| Remark |
1. The filling speed based on 500ml/bottle water.
2. More options can be customized according to your requirements.
|
||||||
Product Features:

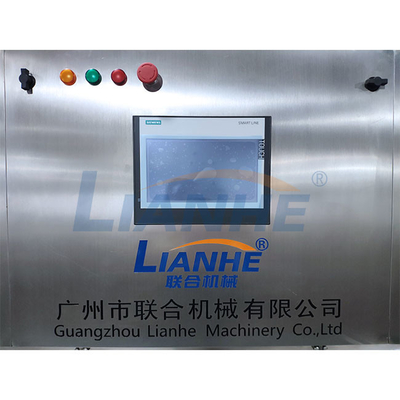

* Adopts PLC and human machine interface technology.
* Match photoelectric tracking switch, integrates electric and pneumatic functions into one.
* With reasonable design, stable performance, accurate quality, glass table surface.
* Automatic bottle feeding, and steady operation without noise.
* Electric speed control to the filling speed and filling volume, convenient maintenance and cleaning.
* The new type filling equipment is the best choice for the realization of automatic production.
Product Application:
The automatic liquid filling capping and labeling machine is used to filling, cap screwing and label stikering of liquid products, such as liquid soap, detergent, cream, lotion, etc. The automatic line is suitable for most shape of bottles and caps.
Product Details:

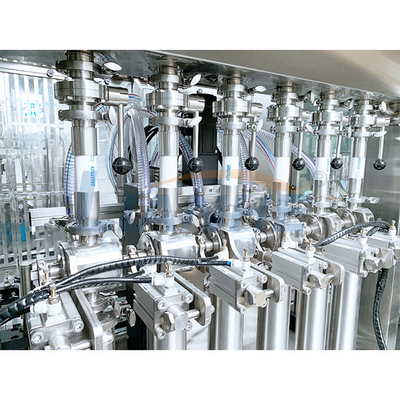

1. Use automatic volumetric piston pump executive filling, it is applicable for various viscosity liquid ,high precision; fast disassembly institutions of pump, easy to clean and disinfect.
2. PLC control system, frequency control, high degree of automation.
3. No bottles not filling automatic counting functions.
4. Filling capacity is easy to adjust, all metering pump filling quantity can be adjusted one time, can also be aimed at each pump on micro-measurement adjustment. Simple operation and quick adjustment.
5. Filling head equipped with pneumatic drip tight device.
6. The machine can be used for various specifications of bottles, adjust the simple, can be finished in a short time.
Our Servers:
We provide Turn-key project service to customer.
1. Factory Layout design;
2. Factory Decoration based on GMP standard;
3. Formula of products;
4. Raw material etc;
5. Machine design, whole production line from A to Z;
6. Shipping service, FOB, CFR, CIF etc;
7. Installation service. Training service, Mainte.
