PLC 12 Nozzles Automatic Filling Machine Liquid Soap Shower Gel Lotion Capping Labeling Line
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | CE , ISO , SGS , TUV |
| Model Number: | LH-AF6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Please Contact Us for More Details |
| Packaging Details: | Normally packaged in wooden case or wrapping film, also can be customized |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 25 Sets per Month |
|
Detail Information |
|||
| Control System: | PLC Touch Screen Control System | PLC Brand: | SIEMENS |
|---|---|---|---|
| Driven Type: | Piston Filling | Voltage: | 110V / 220V / 380V (Can Be Customized) |
| Filling Nozzle: | 1 - 12 Nozzles | Filling Accuracy: | ±0.5% |
| Work Pressure: | 0.6-0.8 Mpa | Application: | Cosmetic , Daily Chemical , Pharmaceutical , Food |
| High Light: | 12 Nozzles PLC Automatic Filling Machine,Lotion Capping Automatic Filling Machine |
||
Product Description
Automatic Liquid Soap Shower Gel Lotion Filling Capping Labeling Line
Automatic 2 / 4 / 6 nozzles Liquid Soap Shower Gel Lotion Filling Capping Labeling Line
Product Description:

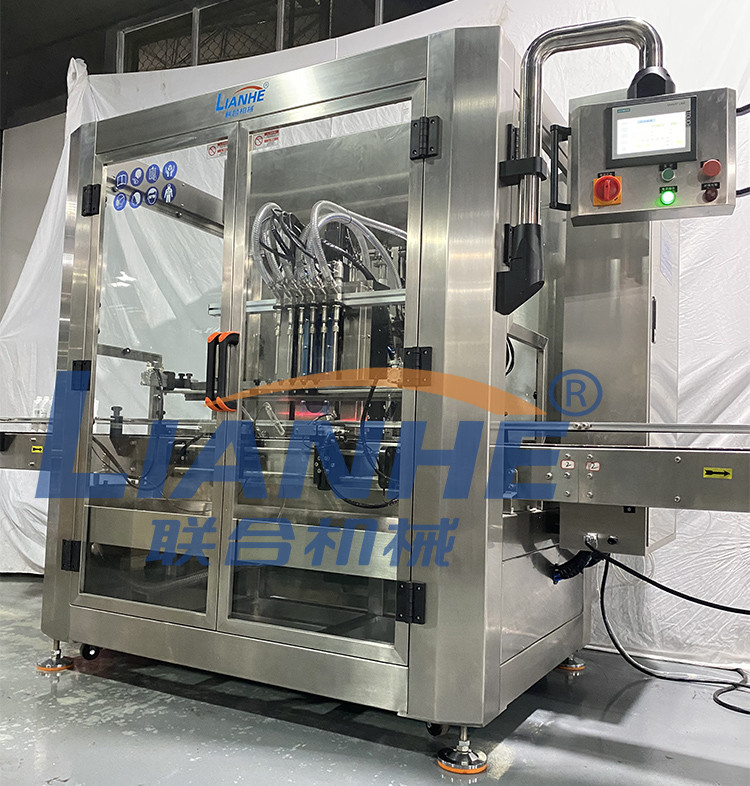

This filling machine adopts PLC and human-machine interface technology. Match photoelectric tracking switch. The machine integrates electric and pneumatic functions, reasonable design, stable performance, accurate quality, glass table, automatic bottle loading, smooth operation without noise, electric speed regulation of filling speed and filling volume, and convenient maintenance and cleaning. The new filling equipment is the best choice for automatic production.
Product Parameters:
Automatic Filling machine is controlled by computer via an auxiliary device (such as a cylinder block bottle system, stop bottles system, lifting system, feeding control, counting devices, etc.) to complete the automatic filling in the absence of personal operating conditions.
| Filling Nozzle | 1 Nozzle | 2 Nozzle | 4 Nozzle | 6 Nozzle | 8 Nozzle | 10 Nozzle | 12 Nozzle |
| Filling Speed | 20 bot/min | 25 bot/min | 30 bot/min | 40 bot/min | 50 bot/min | 60 bot/min | 70 bot/min |
| Filling Volume | 10-150ml, 25-250ml, 50-500ml, 100-1000ml, 250-2500ml, 500-5000ml | ||||||
| Filling Accuracy | ±0.5-1% | ||||||
| Power Voltage | 220V/380V/410V/440V, 60Hz, 3 Phase | ||||||
| Air Consumption | 0.5-0.7Mpa | ||||||
| Remark |
1. The filling speed based on 500ml/bottle water.
2. More options can be customized according to your requirements.
|
||||||
Product Features:
1. PLC control of filling machine.
2. The surface of the filling machine is made of high quality stainless steel.
3. The filling adopts a positive displacement plunger pump (when the filling volume varies greatly, the corresponding pump body needs to be replaced), which can be adjusted as a whole for all pumps, and can also be fine-tuned for a single pump, which is fast and convenient.

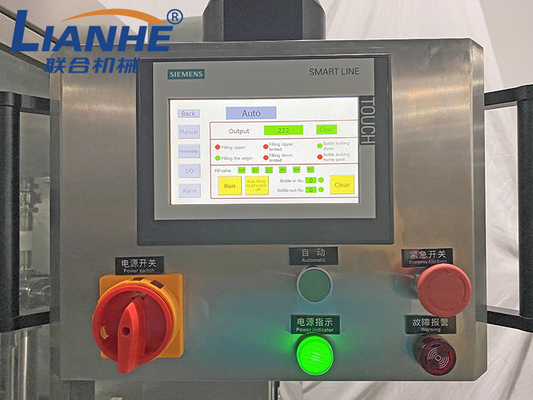

4. PLC control system, color touch screen display, filling volume can be adjusted directly on the touch screen, easy to operate.
5. The hopper has its own heating and stirring system, which makes the product more uniform, with better fluidity and easy filling.
6. It has the functions of no bottle, no filling, frequency conversion speed regulation, and automatic counting.
7. The machine conforms to GMP standard.
8. The piston and cylinder block of the cylinder are made of stainless steel;
9. The filling quantity and filling speed can be adjusted arbitrarily with high filling precision
10. Filling plug adopts non dripping, non drawing and lifting filling device, which can be applied to the filling ofedible oil and other oils.
Product Application:

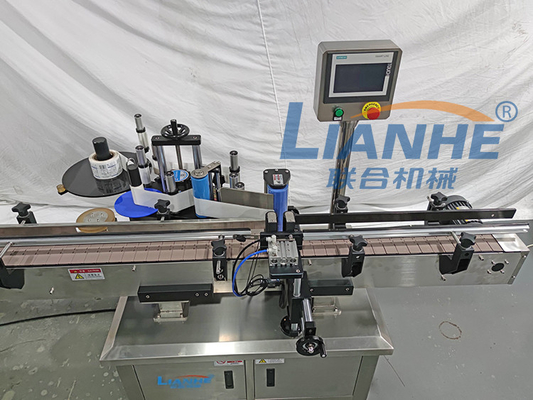

The automatic liquid filling capping and labeling machine is used to filling, cap screwing and label stikering of liquid products, such as liquid soap, detergent, cream, lotion, etc. The automatic line is suitable for most shape of bottles and caps.
Product Advantages:
1. Highly precised piston pump
2. Piston pump filling nozzle
3. 6 head filling (filling nozzle can be customized to 1/2/4 /6/10/12/14)
4. Filling nozzle made of SS316L
5. 304/316 Stainless steel high precision filling nozzle.
6. Filling volume adjustable in fine rank, same liquid level after filling.
7. All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean.
Product Details:

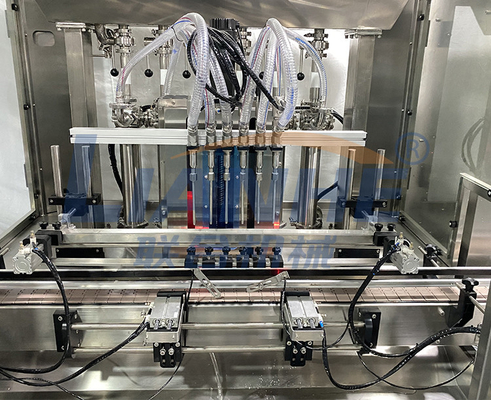

1. Use automatic volumetric piston pump executive filling, it is applicable for various viscosity liquid ,high precision; fast disassembly institutions of pump, easy to clean and disinfect.
2. PLC control system, frequency control, high degree of automation.
3. No bottles not filling automatic counting functions.
4. Filling capacity is easy to adjust, all metering pump filling quantity can be adjusted one time, can also be aimed at each pump on micro-measurement adjustment. Simple operation and quick adjustment.
5. Filling head equipped with pneumatic drip tight device.
6. The machine can be used for various specifications of bottles, adjust the simple, can be finished in a short time.
Our Servers:
We provide Turn-key project service to customer.
1. Factory Layout design;
2. Factory Decoration based on GMP standard;
3. Formula of products;
4. Raw material etc;
5. Machine design, whole production line from A to Z;
6. Shipping service, FOB, CFR, CIF etc;
7. Installation service. Training service, Mainte
