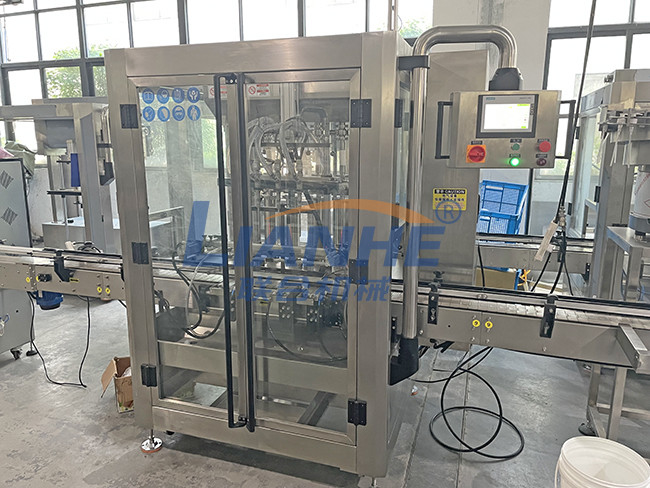

Automatic 4 Nozzles Piston Filling Machine High Speed
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | CE, TUV, SGS |
| Model Number: | LH-AF4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case / Bubble Film Packaging |
| Delivery Time: | 30 Working Days |
| Payment Terms: | T/T, L/C, D/A |
| Supply Ability: | 20 Sets Per Month |
|
Detail Information |
|||
| Voltage: | 220V/110V/380V Customized As Country | Filling Volume: | 5-150ml, 25-250ml, 50-500ml, 100-1000ml, 250-2500ml, 500-5000ml |
|---|---|---|---|
| Filling Nozzle: | 1, 2, 4, 6, 8, 10, 12, 14 Nozzles | Filling Speed: | Customized |
| Control: | SIEMENS PLC Touch Screen | Key Selling Point: | High Accuracy, Stable Performance |
| Material: | SUS 304/316L | Application: | Shampoo,liquid Soap,detergent,hand Washing, Etc. |
| High Light: | 4 Nozzles Piston Filling Machine,Automatic Piston Filling Machine,Piston Filling Machine High Speed |
||
Product Description
Automatic 4 Nozzles Filling Machine , High Speed Piston Filling Machine
Product Description:
The fully automatic filling machine is designed to fill bottles and jars with products of various viscosity, ranging from water thin liquids to thick creams. They are used in the cosmetic, food, pharmaceutical, oil and specialty industries. These inline piston filling machines come complete with: two to twelve fill heads, a variable speed drive conveyor, adjustable heavy duty stainless steel frame, an easy to operate control panel.
Product Parameters:
Automatic Filling machine is controlled by computer via an auxiliary device (such as a cylinder block bottle system, stop bottles system, lifting system, feeding control, counting devices, etc.) to complete the automatic filling in the absence of personal operating conditions.
| Filling Nozzle | 1 Nozzle | 2 Nozzle | 4 Nozzle | 6 Nozzle | 8 Nozzle | 10 Nozzle | 12 Nozzle |
| Filling Speed | 20 bot/min | 25 bot/min | 30 bot/min | 40 bot/min | 50 bot/min | 60 bot/min | 70 bot/min |
| Filling Volume | 10-150ml, 25-250ml, 50-500ml, 100-1000ml, 250-2500ml, 500-5000ml | ||||||
| Filling Accuracy | ±0.5-1% | ||||||
| Power Voltage | 220V/380V/410V/440V, 60Hz, 3 Phase | ||||||
| Air Consumption | 0.5-0.7Mpa | ||||||
| Remark |
1. The filling speed based on 500ml/bottle water.
2. More options can be customized according to your requirements.
|
||||||
Product Features:
* Adopts PLC and human machine interface technology.

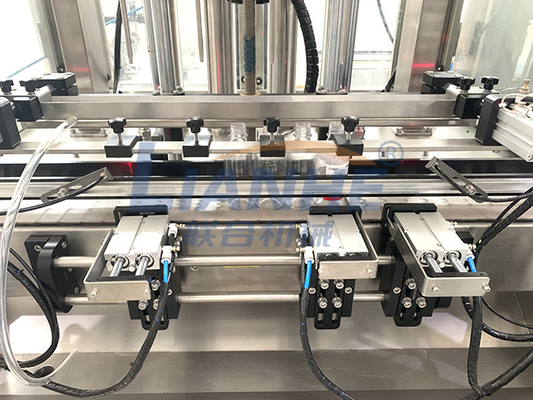

* Match photoelectric tracking switch, integrates electric and pneumatic functions into one.
* With reasonable design, stable performance, accurate quality, glass table surface.
* Automatic bottle feeding, and steady operation without noise.
* Electric speed control to the filling speed and filling volume, convenient maintenance and cleaning.
* The new type filling equipment is the best choice for the realization of automatic production.
* Can connect with bottle feeding table, capping and labeling machine,effective cost / space saving
* It has intuitive and convenient operation, measuring accurate, positioning precision
* Fully in accordance with the GMP standard production and passed CE certification
* Siemens Touch screen/PLC+anti explosion pump+Servo motor control
* No bottle no filling
Product Application:
Product Advantages:
1. Highly precised piston pump
2. Piston pump filling nozzle
3. 6 head filling (filling nozzle can be customized to 1/2/4 /6/10/12/14)
4. Filling nozzle made of SS316L
5. 304/316 Stainless steel high precision filling nozzle.
6. Filling volume adjustable in fine rank, same liquid level after filling.
7. All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean.
PLC Control System
Imported brands for PLC touch screen control system, high class appearance, easier and faster for operation. Filling

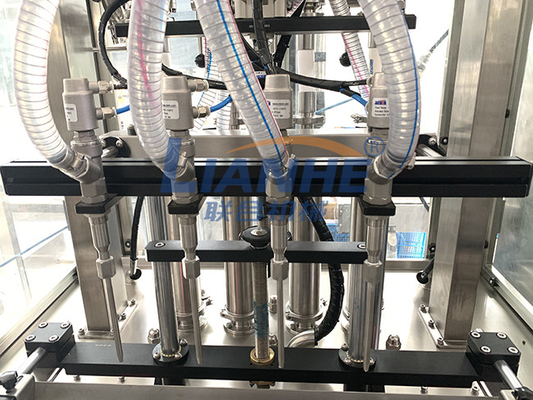

ANTI-DROP Filling Nozzles: 2/4/6/8/10/12 heads
Equipped with SUS316L long special designed no-drop filling nozzles, which can protect the cylinder on the top being damaged material; Design different size of filling nozzles
SERVO MOTOR Control Filling Volume
SUS304 frame, Round SUS316L PISTONS,TECO servo motor control, easy to adjust the volume, just need to input the volume needed in touch screen
Product Details:
1. Use automatic volumetric piston pump executive filling, it is applicable for various viscosity liquid ,high precision; fast disassembly institutions of pump, easy to clean and disinfect.
2. PLC control system, frequency control, high degree of automation.
3. No bottles not filling automatic counting functions.
4. Filling capacity is easy to adjust, all metering pump filling quantity can be adjusted one time, can also be aimed at each pump on micro-measurement adjustment. Simple operation and quick adjustment.
5. Filling head equipped with pneumatic drip tight device.
6. The machine can be used for various specifications of bottles, adjust the simple, can be finished in a short time.
Our Servers:
-
Warranty: One year since the date of installation. If there is any wearing parts be within the warranty and isn’t caused by un-proper operation, Lianhe will offer new parts for free.
-
Inspection: Buyer could visit our factory for site inspection, we could also send some machine testing videos to buyer if buyer couldn't come.
-
Machine Installation or Fixing: On site installation is available, Lianhe can send 1-2 technicians to buyer's factory for installation, testing and training. We can also provide online installation guidance instead, and provide you some 3D videos, instruction videos if buyer prefer installing by themselves.
-
Lifetime maintenance assistance and online video call service.
