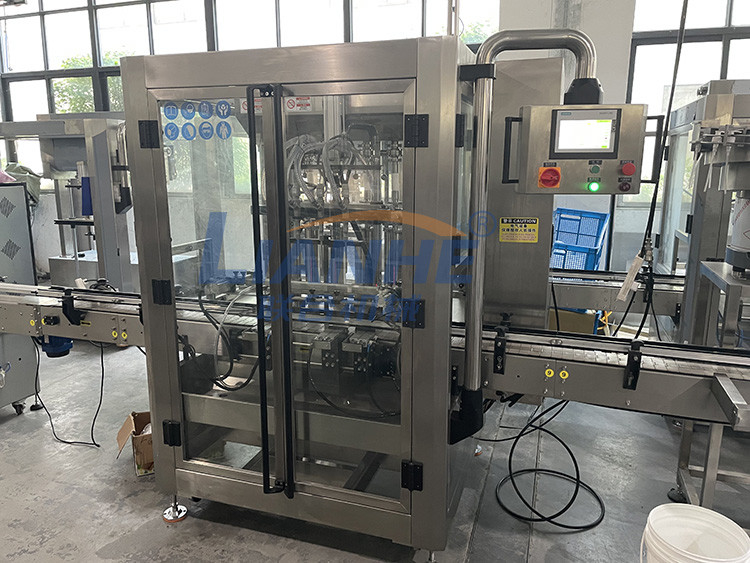

Automatic 4 Nozzles Viscous Lotion Liquid Filling Machine For Soap Detergent Shampoo
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | CE , ISO , SGS , TUV |
| Model Number: | LH-AF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Packaging Details: | Normally packaged in wooden case or wrapping film, also can be customized |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 25 Sets per Month |
|
Detail Information |
|||
| Control System: | PLC Touch Screen Or Button Contorl | Voltage: | 110V / 220V / 380V |
|---|---|---|---|
| Filling Head: | 1 - 12 Nozzles | Filling Accuracy: | ±0.1% |
| Work Pressure: | 0.55Mpa-0.65Mpa | Application: | Food , Chemical , Pharmaceutical |
| High Light: | 4 Nozzles Lotion Liquid Filling Machine,Detergent Lotion Liquid Filling Machine |
||
Product Description
Automatic 4 nozzles viscous lotion liquid soap detergent shampoo filling machine
Product Description:
The fully automatic filling machine adopts PLC control, according to the filling bottle, fixed discharging mouththe rest all operation can be finished on a touch screen. In addition to have commonautomatic servo piston filling machine advantages, also the widened the range of fillingmaterial.Such as filling material containsparticles, long strips of solid content, also can be a very effective fillingThis machine adopts serve ball-screw system to drive the piston cylinder. It's widely usedin Food, Chemical,Medical, Cosmetics, Agrochemical industry, applicable for filling liquid,especially for high viscosity material and foamy liquid, such as: Oil, Sauce, Ketchup, Honey.Shampoo,Lotion Lubricant oil,etc.
Product Parameters:
Automatic Filling machine is controlled by computer via an auxiliary device (such as a cylinder block bottle system, stop bottles system, lifting system, feeding control, counting devices, etc.) to complete the automatic filling in the absence of personal operating conditions.
| Filling Nozzle | 1 Nozzle | 2 Nozzle | 4 Nozzle | 6 Nozzle | 8 Nozzle | 10 Nozzle | 12 Nozzle |
| Filling Speed | 20 bot/min | 25 bot/min | 30 bot/min | 40 bot/min | 50 bot/min | 60 bot/min | 70 bot/min |
| Filling Volume | 10-150ml, 25-250ml, 50-500ml, 100-1000ml, 250-2500ml, 500-5000ml | ||||||
| Filling Accuracy | ±0.5-1% | ||||||
| Power Voltage | 220V/380V/410V/440V, 60Hz, 3 Phase | ||||||
| Air Consumption | 0.5-0.7Mpa | ||||||
| Remark |
1. The filling speed based on 500ml/bottle water.
2. More options can be customized according to your requirements.
|
||||||
Product Features:
1. PLC control of filling machine.
2. The surface of the filling machine is made of high quality stainless steel.
3. The filling adopts a positive displacement plunger pump (when the filling volume varies greatly, the corresponding pump body needs to be replaced), which can be adjusted as a whole for all pumps, and can also be fine-tuned for a single pump, which is fast and convenient.
4. PLC control system, color touch screen display, filling volume can be adjusted directly on the touch screen, easy to operate.
5. The hopper has its own heating and stirring system, which makes the product more uniform, with better fluidity and easy filling.
6. It has the functions of no bottle, no filling, frequency conversion speed regulation, and automatic counting.
7. The machine conforms to GMP standard.
Product Application:
Product Advantages:
1. Highly precised piston pump
2. Piston pump filling nozzle
3. 6 head filling (filling nozzle can be customized to 1/2/4 /6/10/12/14)
4. Filling nozzle made of SS316L
5. 304/316 Stainless steel high precision filling nozzle.
6. Filling volume adjustable in fine rank, same liquid level after filling.
7. All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean.
Product Details:
1. Use automatic volumetric piston pump executive filling, it is applicable for various viscosity liquid ,high precision; fast disassembly institutions of pump, easy to clean and disinfect.
2. PLC control system, frequency control, high degree of automation.
3. No bottles not filling automatic counting functions.
4. Filling capacity is easy to adjust, all metering pump filling quantity can be adjusted one time, can also be aimed at each pump on micro-measurement adjustment. Simple operation and quick adjustment.
5. Filling head equipped with pneumatic drip tight device.
6. The machine can be used for various specifications of bottles, adjust the simple, can be finished in a short time.
Our Servers:
-
Warranty: One year since the date of installation. If there is any wearing parts be within the warranty and isn’t caused by un-proper operation, Lianhe will offer new parts for free.
-
Inspection: Buyer could visit our factory for site inspection, we could also send some machine testing videos to buyer if buyer couldn't come.
-
Machine Installation or Fixing: On site installation is available, Lianhe can send 1-2 technicians to buyer's factory for installation, testing and training. We can also provide online installation guidance instead, and provide you some 3D videos, instruction videos if buyer prefer installing by themselves.
-
Lifetime maintenance assistance and online video call service.
