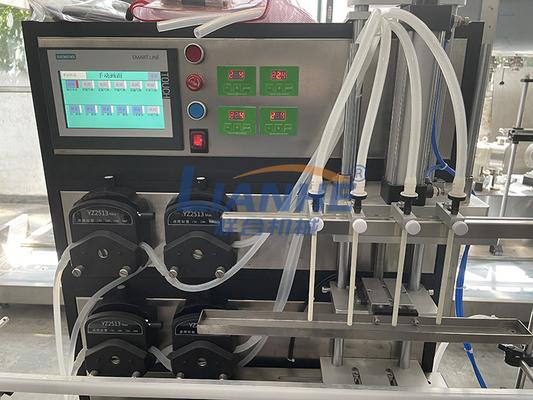

Peristaltic Pump Automatic Filling Machine Hydrogen Peroxide Anti - Corrosion
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | CE , ISO , SGS , TUV |
| Model Number: | LH-AF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Packaging Details: | Normally packaged in wooden case or wrapping film, also can be customized |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C, D/A, D/P, Cash |
| Supply Ability: | 25 Sets per Month |
|
Detail Information |
|||
| Filling Nozzles: | 1 - 12 Nozzles | Material: | SUS 316L & 304 |
|---|---|---|---|
| Filling Accuracy: | ±0.1% | Bottle Type: | PET Plastic Bottle Glass Bottle |
| Pump Type: | Peristaltic Pump | Voltage: | Can Be Customized According To Your Factory |
| High Light: | Peristaltic Pump Automatic Filling Machine,Hydrogen Peroxide Automatic Filling Machine |
||
Product Description

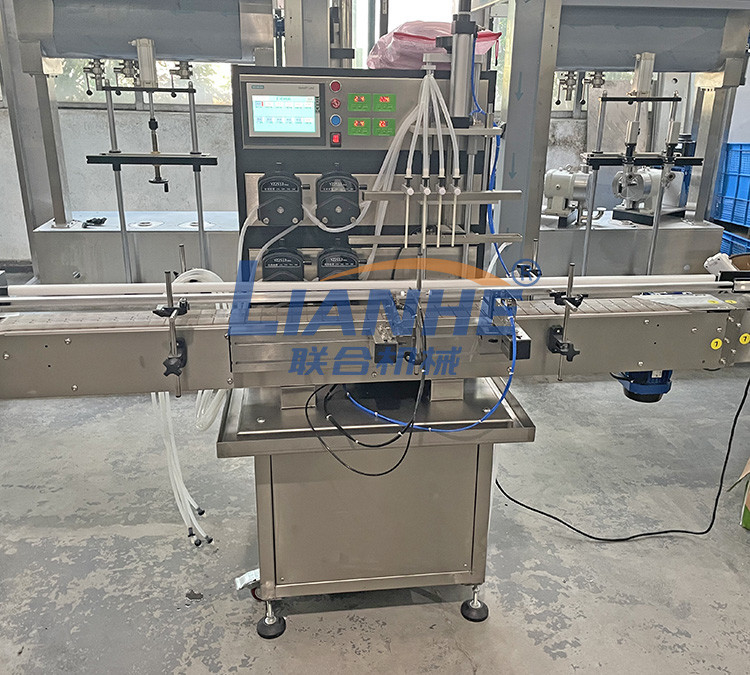

Automatic Filling Machine Production Line
Product Description:
This automatic flling machine is equipped with magnetic pump,which can ensure the filing accuracy.The filling speeof each nozzle can be controlled separately. lt has compact design, beautiful appearance,wide application field, and itworked with imported parts, so that the the machine has a good performance.This machine is suitable for filingessential oil,eye dropsink etc.
Product Application:

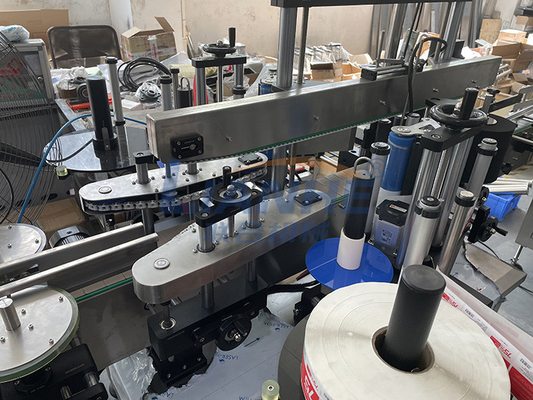

The automatic liquid filling capping and labeling machine is used to filling, cap screwing and label stikering of liquid products, such as liquid soap, detergent, cream, lotion, etc. The automatic line is suitable for most shape of bottles and caps.
Product Parameters:
| Filling Nozzle | 1 Nozzle | 2 Nozzle | 4 Nozzle | 6 Nozzle | 8 Nozzle | 10 Nozzle | 12 Nozzle |
| Filling Speed | 10 bot/min | 25 bot/min | 30 bot/min | 40 bot/min | 50 bot/min | 60 bot/min | 70 bot/min |
| Filling Volume | 5-150ml, 25-250ml, 50-500ml, 100-1000ml, 250-2500ml, 500-5000ml | ||||||
| Filling Accuracy | ±0.5-1% | ||||||
| Power Voltage | 220V/380V/410V/440V, 50/60Hz, single Phase | ||||||
| Air Consumption | 0.5-0.8 Mpa | ||||||
| Remark |
More options can be customized according to your requirements.
|
||||||
Product Advantages:
- Filling Nozzle: 1 nozzle, 2 nozzles, 4 nozzles, 6, 8, 10, 12, ..... etc, customized available for filling nozzle quantity based on your daily output.
- Servo motor control filling, ensure stable perfomance and high filling accuracy, reach to 0.5-1% precision.
- Electric sensor: only use imported brand such as Leuze or Sick, to control bottle blocking and clamping device, automatic material feeding, no bottle no filling, etc.
- Use automatic volumetric piston pump executive filling ,it is applicable for various viscosity liquid ,high precision; fast disassembly institutions of pump ,easy to clean and disinfect.
- PLC control system,frequency control,high degree of automation.
- No bottles not filling automatic counting functions.
- Filling capacity is easy to adjust ,all metering pump filling quantity can be adjusted one time , can also be aimed at each pump on micro-measurement adjustment .Simple operation and quick adjustment.
- Filling head equipped with pneumatic drip tight device.
- The machine can be used for various specifications of bottles, adjust the simple, can be finished in a short time.
Main features:
1.This type of filling machine has reasonable design, small size and convenient operation;
2.The piston and cylinder block of the cylinder are made of stainless steel;
3. The filling quantity and filling speed can be adjusted arbitrarily with high filling precision
4. Filling plug adopts non dripping, non drawing and lifting filling device, which can be applied to the filling ofedible oil and other oils.
5. Digital display
Product Details:
1. Filling Nozzles: 1/2/4/6/8/10/12 Customizable no-drop filling nozzles. Different sizes to fit different bottles, easy to be assembled.All the material contact part is made of stainless steel 316L.
2. Various Filling Range: 10-150ml, 25-250ml, 50-500ml, 100-1000ml, 250-2500ml, 500-5000ml. With adjustable speed conveyor belt, and high strength stainless steel frame, firm and wear-used.
3. Servo Piston Motor: Servo motor control filling, higher filling accuracy and more stable performance.
4. PLC Control System: PLC touch screen control system, high class appearance, easier and faster for operation.
Our Servers:
We provide Turn-key project service to customer.
1. Factory Layout design;
2. Factory Decoration based on GMP standard;
3. Formula of products;
4. Raw material etc;
5. Machine design, whole production line from A to Z;
6. Shipping service, FOB, CFR, CIF etc;
7. Installation service. Training service, Mainte
