Automatic Detergent Filling Machine , Single Phase Piston Bottle Filler
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | CE , ISO , SGS , TUV |
| Model Number: | LH-AF1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Packaging Details: | Normally packaged in wooden case or wrapping film, also can be customized |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, , D/A, D/P, Cash |
| Supply Ability: | 30 Sets per Month |
|
Detail Information |
|||
| Filling Nozzle: | 1 - 14 Nozzles (customized Accordingly) | Filling Speed: | 10-100 Bottles/min (customized) |
|---|---|---|---|
| Filling Volume: | 5-150ml, 25-250ml, 50-500ml, 100-1000ml, 250-2500ml, 500-5000ml | Control: | SIEMENS PLC Touch Screen |
| Filling Method: | Servo Motor Piston Filling | Capping Speed: | 30-60 Pcs Per Min |
| High Light: | Automatic Detergent Filling Machine,Piston Detergent Filling Machine,Single Phase Piston Bottle Filler |
||
Product Description

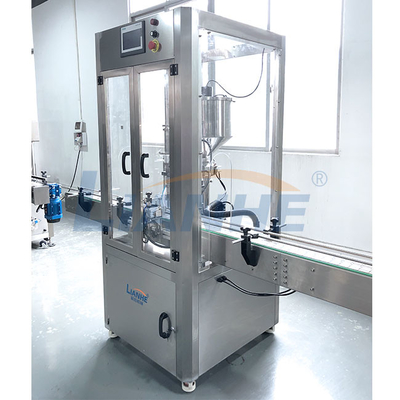

Automatic Liquid Filling Machine Detergent Filling Machine
Product Description:

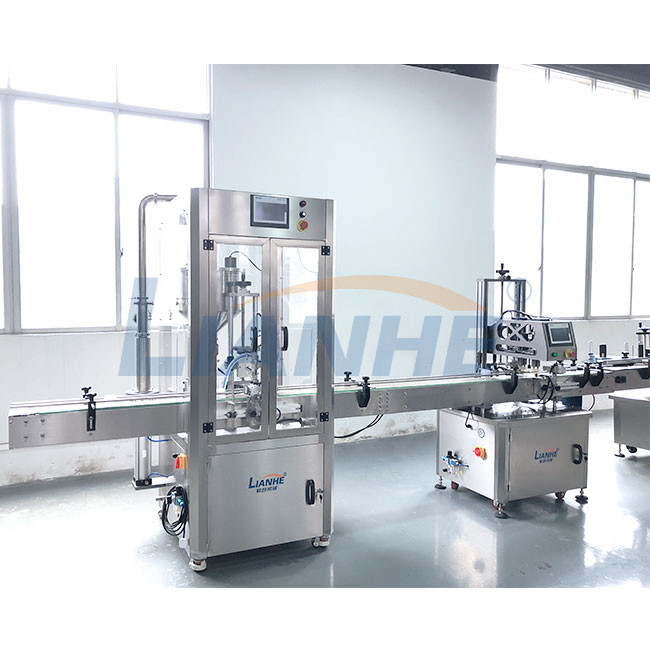

The automatic liquid filling capping and labeling machine is used to filling, cap screwing and label stikering of liquid products, such as liquid soap, detergent, cream, lotion, etc. The automatic line is suitable for most shape of bottles and caps.
Automatic liquid detergent dish wash bottle filler shampoo filing production line machine
Adopt PLC touch screen Siemens control, It's adopt piston filling form. The machine material adopt USU304 and filling nozzle material tank and touches liquid part material is USU316 Teflon and POM. And it have proteation device that machine will stop and alarm when lack of materials. The machine is customized according to customer needs, different material viscosity can be set dive filling, vacuum filling, each filling head is independent can be controlled by touch screen filling alone.
Product Parameters:
| Filling Nozzle | 1 Nozzle | 2 Nozzle | 4 Nozzle | 6 Nozzle | 8 Nozzle | 10 Nozzle | 12 Nozzle |
| Filling Speed | 10 bot/min | 25 bot/min | 30 bot/min | 40 bot/min | 50 bot/min | 60 bot/min | 70 bot/min |
| Filling Volume | 5-150ml, 25-250ml, 50-500ml, 100-1000ml, 250-2500ml, 500-5000ml | ||||||
| Filling Accuracy | ±0.5-1% | ||||||
| Power Voltage | 220V/380V/410V/440V, 50/60Hz, single Phase | ||||||
| Air Consumption | 0.5-0.8 Mpa | ||||||
| Remark |
More options can be customized according to your requirements.
|
||||||
Product Advantages:
- Filling Nozzle: 1 nozzle, 2 nozzles, 4 nozzles, 6, 8, 10, 12, ..... etc, customized available for filling nozzle quantity based on your daily output.

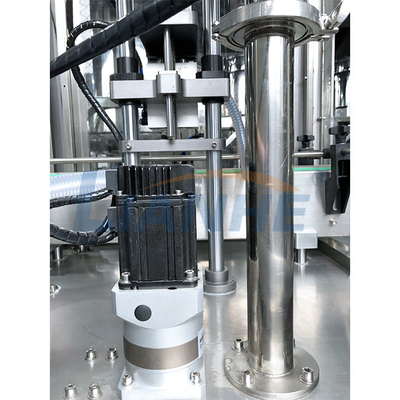

- Servo motor control filling, ensure stable perfomance and high filling accuracy, reach to 0.5-1% precision.
- Electric sensor: only use imported brand such as Leuze or Sick, to control bottle blocking and clamping device, automatic material feeding, no bottle no filling, etc.
- Use automatic volumetric piston pump executive filling ,it is applicable for various viscosity liquid ,high precision; fast disassembly institutions of pump ,easy to clean and disinfect.
- PLC control system,frequency control,high degree of automation.
- No bottles not filling automatic counting functions.
- Filling capacity is easy to adjust ,all metering pump filling quantity can be adjusted one time , can also be aimed at each pump on micro-measurement adjustment .Simple operation and quick adjustment.
- Filling head equipped with pneumatic drip tight device.
- The machine can be used for various specifications of bottles, adjust the simple, can be finished in a short time.
Product Details:

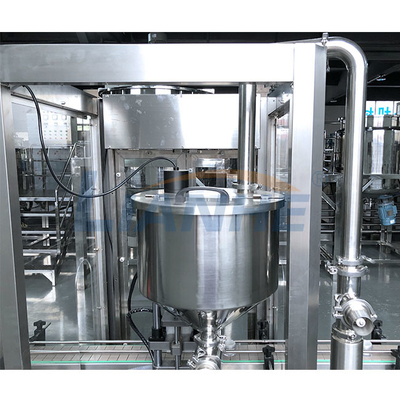

1. Automatic material feeding system, once there is material lackage of material hopper, the machine will automatically feed material into hopper.
2. Anti-drip filling nozzle design, ensure the production cleanlines. Each nozzle can be controlled separately, we can also customize other quantity of filling nozzles based on your speed request.
3. Siemens PLC touch screen control, high class appearance and stable performance.
Our Servers:
We provide Turn-key project service to customer.
1. Factory Layout design;
2. Factory Decoration based on GMP standard;
3. Formula of products;
4. Raw material etc;
5. Machine design, whole production line from A to Z;
6. Shipping service, FOB, CFR, CIF etc;
7. Installation service. Training service, Mainte
