Leakproof Detergent Liquid Filling Machine Antirust SUS304 Semi Auto
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | CE , ISO , SGS , TUV |
| Model Number: | LGJ-L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Packaging Details: | Normally packaged in wooden case or wrapping film, also can be customized |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 Sets per Month |
|
Detail Information |
|||
| Automatic Grade: | Semi-automatic | Material: | Stainless Steel 304 & 316 |
|---|---|---|---|
| Filling Principle: | Atmospheric Pressure | Air Supply: | 0.6-0.8MPa |
| Filling Accuracy: | ±0.1% | Key Selling Points: | Long Service Life |
| High Light: | Leakproof Liquid Filling Machine,SUS304 Liquid Filling Machine,Antirust Liquid Detergent Filling Machine |
||
Product Description

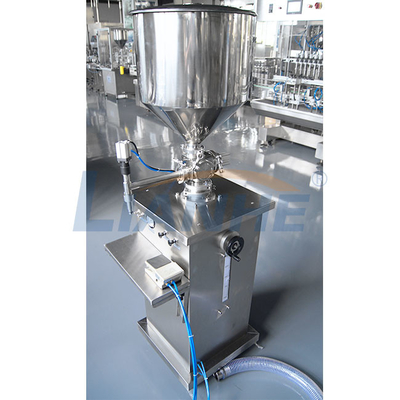

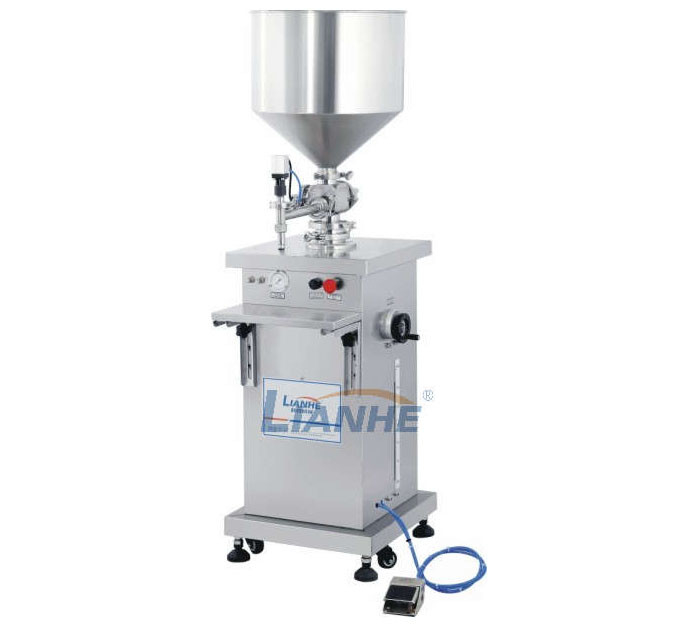

Semi Auto Volumetric Liquid Filling Machine Liquid Detergent Bottle Filler
Product Description:
This filling machine is one kind of piston filling machines. lt is driven by cylinder and onlycompressed air is needed to run the machine.The series of filling machines are designedspecially for filling liquid washing products such as liquid soap, detergent,shampoo, cream,sanitizer, etc. There are several models of this kind filling machine basing on different volume.Different model has different filling range.Please select the best model below according to the volume of your bottle, jar or other containers.
Product Parameters:
| Model | Filling Volume | Filling Precision | Air Consumption | Productivity |
| LGJ-L-15 | 5-150ml | ±0.1% | 23 L/min | 20-50 bot/min |
| LGJ-L-25 | 10-250ml | ±0.1% | 30 L/min | 20-50 bot/min |
| LGJ-L-50 | 30-500ml | ±0.1% | 44 L/min | 20-50 bot/min |
| LGJ-L-100 | 60-1000ml | ±0.1% | 87 L/min | 20-50 bot/min |
| LGJ-L-250 | 250-2500ml | ±0.1% | 160 L/min | 20-50 bot/min |
| LGJ-L-500 | 500-5000ml | ±0.1% | 300 L/min | 20-50 bot/min |
| The parameters are for reference only, the products can be customized | ||||
Product Features:
1. This machine adopts imported machine parts pistion and cylinder which made of stainless steel and polytetraflutoethylene Excellent qualified imported components and perfect
2. Mechanical design ensure its leading position among domestic similar machines New type horizontal design legerity and convenient take out material automatically and avoid trouble of
3. Frequent putting in material of vertical hopper Switch function between manual and automatic when machine is under automatic condition ,machine fills continuously
4. Automatically withe set speed .when machine is under automatic condition ,operator steps on footplate to realize filling if stepping on footboard all the time .it will change to automatic continuous filling condition, cylinder and three -way part adopt cuff connection which is easy to remove ,it doesn,t need any special tools so it is easy to clean Anti-leaking filling system
5. During filling ,cylinder moves up and down and drive end ring , when cylinder is downwards ,endring is downwards then valve is open and start to fill material ;when cylinder is upwards end ring is upwards then valve is close and stop to fill matereal and avoid leaking and wire drawing
Product Application:
This type of machinery is suitable for quantitative filling of liquids, pastes, granules, sauces, etc. or viscous materials in medicine, daily chemicals, food, pesticides, chemicals, lubricants and special industries. Such as: cosmetic cream, juice, ice cream, glue, ink, shampoo, hand sanitizer, chili sauce, hot pot base, butter, cream, etc.

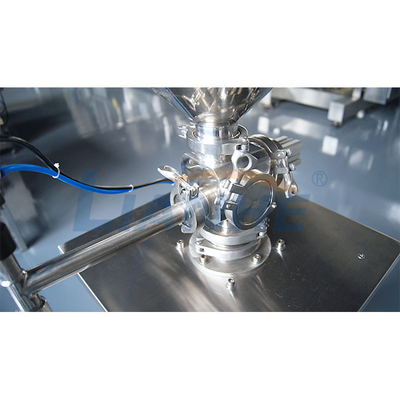

Filling nozzle:
1. Filling nozzle is made of 304 stainless steel.
2. It can be customized for anti-drawing, anti-drip design and 316 stainless steel.
3. Different size 5mm, 8mm,10mm or customized.
Control System:
1. E-stop Button: Safety switch, emergency braking.
2. Manual / Auto Knob: The machine can be foot-operated or auto mode control filling.

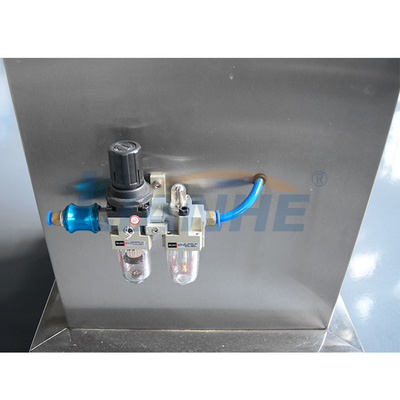

3. Air pressure adjustment knob and barometer: Pull up the knob to adjust the air pressure.
Product Details:
Semi Automatic Filling Line:
Our Servers:
We provide Turn-key project service to customer.
1. Factory Layout design;
2. Factory Decoration based on GMP standard;
3. Formula of products;
4. Raw material etc;
5. Machine design, whole production line from A to Z;
6. Shipping service, FOB, CFR, CIF etc;
7. Installation service. Training service, Mainte.
