ISO Semi Automatic Cream Lotion Filling Machine Rustproof Stainless Steel
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | CE , ISO , SGS , TUV |
| Model Number: | LGJ-L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Packaging Details: | Normally packaged in wooden case or wrapping film, also can be customized |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 Sets per Month |
|
Detail Information |
|||
| Filling Principle: | Atmospheric Pressure | Air Supply: | 0.6-0.8MPa |
|---|---|---|---|
| Driven Type: | Pneumatic Piston | Transport Package: | Strong Wooden Case |
| Material: | Stainless Steel 304 & 316 | Filling Accuracy: | ±0.1% |
| Filling Speed: | 20-50 Bottles/min | Filling Nozzle: | 1, 2 Nozzles |
| High Light: | ISO Cream Lotion Filling Machine,Stainless Steel Cream Lotion Filling Machine,Rustproof Semi Automatic Cream Filling Machine |
||
Product Description

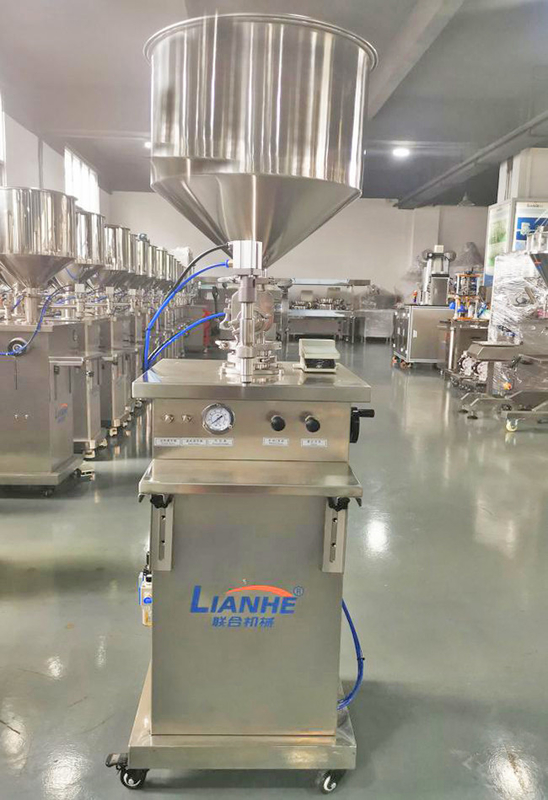

Cream Lotion Liquid Filling Machine Self-Suction Semi Automatic Filler
Product Description:
This filling machine is one kind of piston filling machines. lt is driven by cylinder and onlycompressed air is needed to run the machine.The series of filling machines are designedspecially for filling liquid washing products such as liquid soap, detergent,shampoo, cream,sanitizer, etc. There are several models of this kind filling machine basing on different volume.Different model has different filling range.Please select the best model below according to the volume of your bottle, jar or other containers.
Product Parameters:
| Model | Filling Volume | Filling Precision | Air Consumption | Productivity |
| LGJ-L-15 | 5-150ml | ±0.1% | 23 L/min | 20-50 bot/min |
| LGJ-L-25 | 10-250ml | ±0.1% | 30 L/min | 20-50 bot/min |
| LGJ-L-50 | 30-500ml | ±0.1% | 44 L/min | 20-50 bot/min |
| LGJ-L-100 | 60-1000ml | ±0.1% | 87 L/min | 20-50 bot/min |
| LGJ-L-250 | 250-2500ml | ±0.1% | 160 L/min | 20-50 bot/min |
| LGJ-L-500 | 500-5000ml | ±0.1% | 300 L/min | 20-50 bot/min |
| The parameters are for reference only, the products can be customized | ||||
Product Features:
1.This machine adopts imported machine parts/piston and cylinder which made of stainless steel and polytetrafluroethylene. Excellent qualified imported components and perfect mechanical design ensure its leading position among domestic similar machines.
2.The new vertical design, light and easy.
3.Switch function between manual and automatic; when machine is under automatic condition, machine fills continuously automatically with set speed, when machine is under manual condition, operator steps on footplate to realize filling. If stepping on footboard all the time, it will change to automatic filling condition.
4.Cylinder and three-way part adopt cuff connection which is easy to remove. It doesn't need any special tools so it is easy to clean.
5.Anti-leaking filling system: during filling, cylinder moves up and down and drive end ring. When cylinder is downward, end ring is downward, then valve is open and start to fill material; when cylinder is upward, end ring is upward, then valve is close and stop to fill material and avoid leaking and wire drawing.
Product Application:
Self-suction filling machine (pneumatic) suitable for filling from the water (containing particles) to various viscosity products cream, suitable for daily chemical, medicine, food, pesticide and other industries. Suitable for water, honey, yogurt, fruit juice, shampoo, shower gel Liquid, gear oil, coffee, ink, liquid eye shadow, tea, food pigment,hand washing liquid, lotion, , milk, liquid soap,syrup, food oil,etc.

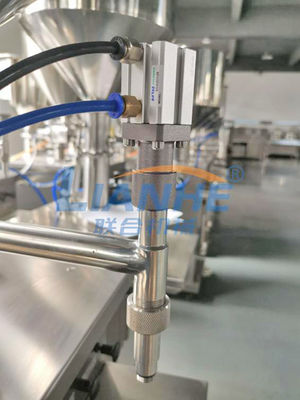

Filling nozzle:
1. Filling nozzle is made of 304 stainless steel.
2. It can be customized for anti-drawing, anti-drip design and 316 stainless steel.
3. Different size 5mm, 8mm,10mm or customized.
High quality cylinder:
1. High precision
2. Stable work
3. Durable

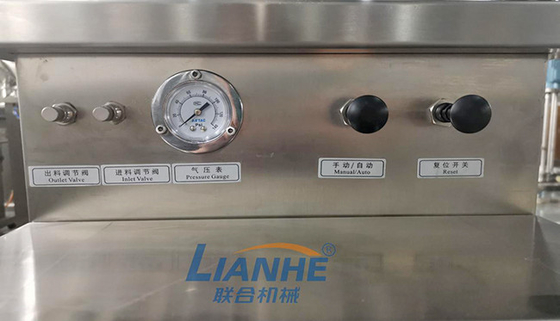

Control System:
1. E-stop Button: Safety switch, emergency braking.
2. Manual / Auto Knob: The machine can be foot-operated or auto mode control filling.
3. Air pressure adjustment knob and barometer: Pull up the knob to adjust the air pressure.
Product Details:
Semi Automatic Filling Line:
Our Servers:
We provide Turn-key project service to customer.
1. Factory Layout design;
2. Factory Decoration based on GMP standard;
3. Formula of products;
4. Raw material etc;
5. Machine design, whole production line from A to Z;
6. Shipping service, FOB, CFR, CIF etc;
7. Installation service. Training service, Mainte.
