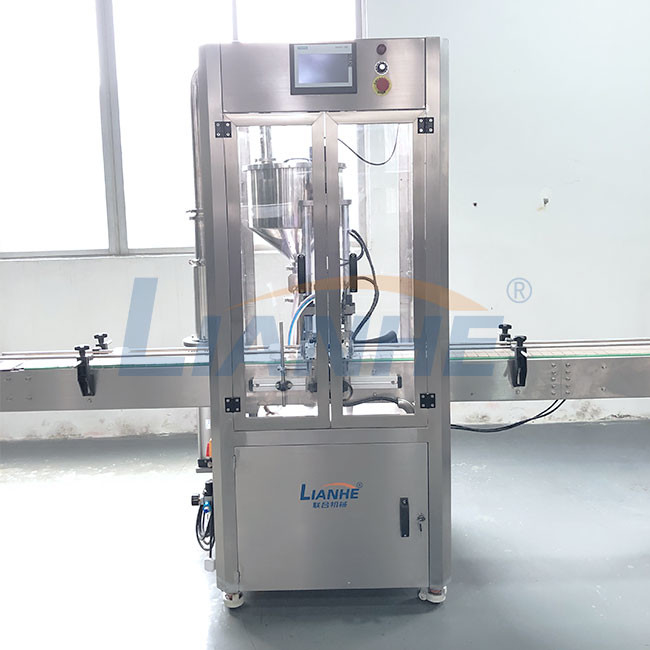

ISO Dishwashing Liquid Filling Machine SUS316L Material PLC Control
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | CE , ISO , SGS , TUV |
| Model Number: | LH-AF1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Packaging Details: | Normally packaged in wooden case or wrapping film, also can be customized |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, , D/A, D/P, Cash |
| Supply Ability: | 30 Sets per Month |
|
Detail Information |
|||
| Filling Nozzle: | 1, 2, 4, 6, 8, 10, 12 Nozzles Customized | Filling Speed: | 10-100 Bottles/min (customized |
|---|---|---|---|
| Filling Volume: | 5-150ml, 25-250ml, 50-500ml, 100-1000ml, 250-2500ml, 500-5000ml | Material Contact Part: | SUS316L, Teflon |
| Control: | PLC + Touch Screen | Filling Method: | Servo Motor + Piston Filling |
| Product Feeding Way: | Automatic Control | ||
| High Light: | ISO Liquid Filling Machine,SUS316L Liquid Filling Machine,PLC Dishwashing Liquid Filling Machine |
||
Product Description
Automatic Liquid Filling Machine Cream Gel Detergent Filling
Product Description:
The automatic liquid filling capping and labeling machine is used to filling, cap screwing and label stikering of liquid products, such as liquid soap, detergent, cream, lotion, etc. The automatic line is suitable for most shape of bottles and caps.
Product Parameters:
Full automatic plastic/glass bottle filling capping labeling line for liquid or viscous product, such as detergent, liquid soap, shampoo, hand sanitizer, hair dye, cream, ointment, paste, lotion, gel, etc.
| Filling Nozzle | 1 Nozzle | 2 Nozzle | 4 Nozzle | 6 Nozzle | 8 Nozzle | 10 Nozzle | 12 Nozzle |
| Filling Speed | 10 bot/min | 25 bot/min | 30 bot/min | 40 bot/min | 50 bot/min | 60 bot/min | 70 bot/min |
| Filling Volume | 5-150ml, 25-250ml, 50-500ml, 100-1000ml, 250-2500ml, 500-5000ml | ||||||
| Filling Accuracy | ±0.5-1% | ||||||
| Power Voltage | 220V/380V/410V/440V, 50/60Hz, single Phase | ||||||
| Air Consumption | 0.5-0.8 Mpa | ||||||
| Remark |
1. The filling speed based on 500ml/bottle water.
2. More options can be customized according to your requirements.
|
||||||
Product Features:
Automatic liquid detergent dish wash bottle filler shampoo filing production line machine
Adopt PLC touch screen Siemens control, It's adopt piston filling form. The machine material adopt USU304 and filling nozzle material tank and touches liquid part material is USU316 Teflon and POM. And it have proteation device that machine will stop and alarm when lack of materials. The machine is customized according to customer needs, different material viscosity can be set dive filling, vacuum filling, each filling head is independent can be controlled by touch screen filling alone.
* Adopts PLC and human machine interface technology.
* Match photoelectric tracking switch, integrates electric and pneumatic functions into one.
* With reasonable design, stable performance, accurate quality, glass table surface.
* Automatic bottle feeding, and steady operation without noise.
* Electric speed control to the filling speed and filling volume, convenient maintenance and cleaning.
* The new type filling equipment is the best choice for the realization of automatic production.
Product Details:
1. Automatic material feeding system, once there is material lackage of material hopper, the machine will automatically feed material into hopper.

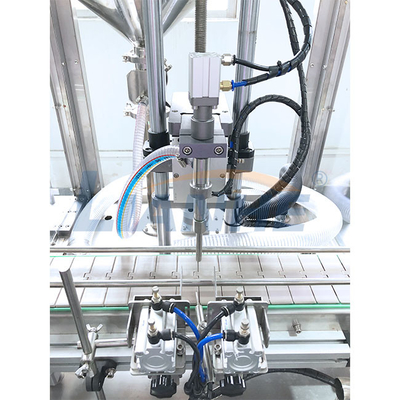

2. Anti-drip filling nozzle design, ensure the production cleanlines. Each nozzle can be controlled separately, we can also customize other quantity of filling nozzles based on your speed request.

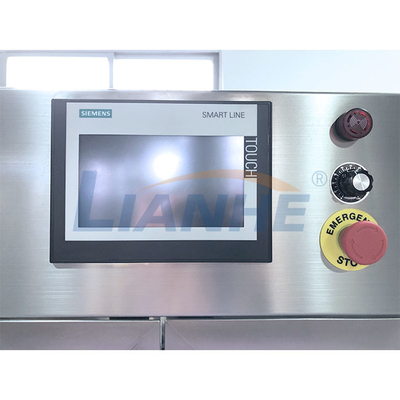

3. Siemens PLC touch screen control, high class appearance and stable performance.
Our Servers:
We provide Turn-key project service to customer.
1. Factory Layout design;
2. Factory Decoration based on GMP standard;
3. Formula of products;
4. Raw material etc;
5. Machine design, whole production line from A to Z;
6. Shipping service, FOB, CFR, CIF etc;
7. Installation service. Training service, Mainte
