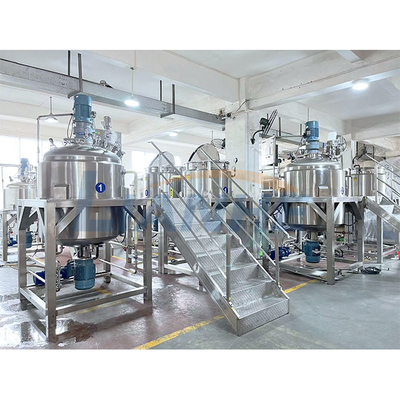

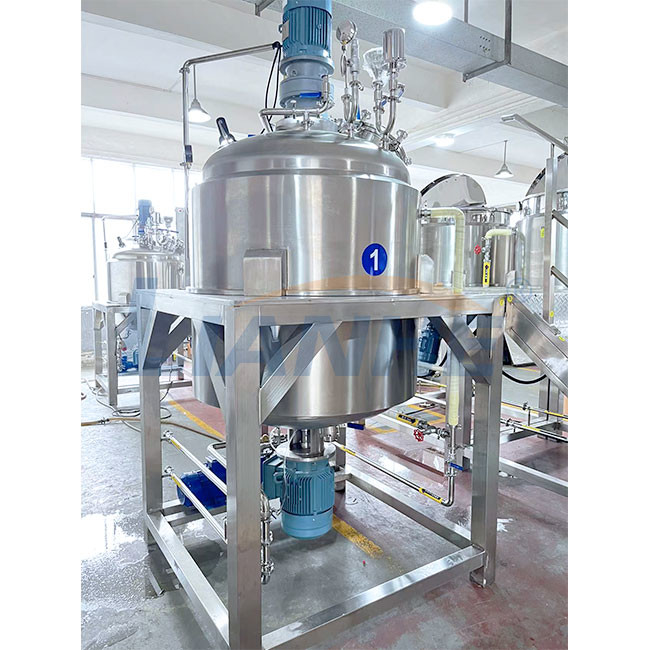

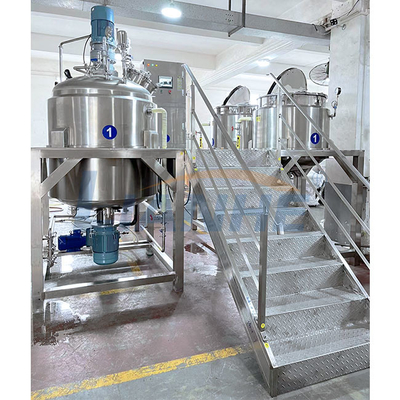

1000L Cosmetic Mixer Cream Shampoo Vacuum Emulsifier High Shear Body Lotion Mixing Tank
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | TUV, CE, SGS, GMP |
| Model Number: | VME-F-1000L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case / Bubble Film Packaging |
| Delivery Time: | 35 Working Days |
| Payment Terms: | T/T, D/A, L/C |
| Supply Ability: | 20 Sets Per Month |
|
Detail Information |
|||
| Available Capacity: | 5L-6000L | Tank Structure: | 3 Layers Of Steel, 2 Jackets |
|---|---|---|---|
| Material: | SUS316L/SUS304/SUS304 | Heating Method: | Electric Heating / Steam Heating |
| Cooling: | Tap Water / Ice Water Cooling | Mixing Method: | One Way Or Two Way Mixing With Teflon Scraper |
| Mixing Speed: | 0-65 R.p.m | Homogenizer Speed: | 0-3600 R.p.m |
| Control: | PLC&Touch Screen / Button | ||
Product Description
1000L Cosmetic Mixer Cream Shampoo Vacuum Emulsifier High Shear Body Lotion Mixing Tank
Brief Introduction:
Total volume: 1250L, Working volume: 1000L
1.The vacuum mixing Tank adopts the imported frequency inverter for speed adjustment,which can meet different technological demands.
2.The homogenizing structure is made through German techology. The machine adopts the improted double-end mechanical seal effect. The maximum emulsifying rotation speed can reach 3600rpm and the high shearing fineness can reach 0.2-5um.
3.The vacuum defoaming can make the materials meet the requirement of being aseptic . The vacuum materials vacuum sucking can avoid dust.
4.The main boiler lid can adopt lifting system, it is easy to clean and the cleaning effect is more obvious, the main boiler can adopt tilting discharge.
5.The boiler body is welded with 3 layer imported SS plate, tank body and pipes adopts mirror polish whcih meet the GMP standard.
6.According to process requirement, the tank body can heating and cooling.
Technical Parameter:
| Capacity (L) | Homogenizer | Agitator | Vacuum pump | Heating system | ||||
| power (kw) | speed (rpm) | power (kw) | speed (rpm) | power (kw) | Limit vacuum | Electric heating (kw) | Steam heating (Mpa) | |
| 5 | 0.55 | 0-3600 | 0.4 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 10 | 1.1 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 20 | 1.5 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 9 | 0.2 |
| 50 | 3 | 0-3600 | 0.75 | 0-65 | 0.75 | -0.1 | 12 | 0.2 |
| 100 | 4 | 0-3600 | 1.5 | 0-65 | 1.5 | -0.1 | 24 | 0.2 |
| 200 | 5.5 | 0-3600 | 1.5 | 0-65 | 2.2 | -0.1 | 28 | 0.2 |
| 300 | 7.5 | 0-3600 | 3 | 0-65 | 2.2 | -0.1 | 32 | 0.2 |
| 500 | 11 | 0-3600 | 4 | 0-65 | 4 | -0.1 | 50 | 0.2 |
| 1000 | 15 | 0-3600 | 5.5 | 0-65 | 4 | -0.1 | 54 | 0.2 |
| 2000 | 18.5 | 0-3600 | 7.5 | 0-65 | 5.5 | -0.1 | recommend steam heating | 0.2 |
| 5000 | 22.5 | 0-3600 | 15 | 0-65 | 7.5 | -0.1 | 0.2 | |
| The parameters are for reference only, all the machines can be customized according to your needs. | ||||||||
Control System:
This vacuum emulsification tank is equipped with an independent control cabinet. The control cabinet integrates stirring speed, heating time, temperature digital display, etc. on the same operating plane. The operation is extremely simple and efficient! In addition, the lid is equipped with a vacuum pressure gauge, a vent valve, a vacuum port, a sight glass lamp, a sight glass port with a scraper, a manhole, a spice funnel; a suction filter, an air pump air inlet, etc. After the ball valve is installed and stirred evenly, rotate the valve handle 90° to discharge the material, and close after the discharge is completed.
Optional Configuration:
Ø Reactor system (stainless steel and glass optional)
Ø Emulsifying system (optional for emulsifying and homogenizing head)
ØMixing system (digital display timing mixer optional)
ØTemperature control system (temperature probe optional)
Ø Lifting system (pneumatic assist and electric lift optional)
ØVacuum system (vacuum pump)
Ø Heating system (water bath or oil bath)
ØOnline monitoring system
Application Product:
1) Cosmetics industry: skin care cream, shaving cream, shampoo cream, toothpaste, cold cream, cold sun cream, facial cleanser, nutrient dense, detergent, shampoo, essence, moisturizing cream, hand cream, private gel gel, aloe vera gel, etc.
2) Daily chemicals: laundry detergent, hand sanitizer, toilet cleaning, car glass water, etc.
3) Pharmaceutical industry: latex, emulsion, ointment (ointment), oral syrup, oral liquid, etc.
4) Food industry: sauce, cheese, nutrient solution, baby food, chocolate, sugar, etc.
5) Chemical industry: latex, sauce, saponification products, paints, coatings, resins, adhesives, lubricants, etc.
