3000L Ketchup Making High Shear Emulsifier Mixer With Circulating Pump
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | CE, SGS, TUV |
| Model Number: | PMC-3000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case / Bubble Film Packaging |
| Delivery Time: | 30 Working Days |
| Payment Terms: | T/T, L/C, D/A |
| Supply Ability: | 20 Sets Per Month |
|
Detail Information |
|||
| Available Capacity: | 30L To 6000L | Tank Structure: | 3 Layers Of Steel, 2 Jacket |
|---|---|---|---|
| Material: | SUS316L/SUS304/SUS304 | Heating Method: | Electric Heating / Steam Heating |
| Cooling: | Water Cooling | Mixing Method: | One Way Or Two Way Mixing With Teflon Scraper |
| Mixing Speed: | 0-65RPM | Homogenizer: | 3000RPM |
| High Light: | 3000L High Shear Emulsifier Mixer,Ketchup High Shear Emulsifier Mixer,Pump Ketchup Making Machine |
||
Product Description
3000L Ketchup Making Homogenizer Emulsifier Mixer With Circulating Pump
Brief Introduction:

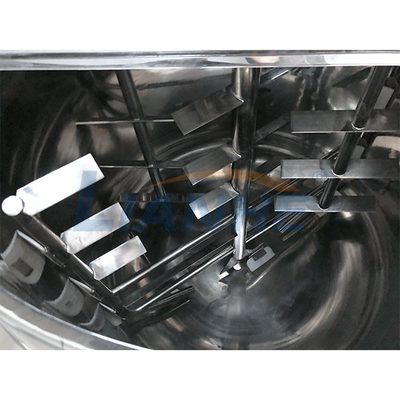

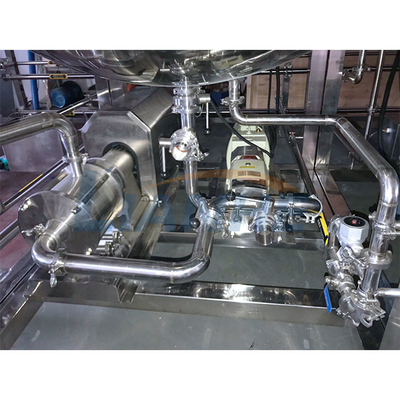

This 3000L Ketchup Making Homogenizer Emulsifier Mixer With Circulating Pump is made for a food factory to manufacture ketchup / tomato sauce. The machine is designed with an agitator that can mix from 0 to 65RPM adjusted speed, mixing paddle has Teflon wall scraper to avoid residual. Also the machine adopted with steam heating system which can reach to 120℃ max, this highly meets the requirements of food industry. And a circulating system to circulate the material from bottom to top, this way can make sure products mixed more even.
However, this machine can also be using for other industries, such as cosmetic, daily chemical, and other liquid/paste form material, the customization of making different products are available.
The machine is made of SUS316L for material contact parts that meets GMP standard, it is very popular and productive for above industries.
The machine can be customized with different functions, such as stirring, homogenizing, heating & cooling, vacuum system, lifting system, etc. Usually we will customize the machine according to the products and capacity that clients want to make, to make sure the machine design can perfectly meet their requirements with reasonable and cost effective price.
Technical Parameter:
| Model | Capacity (L) | Agitator | Homiogenizer | Heating system | |||
| power (kw) | speed (rpm) | power (kw) | speed (rpm) | Electric heating (kw) | Steam heating (Mpa) | ||
| PMC-50 | 50 | 0.75 | 0-65 | 3 | 3000 | 6 | Steam heating energy conservation and environmental protection, selected according to need |
| PMC-100 | 100 | 1.5 | 0-65 | 4 | 3000 | 9 | |
| PMC-150 | 150 | 1.5 | 0-65 | 4 | 3000 | 12 | |
| PMC-200 | 200 | 1.5 | 0-65 | 4 | 3000 | 12 | |
| PMC-300 | 300 | 1.5 | 0-65 | 5.5 | 3000 | 18 | |
| PMC-500 | 500 | 2.2 | 0-65 | 7.5 | 3000 | 27 | |
| PMC-1000 | 1000 | 4 | 0-65 | 11 | 3000 | 36 | |
| PMC-1500 | 1500 | 5.5 | 0-65 | 15 | 3000 | 45 | |
| PMC-2000 | 2000 | 7.5 | 0-65 | 15 | 3000 | recommend steam heating | |
| PMC-3000 | 3000 | 11 | 0-65 | 15 | 3000 | ||
| PMC-5000 | 5000 | 11 | 0-65 | 22 | 3000 | ||
| The parameters for reference only, all the machines can be customized accordingly. | |||||||
Application Product:
- Daily Chemical: Liquid soap, shampoo, hand sanitizer, liquid detergent, fabric softener, etc.
- Skin & Hair Care: Body lotion, facial cream, sunscree cream, serum, hair dye, hair conditioner, etc.
- Pharmaceutical: Ointment, erythromycin eye ointment, Compound Dexamethasone Acetate, etc.
- Food: Mayonnaise, ketchup, cheese, sauce, paste, coconut oil, juice, etc.
Service:
-
Warranty: One year since the date of installation. If there is any wearing parts be within the warranty and isn’t caused by un-proper operation, Lianhe will offer new parts for free.
-
Inspection: Buyer could visit our factory for site inspection, we could also send some machine testing videos to buyer if buyer couldn't come.
-
Machine Installation or Fixing: On site installation is available, Lianhe can send 1-2 technicians to buyer's factory for installation, testing and training. We can also provide online installation guidance instead, and provide you some 3D videos, instruction videos if buyer prefer installing by themselves.
-
Lifetime maintenance assistance and online video call service.
