3 Layers Lab Emulsion Mixer Machine For Cream 10L SUS316L Material
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | TUV, CE, SGS, GMP |
| Model Number: | VME-A-10L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case / Bubble Film Packaging |
| Delivery Time: | 35 Working Days |
| Payment Terms: | T/T, D/A, L/C |
| Supply Ability: | 20 Sets Per Month |
|
Detail Information |
|||
| Available Capacity: | 5L-6000L | Tank Structure: | 3 Layers Of Steel, 2 Jackets |
|---|---|---|---|
| Material: | SUS316L/SUS304/SUS304 | Heating Method: | Electric Heating / Steam Heating |
| Cooling: | Tap Water / Ice Water Cooling | Mixing Method: | One Way Or Two Way Mixing With Teflon Scraper |
| Mixing Speed: | 0-65 R.p.m | Homogenizer Speed: | 0-3600 R.p.m |
| Control: | PLC&Touch Screen / Button | ||
| High Light: | 3 Layers Emulsion Mixer Machine,Lab Emulsion Mixer Machine,SUS316L Mixer Machine For Soap |
||
Product Description

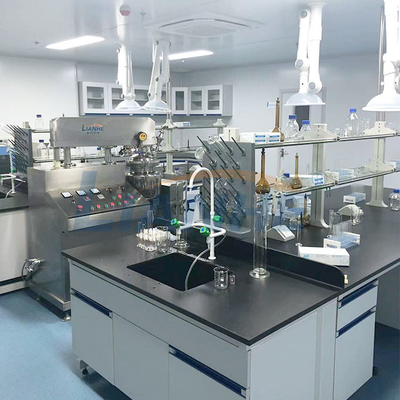

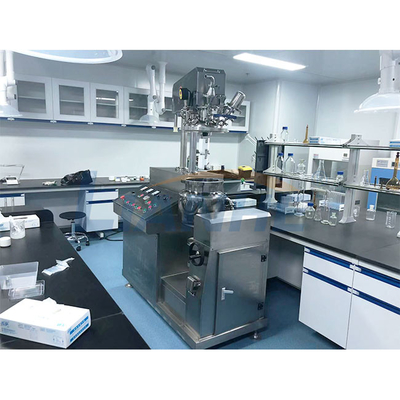

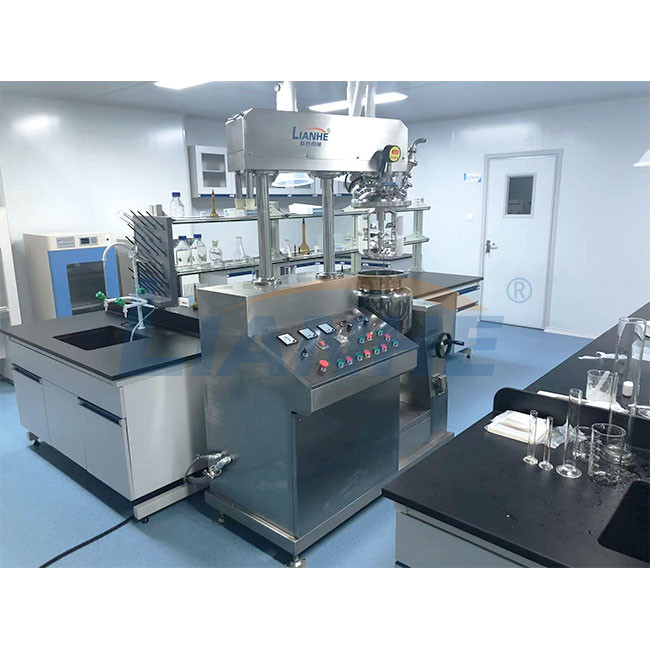

10L Lab Cosmetic Face Cream Making Mixer R&D Department High Shear Mixing Emulsifier
Brief Introduction:
Total volume: 13L, Working volume: 10L
This machine is used for dispersion, homogenization, emulsification, reaction, fermentation, cream preparation, polymer polymerization, synthesis reaction, etc.
- Production of cheeses, lotions, emulsions and preparation of fats in the pharmaceutical and cosmetic industries
- Mix solids such as calcium carbonate, talc, titanium oxide, etc. with the emulsion
- Mix additives and solid polymers with mineral oil
- Grinding and dispersing solids and fibers in liquids and polymers
Technical Parameter:
| Capacity (L) | Homogenizer | Agitator | Vacuum pump | Heating system | ||||
| power (kw) | speed (rpm) | power (kw) | speed (rpm) | power (kw) | Limit vacuum | Electric heating (kw) | Steam heating (Mpa) | |
| 5 | 0.55 | 0-3600 | 0.4 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 10 | 1.1 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 20 | 1.5 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 9 | 0.2 |
| 50 | 3 | 0-3600 | 0.75 | 0-65 | 0.75 | -0.1 | 12 | 0.2 |
| 100 | 4 | 0-3600 | 1.5 | 0-65 | 1.5 | -0.1 | 24 | 0.2 |
| 200 | 5.5 | 0-3600 | 1.5 | 0-65 | 2.2 | -0.1 | 28 | 0.2 |
| 300 | 7.5 | 0-3600 | 3 | 0-65 | 2.2 | -0.1 | 32 | 0.2 |
| 500 | 11 | 0-3600 | 4 | 0-65 | 4 | -0.1 | 50 | 0.2 |
| 1000 | 15 | 0-3600 | 5.5 | 0-65 | 4 | -0.1 | 54 | 0.2 |
| 2000 | 18.5 | 0-3600 | 7.5 | 0-65 | 5.5 | -0.1 | recommend steam heating | 0.2 |
| 5000 | 22.5 | 0-3600 | 15 | 0-65 | 7.5 | -0.1 | 0.2 | |
| The parameters are for reference only, all the machines can be customized according to your needs. | ||||||||
Unique Features:
ØAll stainless steel interlayer constant temperature thermal insulation reaction kettle
ØHumanized flipping function
ØThe equipment is highly modularized, and various systems can be selected
ØHigh-speed motor imported from Germany, long-life design, stable operation
Ø The structure of the whole machine is reasonably designed, the material selection is excellent, and the emulsification system is perfect.
ØStepless speed regulation, the highest speed can reach 5,000rpm, providing you with a shearing line speed of 27m/s
ØMeet your different working environments (closed, open, normal pressure, vacuum)
ØOverload protection, double protection insulation, to give you security
ØThe working head is made of stainless steel, which is reusable and conforms to GMP hygiene standards
ØEquipment modular design, any system can be flexibly combined. Quick disassembly work head.
Optional Configuration:
Ø Reactor system (stainless steel and glass optional)
Ø Emulsifying system (optional for emulsifying and homogenizing head)
ØMixing system (digital display timing mixer optional)
ØTemperature control system (temperature probe optional)
Ø Lifting system (pneumatic assist and electric lift optional)
ØVacuum system (vacuum pump)
Ø Heating system (water bath or oil bath)
ØOnline monitoring system
Application Product:
1) Cosmetics industry: skin care cream, shaving cream, shampoo cream, toothpaste, cold cream, cold sun cream, facial cleanser, nutrient dense, detergent, shampoo, essence, moisturizing cream, hand cream, private gel gel, aloe vera gel, etc.
2) Daily chemicals: laundry detergent, hand sanitizer, toilet cleaning, car glass water, etc.
3) Pharmaceutical industry: latex, emulsion, ointment (ointment), oral syrup, oral liquid, etc.
4) Food industry: sauce, cheese, nutrient solution, baby food, chocolate, sugar, etc.
5) Chemical industry: latex, sauce, saponification products, paints, coatings, resins, adhesives, lubricants, etc.
