Small Lab 65 Rpm High Shear Emulsifier Mixer For Cosmetic Cream Making
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | TUV, CE, SGS, GMP |
| Model Number: | VME-A-5L， VME-A-10L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case / Bubble Film Packaging |
| Delivery Time: | 35 Working Days |
| Payment Terms: | T/T, D/A, L/C |
| Supply Ability: | 20 Sets Per Month |
|
Detail Information |
|||
| Available Capacity: | 5L-6000L | Tank Structure: | 3 Layers Of Steel, 2 Jackets |
|---|---|---|---|
| Material: | SUS316L/SUS304/SUS304 | Heating Method: | Electric Heating / Steam Heating |
| Cooling: | Tap Water / Ice Water Cooling | Mixing Method: | One Way Or Two Way Mixing With Teflon Scraper |
| Mixing Speed: | 0-65 R.p.m | Homogenizer Speed: | 0-3600 R.p.m |
| Control: | PLC&Touch Screen / Button | ||
| High Light: | Small High Shear Emulsifier Mixer,Lab High Shear Emulsifier Mixer,65 Rpm Cosmetic Cream Making Machine |
||
Product Description

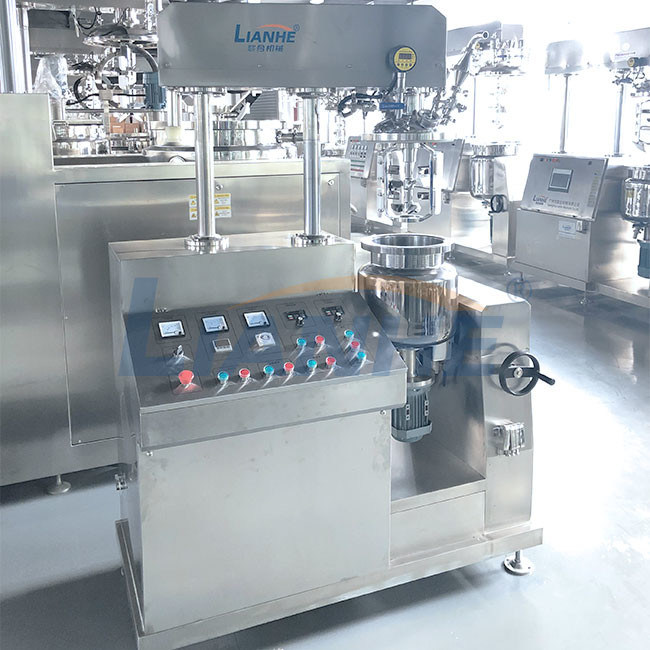

5L 10L Lab Cosmetic Cream Making Machine Mixer Small High Shear Mixing Emulsifier
Brief Introduction:
Total volume: 7L, Working volume: 5L
The processing capacity of VME series standard system is 2L, 5L, 10L, etc. It can realize the process of material dispersion, emulsification, homogenization and mixing under vacuum or pressure environment.
It can be equipped with a variety of macro agitators (optional), high shear homogenizer emulsifier (optional), and reliable vacuum sealing system and temperature control system, and a variety of sensing detection systems can simulate industrial production in a laboratory environment.
This machine is a laboratory-specific equipment used in the research and development and experimental stages of products and meets all the simulation conditions of industrial production equipment.
Technical Parameter:
| Capacity (L) | Homogenizer | Agitator | Vacuum pump | Heating system | ||||
| power (kw) | speed (rpm) | power (kw) | speed (rpm) | power (kw) | Limit vacuum | Electric heating (kw) | Steam heating (Mpa) | |
| 5 | 0.55 | 0-3600 | 0.4 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 10 | 1.1 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 20 | 1.5 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 9 | 0.2 |
| 50 | 3 | 0-3600 | 0.75 | 0-65 | 0.75 | -0.1 | 12 | 0.2 |
| 100 | 4 | 0-3600 | 1.5 | 0-65 | 1.5 | -0.1 | 24 | 0.2 |
| 200 | 5.5 | 0-3600 | 1.5 | 0-65 | 2.2 | -0.1 | 28 | 0.2 |
| 300 | 7.5 | 0-3600 | 3 | 0-65 | 2.2 | -0.1 | 32 | 0.2 |
| 500 | 11 | 0-3600 | 4 | 0-65 | 4 | -0.1 | 50 | 0.2 |
| 1000 | 15 | 0-3600 | 5.5 | 0-65 | 4 | -0.1 | 54 | 0.2 |
| 2000 | 18.5 | 0-3600 | 7.5 | 0-65 | 5.5 | -0.1 | recommend steam heating | 0.2 |
| 5000 | 22.5 | 0-3600 | 15 | 0-65 | 7.5 | -0.1 | 0.2 | |
| The parameters are for reference only, all the machines can be customized according to your needs. | ||||||||
Unique Features:
ØAll stainless steel interlayer constant temperature thermal insulation reaction kettle
ØHumanized flipping function
ØThe equipment is highly modularized, and various systems can be selected
ØHigh-speed motor imported from Germany, long-life design, stable operation
Ø The structure of the whole machine is reasonably designed, the material selection is excellent, and the emulsification system is perfect.
ØStepless speed regulation, the highest speed can reach 5,000rpm, providing you with a shearing line speed of 27m/s
ØMeet your different working environments (closed, open, normal pressure, vacuum)
ØOverload protection, double protection insulation, to give you security
ØThe working head is made of stainless steel, which is reusable and conforms to GMP hygiene standards
ØEquipment modular design, any system can be flexibly combined. Quick disassembly work head.
Working Principle:
The materials are mixed and reacted in the pot by heating and stirring. Since the pot is in a vacuum state, the bubbles generated during the stirring process of the materials are evacuated in time. Vacuuming is used to prevent the products from being mixed with air bubbles during the stirring process, so as to ensure that the products with luster, fineness and good ductility can be produced.
Application Product:
1) Cosmetics industry: skin care cream, shaving cream, shampoo cream, toothpaste, cold cream, cold sun cream, facial cleanser, nutrient dense, detergent, shampoo, essence, moisturizing cream, hand cream, private gel gel, aloe vera gel, etc.
2) Daily chemicals: laundry detergent, hand sanitizer, toilet cleaning, car glass water, etc.
3) Pharmaceutical industry: latex, emulsion, ointment (ointment), oral syrup, oral liquid, etc.
4) Food industry: sauce, cheese, nutrient solution, baby food, chocolate, sugar, etc.
5) Chemical industry: latex, sauce, saponification products, paints, coatings, resins, adhesives, lubricants, etc.
