Sealed Type 500L Stainless Steel Mixing Tanks , Movable Cosmetic Mixing Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | CE, TUV, SGS |
| Model Number: | PMC-500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case / Bubble Film Packaging |
| Delivery Time: | 20 Working Days |
| Payment Terms: | T/T, D/A, L/C |
| Supply Ability: | 20 Sets Per Month |
|
Detail Information |
|||
| Available Capacity: | 30L To 6000L | Tank Structure: | 3 Layers Of Steel, 2 Jacket |
|---|---|---|---|
| Material: | SUS316L/SUS304/SUS304 | Heating Method: | Electric Heating / Steam Heating |
| Cooling: | Water Cooling | Mixing Method: | One Way Or Two Way Mixing With Teflon Scraper |
| Mixing Speed: | 3000RPM | ||
| High Light: | Sealed Stainless Steel Mixing Tanks,500L Stainless Steel Mixing Tanks,Movable Cosmetic Mixing Equipment |
||
Product Description

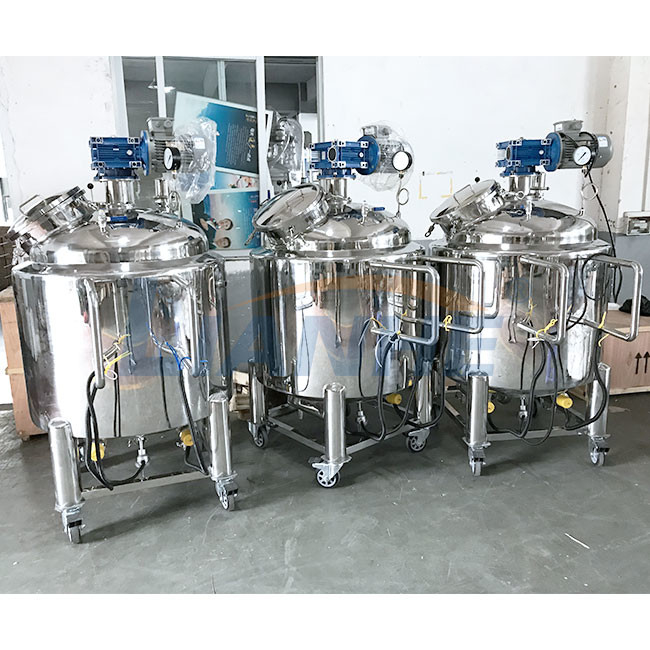

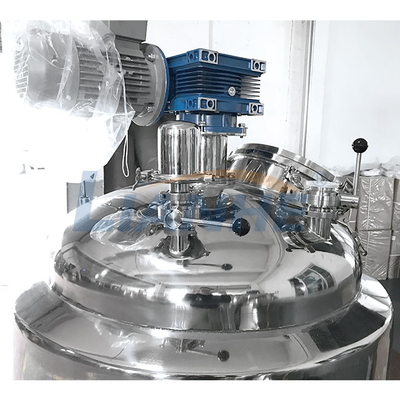

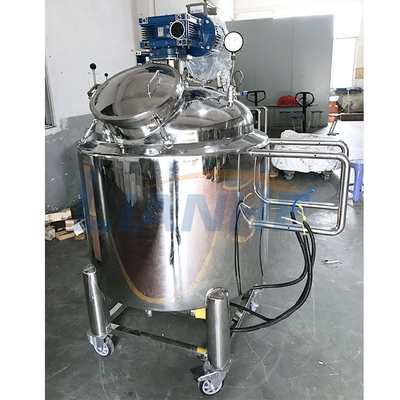

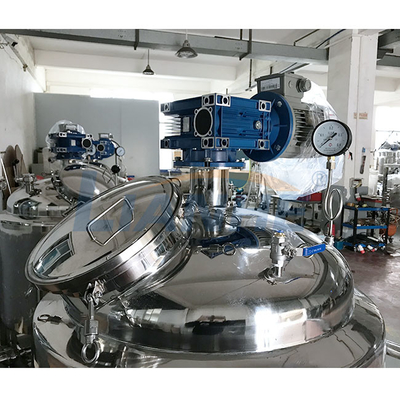

Sealed Type Mixing Tank 500L Movable Sealed Type Mixer With Heating
Brief Introduction:
Sealed Type Mixing Tank 500L Movable Sealed Type Mixer With Heating is made for mixing liquid products, such as chemical like liquid soap, shampoo, hand sanitizer, lotion, detergent, etc. And food products, sauce, mayonnaise, ketchup, juice, etc. And cosmetic products like lipstick, lip gloss, facial mask liquid, cream, etc.
The machine is made of SUS316L for material contact parts that meets GMP standard, it is very popular and productive for above industries.
The machine can be customized with different functions, such as stirring, homogenizing, heating & cooling, vacuum system, lifting system, etc. Usually we will customize the machine according to the products and capacity that clients want to make, to make sure the machine design can perfectly meet their requirements with reasonable and cost effective price.
Technical Parameter:
| Model | Capacity (L) | Agitator | Homiogenizer | Heating system | |||
| power (kw) | speed (rpm) | power (kw) | speed (rpm) | Electric heating (kw) | Steam heating (Mpa) | ||
| PMC-50 | 50 | 0.75 | 0-65 | 3 | 3000 | 6 | Steam heating energy conservation and environmental protection, selected according to need |
| PMC-100 | 100 | 1.5 | 0-65 | 4 | 3000 | 9 | |
| PMC-150 | 150 | 1.5 | 0-65 | 4 | 3000 | 12 | |
| PMC-200 | 200 | 1.5 | 0-65 | 4 | 3000 | 12 | |
| PMC-300 | 300 | 1.5 | 0-65 | 5.5 | 3000 | 18 | |
| PMC-500 | 500 | 2.2 | 0-65 | 7.5 | 3000 | 27 | |
| PMC-1000 | 1000 | 4 | 0-65 | 11 | 3000 | 36 | |
| PMC-1500 | 1500 | 5.5 | 0-65 | 15 | 3000 | 45 | |
| PMC-2000 | 2000 | 7.5 | 0-65 | 15 | 3000 | recommend steam heating | |
| PMC-3000 | 3000 | 11 | 0-65 | 15 | 3000 | ||
| PMC-5000 | 5000 | 11 | 0-65 | 22 | 3000 | ||
| The parameters for reference only, all the machines can be customized accordingly. | |||||||
Application Product:
- Daily Chemical: Liquid soap, shampoo, hand sanitizer, liquid detergent, fabric softener, etc.
- Skin & Hair Care: Body lotion, facial cream, sunscree cream, serum, hair dye, hair conditioner, etc.
- Pharmaceutical: Ointment, erythromycin eye ointment, Compound Dexamethasone Acetate, etc.
- Food: Mayonnaise, ketchup, cheese, sauce, paste, coconut oil, juice, etc.
Features:
- A full range of scraping wall stirring frequency converter speed, according to customer requirements of different production of high-quality products;
- A variety of high-speed homogenizer, strong mixing of solid and liquid in the lotion production can quickly dissolve AES, AESA, LSA, Such as insoluble materials, saving energy consumption, greatly reducing the production cycle;
- The pot body is made of three layers of stainless steel imported welding composition, the tank body and its passage are mirror polished, fully in line with GMP requirements;
- According to process requirements, the tank can be heated and cooled materials, heating methods are mainly steam and electric heating two;Discharge convenient, can be directly discharged, but also configure the pump discharge
Service:
-
Warranty: One year since the date of installation. If there is any wearing parts be within the warranty and isn’t caused by un-proper operation, Lianhe will offer new parts for free.
-
Inspection: Buyer could visit our factory for site inspection, we could also send some machine testing videos to buyer if buyer couldn't come.
-
Machine Installation or Fixing: On site installation is available, Lianhe can send 1-2 technicians to buyer's factory for installation, testing and training. We can also provide online installation guidance instead, and provide you some 3D videos, instruction videos if buyer prefer installing by themselves.
-
Lifetime maintenance assistance and online video call service.
