50L Vacuum High Shear Emulsifier Mixer PLC Control For Ice Water Cooling
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | TUV, CE, SGS, GMP |
| Model Number: | VME-A-50L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case / Bubble Film Packaging |
| Delivery Time: | 35 Working Days |
| Payment Terms: | T/T, D/A, L/C |
| Supply Ability: | 20 Sets Per Month |
|
Detail Information |
|||
| Available Capacity: | 5L-6000L | Tank Structure: | 3 Layers Of Steel, 2 Jackets |
|---|---|---|---|
| Material: | SUS316L/SUS304/SUS304 | Heating Method: | Electric Heating / Steam Heating |
| Cooling: | Tap Water / Ice Water Cooling | Mixing Method: | One Way Or Two Way Mixing With Teflon Scraper |
| Mixing Speed: | 0-65 R.p.m | Homogenizer Speed: | 0-3600 R.p.m |
| Control: | PLC&Touch Screen / Button | ||
| High Light: | 50L High Shear Emulsifier Mixer,Vacuum High Shear Emulsifier Mixer,PLC Ointment Mixer Machine |
||
Product Description
50L Vacuum Cosmetic Lotion Paste Emulsifier High Shear Skin Care Cream Heating Mixer
Brief Introduction:
Total volume: 63L, Working volume: 50L

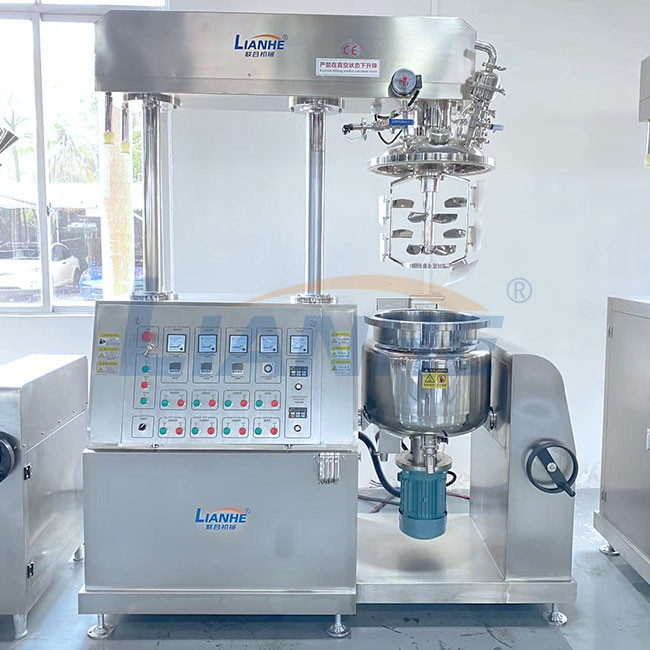

The vacuum emulsifier mixer is composed of mixing, homogenizing, dispersing, emulsifying and Plc or button control system and also be used with oil, water phase, vacuum, heating/cooling system, ect. Materials go through the upper tank stirring, PTFE scraper will sweep the wall sticky materials, and then after the blades and rotary blades cut, compressed, The materials is cut in the high shear condition, due to the emulsification tank in a vacuum condition, the bubbles generated in the mixing process is promptly removed.
Lifting lid means the lid of main pot tank can be lifted and the main pot tank can be tilt discharged to discharge material , which can easily clean rhe pot and save production time.
Technical Parameter:
| Capacity (L) | Homogenizer | Agitator | Vacuum pump | Heating system | ||||
| power (kw) | speed (rpm) | power (kw) | speed (rpm) | power (kw) | Limit vacuum | Electric heating (kw) | Steam heating (Mpa) | |
| 5 | 0.55 | 0-3600 | 0.4 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 10 | 1.1 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 20 | 1.5 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 9 | 0.2 |
| 50 | 3 | 0-3600 | 0.75 | 0-65 | 0.75 | -0.1 | 12 | 0.2 |
| 100 | 4 | 0-3600 | 1.5 | 0-65 | 1.5 | -0.1 | 24 | 0.2 |
| 200 | 5.5 | 0-3600 | 1.5 | 0-65 | 2.2 | -0.1 | 28 | 0.2 |
| 300 | 7.5 | 0-3600 | 3 | 0-65 | 2.2 | -0.1 | 32 | 0.2 |
| 500 | 11 | 0-3600 | 4 | 0-65 | 4 | -0.1 | 50 | 0.2 |
| 1000 | 15 | 0-3600 | 5.5 | 0-65 | 4 | -0.1 | 54 | 0.2 |
| 2000 | 18.5 | 0-3600 | 7.5 | 0-65 | 5.5 | -0.1 | recommend steam heating | 0.2 |
| 5000 | 22.5 | 0-3600 | 15 | 0-65 | 7.5 | -0.1 | 0.2 | |
| The parameters are for reference only, all the machines can be customized according to your needs. | ||||||||
Mixing Design:
The SUS316L paddle mix anticlockwise, Speed: 0-65r/min.
Teflon Scraper, Scraping the wall during mixing to reduce the sticking of materials to the tank.
The stirring paddle of the emulsifying mixer is hygienically polished, with no dead corner welding and no material residue.
Oil pot and Water pot:
The oil and water pot mixers have exactly the same construction. There's a high speed disperser mounted from the top of the cover which helps dissolve the ingredients. Some customers will omit the oil and water phase mixers and keep the main emulsification machine only.
Application Product:
The product is mainly applied in such industries as daily chemical care products, biopharmaceutical industry, food industry, paint and ink, nanometer materials, petrochemical industry, printing and dyeing auxiliaries, pulp & paper, pesticide, fertilier, plastic & rubber, electrics and electronics, fine chemical industry, etc. The emulsifying effect is more prominent for materials of high base viscosity and high solid content.
- Skin & Hair Care: Body lotion, Facial cream, Sunscree cream, Serum, Hair dye, Hair conditioner, etc.
- Cosmetic: Liquid foundation, Gel, BB cream, mascara, Lipstick, Concealer, Lip gloss, etc.
- Pharmaceutical: Ointment, Erythromycin eye ointment, Compound Dexamethasone Acetate, Skin repair gels, Scald creams, etc.
- Food: Mayonnaise, ketchup, Cheese, Sauce, Paste, Coconut oil, etc.
