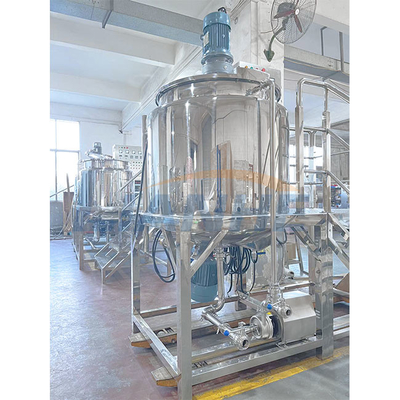

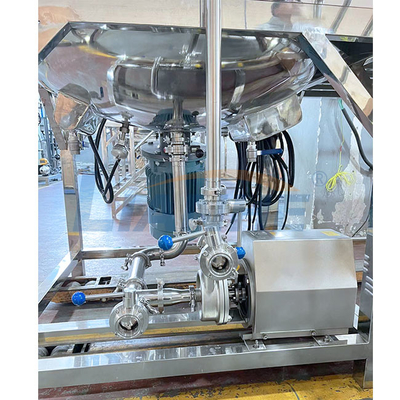

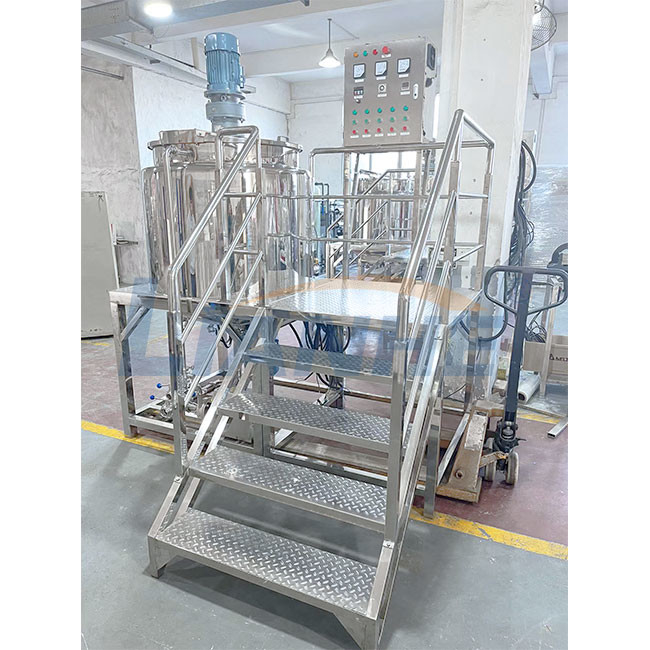

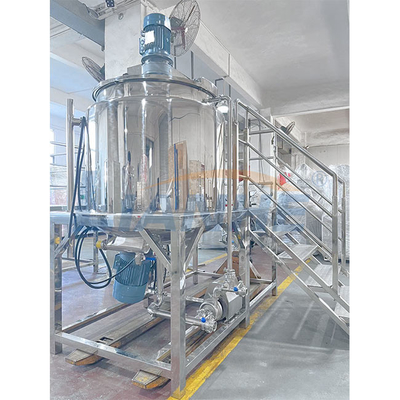

500L Rustproof Lipstick Mixing Machine , SUS304 Dish Wash Liquid Making Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | CE, TUV, SGS, GMP |
| Model Number: | PMC-500L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case / Bubble Film Packaging |
| Delivery Time: | 30 Working Days |
| Payment Terms: | T/T, D/A, L/C |
| Supply Ability: | 20 Sets Per Month |
|
Detail Information |
|||
| Available Capacity: | 30L To 6000L | Tank Structure: | 3 Layers Of Steel, 2 Jacket |
|---|---|---|---|
| Material: | SUS316L/SUS304/SUS304 | Heating Method: | Electric Heating / Steam Heating |
| Cooling: | Water Cooling | Mixing Method: | One Way Or Two Way Mixing With Teflon Scraper |
| Mixing Speed: | 0-65RPM | Homogenizer Speed: | 3000RPM |
| High Light: | 500L Lipstick Mixing Machine,Rustproof Lipstick Mixing Machine,SUS304 Dish Wash Liquid Making Machine |
||
Product Description
Circulating Type Emulsifier Shampoo Machine 500L High Shear Lotion Heating Mixer
Brief Introduction:
Total volume: 600L, Working volume: 500L; The volume of foam at the edge, which we did not count.
This PMC series is the most advanced blending equipment in fields of Chemical, pharmaceutical, food, etc. When the high-speed super-fine emulsification paddle works, it throws the materials in the center of rotor to stator at a high speed,then through tooth clearance of stator,and shearing,collision and crushing between rotor and stator,the super-fine emulsification is realized. therefore,it is an integrated equipment comprising functions such as blending,emulsifying,homogenizing,solving and crushing.
Technical Parameter:
|
Model |
Capacity (L) |
Agitator |
Homiogenizer |
Heating system |
|||
|
power (kw) |
speed (rpm) |
power (kw) |
speed (rpm) |
Electric heating (kw) |
Steam heating (Mpa) |
||
|
PMC-50 |
50 |
0.75 |
0-65 |
3 |
3000 |
6 |
Steam heating energy conservation and environmental protection, selected according to need |
|
PMC-100 |
100 |
1.5 |
0-65 |
4 |
3000 |
9 |
|
|
PMC-150 |
150 |
1.5 |
0-65 |
4 |
3000 |
12 |
|
|
PMC-200 |
200 |
1.5 |
0-65 |
4 |
3000 |
12 |
|
|
PMC-300 |
300 |
1.5 |
0-65 |
5.5 |
3000 |
18 |
|
|
PMC-500 |
500 |
2.2 |
0-65 |
7.5 |
3000 |
27 |
|
|
PMC-1000 |
1000 |
4 |
0-65 |
11 |
3000 |
36 |
|
|
PMC-1500 |
1500 |
5.5 |
0-65 |
15 |
3000 |
45 |
|
|
PMC-2000 |
2000 |
7.5 |
0-65 |
15 |
3000 |
recommend steam heating |
|
|
PMC-3000 |
3000 |
11 |
0-65 |
15 |
3000 |
||
|
PMC-5000 |
5000 |
11 |
0-65 |
22 |
3000 |
||
|
The parameters for reference only, all the machines can be customized accordingly. |
|||||||
Application Product:
1. Cosmetics industry: skin cream, shaving cream, sunscreen, facial cleanser, nutritional honey, dye cream, ion iron, hydrogen peroxide, etc., essence, moisturizing cream, hand cream, etc.
2. Daily chemical industry: detergent, shampoo, shower gel, conditioner, laundry detergent, hand sanitizer, toilet cleaning, car glass water, detergent, tire wax, cleaning cream, etc.
3. Pharmaceutical industry: latex, emulsion, various ointments (ointments), antibiotics, injections, oral syrups, oral liquids, gels, etc.
4. Food industry: jam, chili sauce, food slurry, condiment, cheese, nutrient solution, baby food, chocolate, sugar, etc.
5. Chemical industry: latex, saponified products, paints, coatings, resins, adhesives, New materials, etc.
6. Comprehensive: production equipment for various liquid products such as resin coatings, paints, shoe polish, chemical fibers, etc., supports a variety of liquid technologies, the machine has beautiful appearance, low noise, and is easy to move. The machine can be customized according to requirements, can be heated at a constant temperature, and can be selected from various styles of stirring blades.
Features:
1. Blending system adopts single-direction or double-direction wall scraping blending to satisfy different technological requirement.
2.Made of imported SUS304 or SUS316L stainless steel. The tank body and pipe are subjected to mirror polishing.
3.Material can be heated or cooled according to your formula (technological requirements)
4. Electric heating or steam heating.
5.Various forms of blending vanes are suitable for production of different types of products.
6.The stainless steel electric control cabinet can completely supervise the operation of equipment, and display such data as temperature and blending rotation speed, etc.
