Detergent Soap High Shear Emulsifier Mixer 11KW 3000L SUS316L Material
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | CE, TUV, SGS, GMP |
| Model Number: | PMC-3000L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case / Bubble Film Packaging |
| Delivery Time: | 30 Working Days |
| Payment Terms: | T/T, D/A, L/C |
| Supply Ability: | 20 Sets Per Month |
|
Detail Information |
|||
| Available Capacity: | 30L To 6000L | Tank Structure: | 3 Layers Of Steel, 2 Jacket |
|---|---|---|---|
| Material: | SUS316L/SUS304/SUS304 | Heating Method: | Electric Heating / Steam Heating |
| Cooling: | Water Cooling | Mixing Method: | One Way Or Two Way Mixing With Teflon Scraper |
| Mixing Speed: | 0-65RPM | Homogenizer Speed: | 3000RPM |
| High Light: | Soap High Shear Emulsifier Mixer,11KW High Shear Emulsifier Mixer,SUS316L Detergent Soap Mixer Machine |
||
Product Description
3000L High Shear Detergent Mixer Steam Heating Shampoo Emulsifier Tank
Brief Introduction:

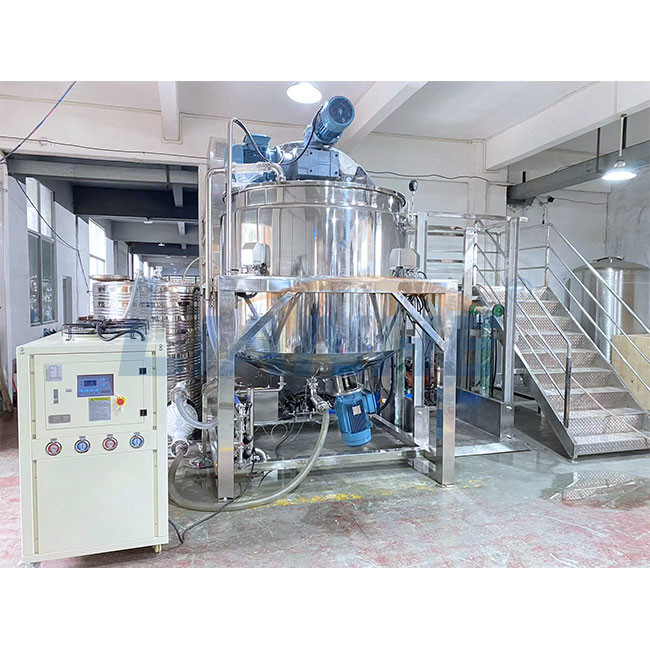

The 3000L high shear emulsifier mixer is a multifunctional industrial machine. It can be used to produce liquid products such as body wash, hand soap, liquid soap, shampoo, hand soap gel, almond pulp, sauce, juice, etc.

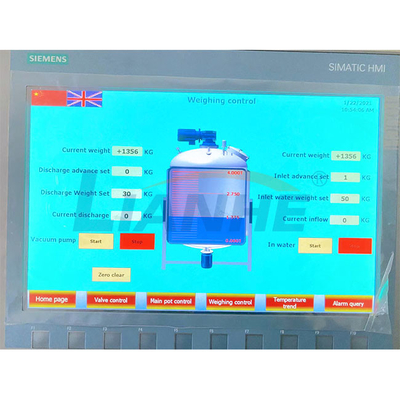

Weighing system:
The weighing module is installed on the force point of the High shear mixer.
We can set the volume of water, or the weight of raw materials through the touch screen. When the weight reaches our preset number, the valve will automatically close and stop feeding water or raw materials.

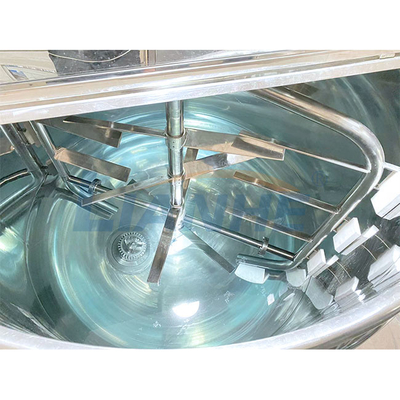

Mixing Design:
Two-way mixing design. Helps you get better blending results.
The inner paddles turn counterclockwise, and the outer paddles turn clockwise. Because of the crossed rotation, the mixing effect is very good. In addition, the paddles of the inner ring and outer ring can be controlled separately, so this design can be suitable for different formulas.
Technical Parameter:
| Model | Capacity (L) | Agitator | Homiogenizer | Heating system | |||
| power (kw) | speed (rpm) | power (kw) | speed (rpm) | Electric heating (kw) | Steam heating (Mpa) | ||
| PMC-50 | 50 | 0.75 | 0-65 | 3 | 3000 | 6 | Steam heating energy conservation and environmental protection, selected according to need |
| PMC-100 | 100 | 1.5 | 0-65 | 4 | 3000 | 9 | |
| PMC-150 | 150 | 1.5 | 0-65 | 4 | 3000 | 12 | |
| PMC-200 | 200 | 1.5 | 0-65 | 4 | 3000 | 12 | |
| PMC-300 | 300 | 1.5 | 0-65 | 5.5 | 3000 | 18 | |
| PMC-500 | 500 | 2.2 | 0-65 | 7.5 | 3000 | 27 | |
| PMC-1000 | 1000 | 4 | 0-65 | 11 | 3000 | 36 | |
| PMC-1500 | 1500 | 5.5 | 0-65 | 15 | 3000 | 45 | |
| PMC-2000 | 2000 | 7.5 | 0-65 | 15 | 3000 | recommend steam heating | |
| PMC-3000 | 3000 | 11 | 0-65 | 15 | 3000 | ||
| PMC-5000 | 5000 | 11 | 0-65 | 22 | 3000 | ||
| The parameters for reference only, all the machines can be customized accordingly. | |||||||
Application Product:
- Daily Chemical: Liquid soap, shampoo, hand sanitizer, liquid detergent, fabric softener, etc.
- Skin & Hair Care: Body lotion, facial cream, sunscree cream, serum, hair dye, hair conditioner, etc.
- Pharmaceutical: Ointment, erythromycin eye ointment, Compound Dexamethasone Acetate, Mouthwash, etc.
- Food: Mayonnaise, ketchup, cheese, sauce, paste, coconut oil,almond pulp, Orange juice, etc.
Features:
- The all-around wall Teflon scraping mixing adopts the frequency inverter for speed adjustment, so it can be adjusted to make different products with different manufacturing requirements.
- The diversified high-speed homogenizer can powerfully mix solid, oil and liquid raw materials and can rapidly dissolve many indissoluble materials such as AES, AESA, LSA,etc.
- The pot body is welded by SUS316 three-layer stainless steel plate.the tank body and the pipes adopt 5 times mirror polishing, which fully conforms to GMP standard requirements.
- The motor for homogenizer and mixing paddle, we only use Siemens or ABB, with higher quality, better stability and longer service life.
- All main parts of the machine are adopted with international brands, such as Delta, Schneider, Siemens, Omron, etc.
