Stable 65RPM Sanitiser Manufacturing Machine For Home Rustproof
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | CE, TUV, SGS |
| Model Number: | VME-H150 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case / Bubble Film Packaging |
| Delivery Time: | 30 Working Days |
| Payment Terms: | T/T, D/A, L/C |
| Supply Ability: | 20 Sets Per Month |
|
Detail Information |
|||
| Main Tank Structure: | 3 Layers, 2 Jackets | Material: | SUS316L/SUS304/SUS304 (in/mid/out) |
|---|---|---|---|
| Design Capacity: | 187L | Working Capacity: | 150L |

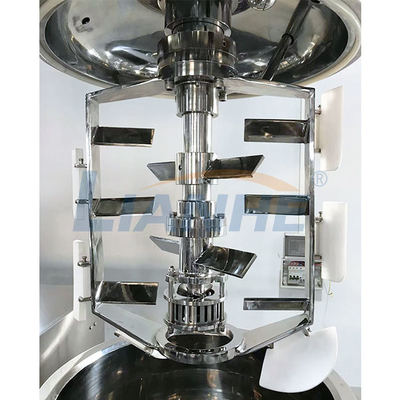

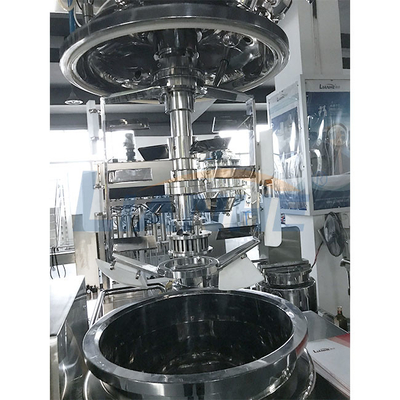

| Mixing Speed: | 0-65RPM | Mixing Method: | Two Way Mixing With Wall Scraper |
| Homogenizer: | 0-3600RPM | Tank Structure: | Main Tank + Water Tank + Oil Tank |
| Vacuum System: | -0.1MPa | ||
| High Light: | Stable Sanitiser Manufacturing Machine,65RPM Sanitiser Manufacturing Machine,Rustproof Sanitizer Making Machine For Home |
||
Product Description
350L Vacuum Emulsifier Mixer Top Homogenizer Two Mixing Design
Brief Introduction:

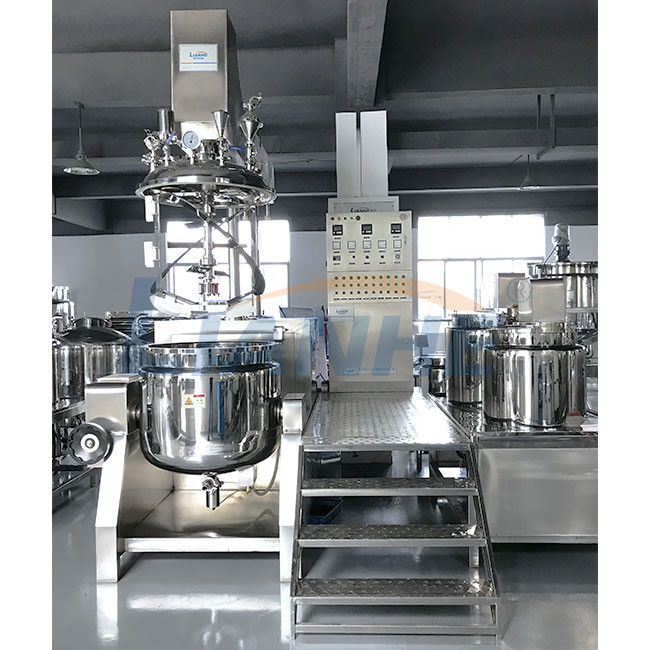

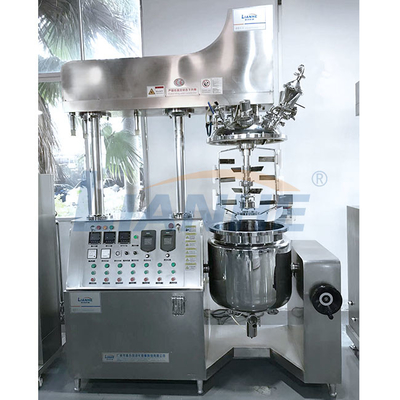

The vacuum emulsifier mixer mainly consists of water tank, oil tank, emulsifying tank (main tank), vacuum system, hydraulic lifting system (optional), button or PLC control system, operation platform, etc.
The machine is widely used in Cosmetic, Daily Chemical, Food and Pharmaceutical area for manufacturing viscous and none-viscous liquid products, such as cream, paste, sanitizer gel, body lotion, hair dye, ointment, sauce, mayonnaise, etc.
Featured by easy operation, stable performance, good homogenizing performance, high productivity, easy cleaning, reasonable structure, space saving, etc.
Technical Parameter:
| Capacity (L) | Homogenizer | Agitator | Vacuum pump | Heating system | ||||
| power (kw) | speed (rpm) | power (kw) | speed (rpm) | power (kw) | Limit vacuum | Electric heating (kw) | Steam heating (Mpa) | |
| 5 | 0.55 | 0-3600 | 0.4 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 10 | 1.1 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 20 | 1.5 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 9 | 0.2 |
| 50 | 3 | 0-3600 | 0.75 | 0-65 | 0.75 | -0.1 | 12 | 0.2 |
| 100 | 4 | 0-3600 | 1.5 | 0-65 | 1.5 | -0.1 | 24 | 0.2 |
| 200 | 5.5 | 0-3600 | 1.5 | 0-65 | 2.2 | -0.1 | 28 | 0.2 |
| 300 | 7.5 | 0-3600 | 3 | 0-65 | 2.2 | -0.1 | 32 | 0.2 |
| 500 | 11 | 0-3600 | 4 | 0-65 | 4 | -0.1 | 50 | 0.2 |
| 1000 | 15 | 0-3600 | 5.5 | 0-65 | 4 | -0.1 | 54 | 0.2 |
| 2000 | 18.5 | 0-3600 | 7.5 | 0-65 | 5.5 | -0.1 | recommend steam heating | 0.2 |
| 5000 | 22.5 | 0-3600 | 15 | 0-65 | 7.5 | -0.1 | 0.2 | |
| The parameters are for reference only, all the machines can be customized according to your needs. | ||||||||
Application Product:
- Skin & Hair Care: Body lotion, facial cream, sunscree cream, serum, hair dye, hair conditioner, etc.
- Cosmetic: Liquid foundation, BB cream, mascara, lipstick, concealer, lip gloss, etc.
- Pharmaceutical: Ointment, erythromycin eye ointment, Compound Dexamethasone Acetate, etc.
- Food: Mayonnaise, ketchup, cheese, sauce, paste, coconut oil, etc.
Performances And Features:
- SIEMENS frequency converter for speed adjustment, which can meet production of different technology requirement.
- The vacuum defoaming can make the materials meet the requirement of being aseptic.The vacuum material sucking adopted can avoid dust,especially for the powder products.
- Burgmann mechanical sealing, good sealing effect and long service life.
- The tank body and the pipes adopted with mirror polishing, which fully conforms to GMP standards.
- All material contact parts use SUS316L stainless steel.
- The heating method mainly include electric or steam heating for customer's choice, electric heating is more popular for small tanks.
- Advanced PLC touch screen control and button control are optional.
- The emulsifying pot lid can adopt hydraulic lifting system, easy to clean and the cleaning effect is more obvious, the emulsifying pot can adopt tilting discharge.
