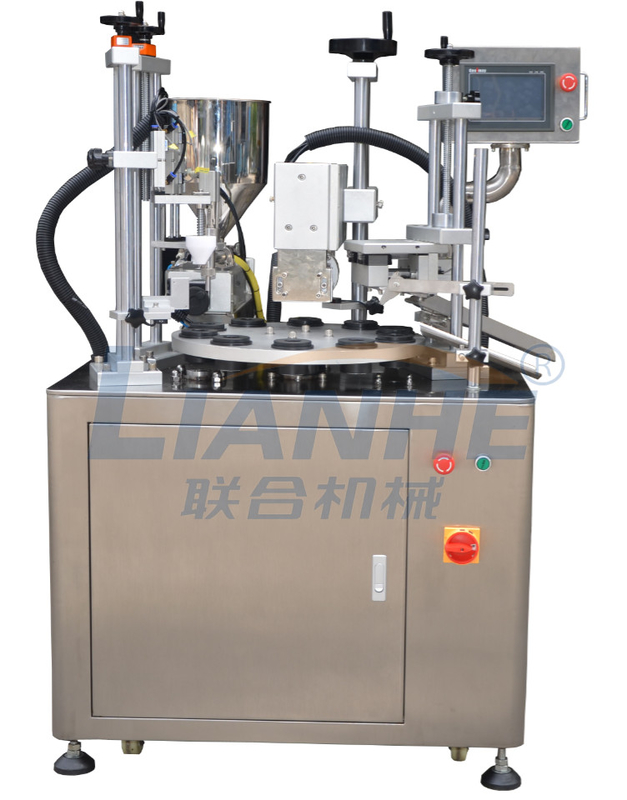

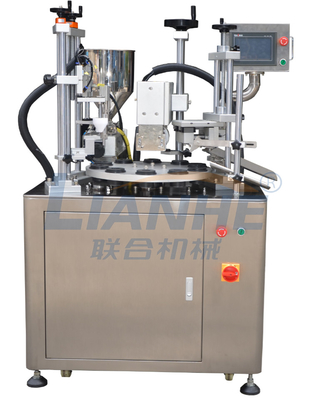

Semi Automatic Tube Filling Machine 5-250ml Multifunctional Durable
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | CE , ISO , SGS , TUV |
| Model Number: | LH-FS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Packaging Details: | Normally packaged in wooden case or wrapping film, also can be customized |
| Delivery Time: | 20 working days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 30 Sets per Month |
|
Detail Information |
|||
| Material: | SUS304/316L | Filling Range: | 5-250ml |
|---|---|---|---|
| Tube Length: | 50-210 Mm | Batch Printing: | Available |
| Key Selling Points: | High-Accuracy | Function: | Automatic Positioning, Filling, Heating, Sealing |
| High Light: | 5ml Tube Filling Machine,250ml Tube Filling Machine,Multifunctional Semi Automatic Tube Filling Machine |
||
Product Description
Semi Automatic Cream Toothpaste Tube Filling Machine Sealing For Plastic Tube
Product Description:
This machine is mainly used for composite hose, plastic tube is a quantitative filling, packing container materialand sealing, this machine is w idely used in pharmaceutical, chemical, food, chemical and other industries packaging. Such as cream, skin cream, toothpaste, shoe polish, glue, AB glue, epoxy glue, hair coloring agent, etc., liquid or cream filling and sealing.
Product Parameters:
|
Filling volume |
5-250ml(tube) |
|
Filling accuracy |
≤±1% |
|
Capacity |
40 tubes/min(normal type); 60-70 tubes/min(high speed type) |
|
Tube diameter |
OD10-50mm |
|
Tube length |
210mm(Max. length) |
|
Hopper volume |
40L |
|
Power |
220V/380V, can be customized |
|
Air pressure |
1.1KW |
|
Equipped motor |
0.5-0.7Mpa |
|
Air feeding |
0.37KW |
|
Convulsions |
0.37KW |
|
Hot air |
3KW |
|
Dimension |
3KW |
|
Weight |
1800kg (approx) |
Product Application:
The tube filling and sealing machine is suitable for automatic color code aligning, filling, sealing, date printing and end cutting of various plastic tubes and aluminum composite tubes. It is widely applied in daily chemical industry, medicine, food, etc.
Product Features:
1. 8-station turntable: Tube holder is designed for positioning the tubes, enabling them to be filled and sealed well. The molds can be customized according to tube's size.

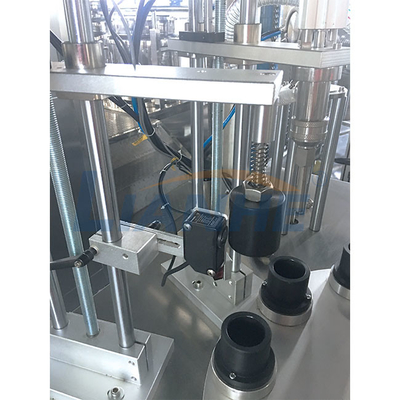

2. Cursor Positioning: Automatic detection and positioning. No tube no filling and no sealing.
3. Filling Head: Filling accuracy≤ ±1% and Anti-drip filling nozzle.

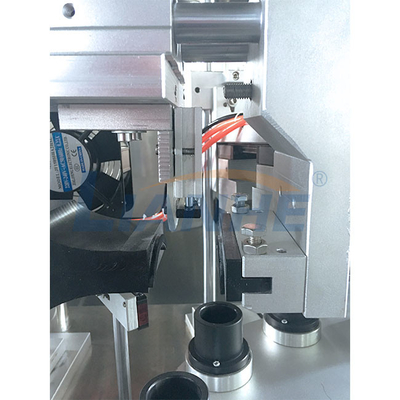

4. Sealing: Heating or ultrasonic sealing. Simple operation: fast welding speed; high welding strength; high work efficiency.
5. Cutter: Automatically cut off the remaining material to make the seal more smooth.
