ISO Leakproof Toothpaste Packaging Machine , SUS304 Ointment Filling Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | CE , ISO , SGS , TUV |
| Model Number: | LH-FS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Packaging Details: | Normally packaged in wooden case or wrapping film, also can be customized |
| Delivery Time: | 20 working days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 30 Sets per Month |
|
Detail Information |
|||
| Material: | SUS304/316L | Filling Range: | 5-250ml |
|---|---|---|---|
| Tube Length: | 50-210 Mm | Batch Printing: | Available |
| Filling Speed 1: | 40 Tubes/min | Filling Speed 2: | 60-70 Tubes/min |
| High Light: | ISO Toothpaste Packaging Machine,Leakproof Toothpaste Packaging Machine,SUS304 Ointment Filling Machine |
||
Product Description

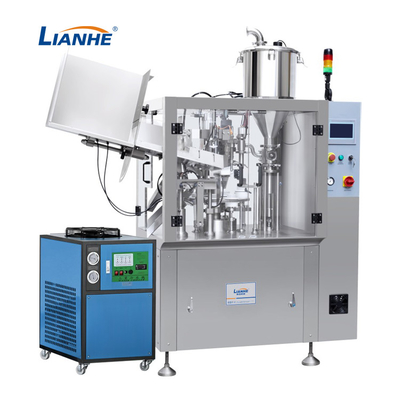

Automatic Tube Filling and Sealing Machine Toothpaste Ointment Filler and Sealer
Product Description:
Automatic tube filling and sealing machine used for plastic, aluminum, laminate tube. It is one of main latest products of our company.
This machine can be used for filling cream and liquid materials. and it is characteristics with firm filling, high precision of dosage. The three functions of filling, sealing and batch numbering can be automatically completed, It is widely used in pharmaceutical, daily chemical, food chemical industries. such as filling pharmacy cream, hair colorante, toothpaste, leather oil, glue, AB glue, Nanp-epoxy adhesive, Neoprene adhesive etc. Convenient and quick dosage adjustment, high efficiency, good-looking, compact structures are the features of the machine. The tube cups can be adjusted according to the tube dimensions. The important parts of the machine which contact directly to the filling material are made of stainless steel (SUS304 is for general use, and SUS316L is for pharmacy use). A special valve makes this machine be suitable for filling cream and liquid material. It is an ideal and economical filling machine in the pharmacy, daily chemical and other fields.
Product parameters:
| Filling volume | 5-250ml(tube) |
| Filling accuracy | ≤±1% |
| Capacity | 40 tubes/min(normal type); 60-70 tubes/min(high speed type) |
| Tube diameter | OD10-50mm |
| Tube length | 210mm(Max. length) |
| Hopper volume | 40L |
| Power | 220V/380V, can be customized |
| Air pressure | 1.1KW |
| Equipped motor | 0.5-0.7Mpa |
| Air feeding | 0.37KW |
| Convulsions | 0.37KW |
| Hot air | 3KW |
| Dimension | 3KW |
| Weight | 1800kg (approx) |
Product Application:
The tube filling and sealing machine is suitable for automatic color code aligning, filling, sealing, date printing and end cutting of various plastic tubes and aluminum composite tubes. It is widely applied in daily chemical industry, medicine, food, etc.
Product Features:
- Tube feeding and Tube washing , marking identification, filling, hot air sealing, codeprinting trimming and ejecting out the tube conducted by a fully auto control system.
- Tube washing and feeding are conducted pneumatically, accurate and reliable.
- Auto picketage affected by photoelectric inductance.
- The materials contacting part is made of 316L stainless steel, clean, sanitary and conforming to GMP for medicine manufacture.
- With safety device, the machine is shut down when the door is opened and no tube no filling. Overload protection provided.
Product Details:
Our Servers:
We provide Turn-key project service to customer.
1. Factory Layout design;
2. Factory Decoration based on GMP standard;
3. Formula of products;
4. Raw material etc;
5. Machine design, whole production line from A to Z;
6. Shipping service, FOB, CFR, CIF etc;
7. Installation service. Training service, Mainte
