40L Tube Filling Sealing Machine , Ultrasonic Ointment Tube Filler
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | CE , ISO , SGS , TUV |
| Model Number: | LH-FS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Packaging Details: | Normally packaged in wooden case or wrapping film, also can be customized |
| Delivery Time: | 20 working days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 30 Sets per Month |
|
Detail Information |
|||
| Material: | Stainless Steel 304/316 | Filling Range: | 5-250ml |
|---|---|---|---|
| Tube Length: | 50-210 Mm | Key Selling Points: | High-Accuracy |
| Function: | Filling And Sealing | Video Outgoing-inspection: | Provided |
| High Light: | 40L Tube Filling Sealing Machine,Ointment Tube Filling Sealing Machine,Ultrasonic Ointment Tube Filler |
||
Product Description
Ultrasonic Tube Filling and Sealing Machine for Cream and Skin Care Product
Product Description:
The tube filling & sealing machine is specially designed according to technology of cosmetics, cream jellies, toothpaste, lotion, jam and viscosity material, sealing or tail folding, batch number embossing (include manufacture date) automatically. machine include automatic tube feeding, heating, sealing, pretreatment system, filling adopt mechanical piston, electrical control system and operation platform system.
Product Parameters:
|
Filling volume |
5-250ml(tube) |
|
Filling accuracy |
≤±1% |
|
Capacity |
40 tubes/min(normal type); 60-70 tubes/min(high speed type) |
|
Tube diameter |
OD10-50mm |
|
Tube length |
210mm(Max. length) |
|
Hopper volume |
40L |
|
Power |
220V/380V, can be customized |
|
Air pressure |
1.1KW |
|
Equipped motor |
0.5-0.7Mpa |
|
Air feeding |
0.37KW |
|
Convulsions |
0.37KW |
|
Hot air |
3KW |
|
Dimension |
3KW |
|
Weight |
1800kg (approx) |
Product Application:
The tube filling and sealing machine is suitable for automatic color code aligning, filling, sealing, date printing and end cutting of various plastic tubes and aluminum composite tubes. It is widely applied in daily chemical industry, medicine, food, etc.
Product Features:
1. Easy to operate and maintain.
2. Automatic positioning, filling, welding, cutting and trimming, printing code in one time.
3. Stainless steel machine body, strong and beautiful looks,
4. Sealing mould can be customized according to customer requirements. Can seal many size of tubes.
5. Ultrasonic Sealing Machine power source for the pneumatic, working steady, not easy to damage, customers can rest assured use.
6. Ultrasonic frequency can meet international standard, no harmful to human being or environment
7. Can be work in time, not need wait the heat time.

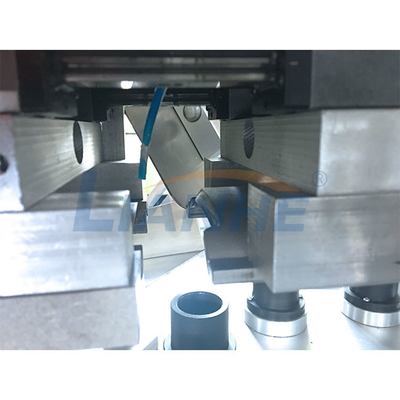

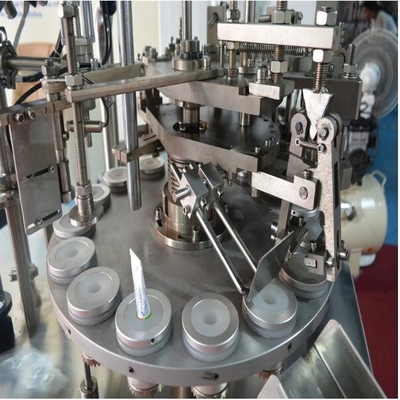

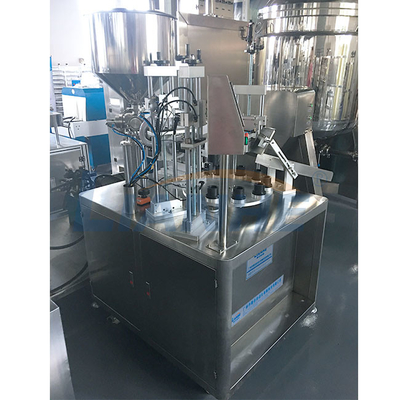

Product Details:
Our Servers:
We provide Turn-key project service to customer.
1. Factory Layout design;
2. Factory Decoration based on GMP standard;
3. Formula of products;
4. Raw material etc;
5. Machine design, whole production line from A to Z;
6. Shipping service, FOB, CFR, CIF etc;
7. Installation service. Training service, Mainte
