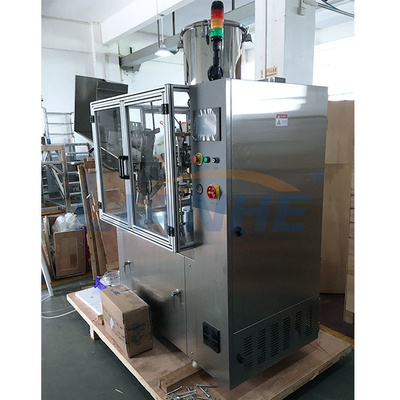

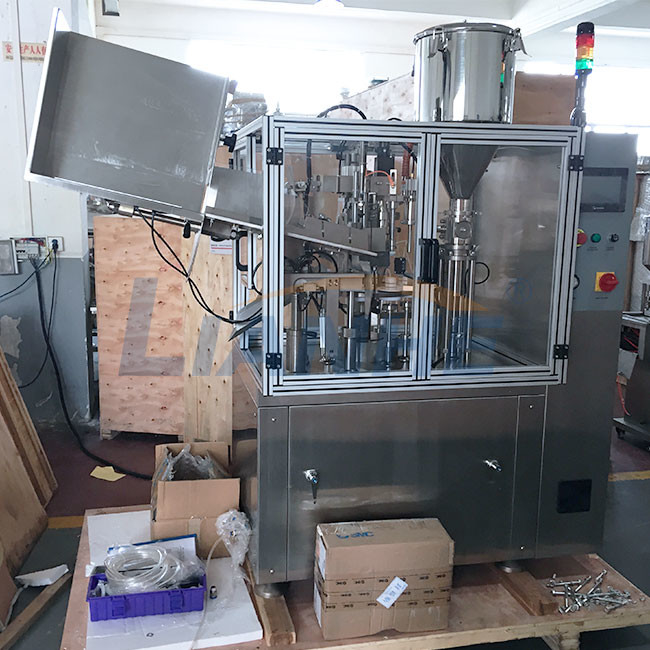

110V/220V Cream Tube Filling Machine Length 210mm Anti Drop Stable
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | CE , ISO , SGS , TUV |
| Model Number: | LH-AFS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Packaging Details: | Normally packaged in wooden case or wrapping film, also can be customized |
| Delivery Time: | 20 working days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 30 Sets per Month |
|
Detail Information |
|||
| Product Name: | Automatic Filling And Sealing Machine | Material: | Stainless Steel 304/316L |
|---|---|---|---|
| Filling Speed: | 20-60 Tubes Per Minute Optional | Filling Material: | Ointment, Cream, Toothpaste, Facial Cleanser |
| Voltage: | 110V / 220V / 380V , Customizable | Tube Material: | Plastic, Aluminum Tube |
| High Light: | 110V Tube Filling Machine,220V Tube Filling Machine,210mm Cream Tube Filling Machine |
||
Product Description
Cosmetic Cream Tube Filling Machine Plastic Aluminum Tube Sealer
Product Description:
Filling and sealing machine is made of stainless steel. The working processes are controlled by the buttons. Such processes include manual tube feeding, automatic turning, ration filling, automatic cutting and heating & sealing. All the processes are button controlled by the cylinder. The filling volume is easy to adjust and the filling speed is tunable. This machine is used to fill and seal all kinds of plastic and laminated tubes. The appearance of the sealing is neat and firm. According to different materials, we can choose the appropriate heating system.
Product Parameters:
|
Filling volume |
5-250ml(tube) |
|
Filling accuracy |
≤±1% |
|
Capacity |
40 tubes/min(normal type); 60-70 tubes/min(high speed type) |
|
Tube diameter |
OD10-50mm |
|
Tube length |
210mm(Max. length) |
|
Hopper volume |
40L |
|
Power |
220V/380V, can be customized |
|
Air pressure |
1.1KW |
|
Equipped motor |
0.5-0.7Mpa |
|
Air feeding |
0.37KW |
|
Convulsions |
0.37KW |
|
Hot air |
3KW |
|
Dimension |
3KW |
|
Weight |
1800kg (approx) |
Product Application:
This model is mainly used to seal the end of the material in which the hose is used as the packaging container. The product adopts closed and semi-enclosed paste, liquid, tail seal without leakage, good consistency in weight and capacity, sealing, printing once, suitable for packaging in pharmaceutical, daily chemical, food, chemical and other fields. Such as: facial Cleanser, Eye Cream, skin Lotion, Dermatine, Ointment, hair, etc.
Product Features:
1. Automatic Tube Loading and Feeding
2. BANNER Automatic Print Registration
3. Tube orientation checking
4. Tube Automatic Filling with Anti-drop
5. LEISTER inner heating and external cooling
6. Tube Sealing & Code embossed
7. Tube Cutting more than million times
8. Automatic discharge to next step
9. MITSUBISHI PLC & HMI CONTROL system
10. Water Coolinig Chiller
11. Automatic Product Feeding System With Level Control.
Product Details:
1. Material hopper can be adopted with automatic material feeding, mixing and heating system for viscous products.
2. LUEZE Orientation sensor from German with high accuracy.
3. The machine heat from inside of the tube and cool from outside for sealing, compare to ultrasonic sealing this way is faster and makes the tube with better looking. The heating system is adopted with Swiss brand air blower Leister, and chiller for cooling system.
4. Clamping system to close and seal the tube with batch code or expiry date information.
Our Servers:
We provide Turn-key project service to customer.
1. Factory Layout design;
2. Factory Decoration based on GMP standard;
3. Formula of products;
4. Raw material etc;
5. Machine design, whole production line from A to Z;
6. Shipping service, FOB, CFR, CIF etc;
7. Installation service. Training service, Mainte
