100L Vacuum High Shear Emulsifier Mixer Hydraulic Lifting Type Rustproof
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | CE, TUV, SGS, GMP |
| Model Number: | LH-VME-C100 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 / Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case / Bubble Film Packaging |
| Delivery Time: | 30 Working Days |
| Payment Terms: | T/T, L/C, D/A |
| Supply Ability: | 20 Sets Per Month |
|
Detail Information |
|||
| Design Capacity: | 125L | Working Capacity: | 100L |
|---|---|---|---|
| Available Capacity: | 5L To 6000L | Mixing Speed: | 0-65RPM |
| Homogenizer: | 0-3600RPM | Heating System: | Electric Or Steam Heating |
| Cooling System: | Water Cooling | Vacuum System: | -0.1MPa |
| High Light: | 100L High Shear Emulsifier Mixer,Hydraulic Lifting High Shear Emulsifier Mixer,Rustproof Vacuum Emulsifying Mixer Machine |
||
Product Description
100L Cosmetic Making Machine Vacuum Emulsifier Mixer Hydraulic Lifting Type
Brief Introduction:
It mainly refers to that, under vacuum condition, the material can be uniformly emulsified with a phrase or multiple phrases
distribution or at least another continuous phrase. The use of machinery to bring strong momentum, making the material in the
stator in narrow gap high sheared, hydraulic shear under hundreds of thousands of times per minute. Instant evenly dispersed
emulsion, after high frequency cycles, will end up with no bubble for exquisite and stable quality products.
Technical Parameter:
| Capacity (L) | Homogenizer | Agitator | Vacuum pump | Heating system | ||||
| power (kw) | speed (rpm) | power (kw) | speed (rpm) | power (kw) | Limit vacuum | Electric heating (kw) | Steam heating (Mpa) | |
| 5 | 0.55 | 0-3600 | 0.4 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 10 | 1.1 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 20 | 1.5 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 9 | 0.2 |
| 50 | 3 | 0-3600 | 0.75 | 0-65 | 0.75 | -0.1 | 12 | 0.2 |
| 100 | 4 | 0-3600 | 1.5 | 0-65 | 1.5 | -0.1 | 24 | 0.2 |
| 200 | 5.5 | 0-3600 | 1.5 | 0-65 | 2.2 | -0.1 | 28 | 0.2 |
| 300 | 7.5 | 0-3600 | 3 | 0-65 | 2.2 | -0.1 | 32 | 0.2 |
| 500 | 11 | 0-3600 | 4 | 0-65 | 4 | -0.1 | 50 | 0.2 |
| 1000 | 15 | 0-3600 | 5.5 | 0-65 | 4 | -0.1 | 54 | 0.2 |
| 2000 | 18.5 | 0-3600 | 7.5 | 0-65 | 5.5 | -0.1 | recommend steam heating | 0.2 |
| 5000 | 22.5 | 0-3600 | 15 | 0-65 | 7.5 | -0.1 | 0.2 | |
| The parameters are for reference only, all the machines can be customized according to your needs. | ||||||||
Application Product:
- Skin & Hair Care: Body lotion, facial cream, sunscree cream, serum, hair dye, hair conditioner, etc.
- Cosmetic: Liquid foundation, BB cream, mascara, lipstick, concealer, lip gloss, etc.
- Pharmaceutical: Ointment, erythromycin eye ointment, Compound Dexamethasone Acetate, etc.
- Food: Mayonnaise, ketchup, cheese, sauce, paste, coconut oil, etc.
Performances And Features:
- The vacuum emulsifying machine can be adopted with bottom homogenizer, top homogenizer, circulation homogenizer, etc. Usually we will select a suitable design according to the product you make and batch capacity.
- The machine can be customized as lifting type or fixed type, lifting type is usually using for capacity below 1000L, above 1000L the size of machine could be over height, therefore we have fixed type machine for your choice, which is shorter and more economic.
- The machine is adopted with two way mixing system to make sure products could be mixed more even, and wall scraper to avoid products stick or remain on the wall.
- The vacuum system has multi-purpose, it can be using to remove bubble from your products, and transfer raw material from other tanks into the main tank by negative pressure, especially for powder transfer, it could avoid powder floating during the process.
- The tank is made with 3 layers and 2 jackets, all connecting parts are well welded from two side, no worry about leaking and distortion.

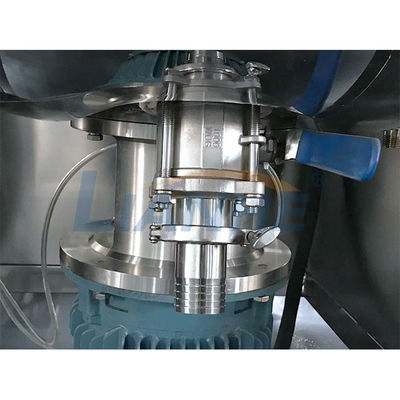

Machine Details:
