0.1MPa Electric Mayonnaise Making Machine , 200L Cream Processing Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | CE , ISO , SGS , TUV |
| Model Number: | LH-B200 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 / Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case / Bubble Film Packaging |
| Delivery Time: | 30 Working Days |
| Payment Terms: | T/T, L/C, D/A |
| Supply Ability: | 20 Sets Per Month |
|
Detail Information |
|||
| Design Capacity: | 250L | Working Capacity: | 200L |
|---|---|---|---|
| Available Capacity: | 5L To 6000L | Mixing Speed: | 0-65RPM |
| Homogenizer: | 0-3600RPM | Heating System: | Electric Heating Or Steam Heating |
| Cooling System: | Available | Vacuum System: | 0.1MPa |
| High Light: | 0.1MPa Mayonnaise Making Machine,Electric Mayonnaise Making Machine,200L Cream Processing Equipment |
||
Product Description

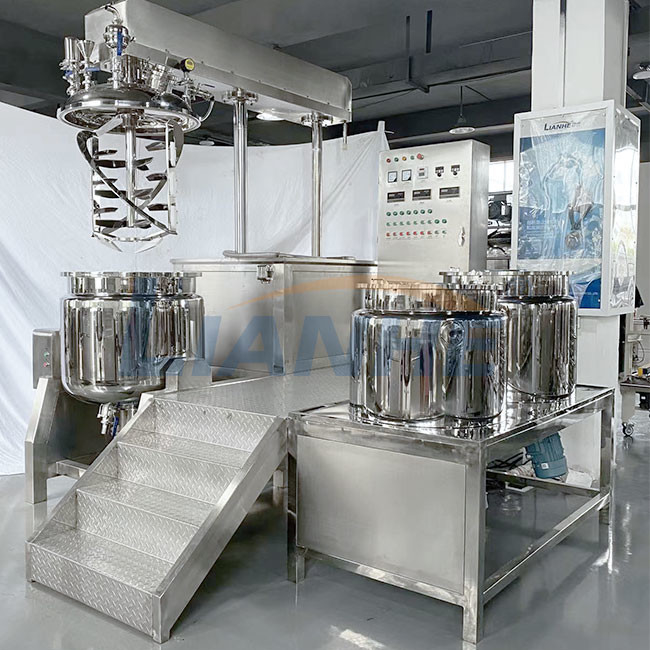

200L Homogenizer Vacuum Emulsifier Mixer For Making Mayonnaise And Cosmetic
Brief Introduction:
The vacuum emulsifying mixer can be customized from 5 litre to 6000 litre, and different designs of tank can be offered according to the required capacity.
The regular machine contains Mixing, Homogenizer, Heating&Cooling and Vacuum System. And we can customize it with hydraulic lifting system, fixed type, tilting system, etc.
Different type of homogenizer is also available, such as high shear bottom homogenizer, top homogenizer, circulation homogenizer, emulsifying pump. We will recommend you a suitable and most efficient type of homogenizer according to he product you want to make.
Heating system could be electric heating or steam heating, generally steam heating is recommended for capacity over 1000L, and if client already have a steam generator in his factory, steam heating is recommended even for 50L.
Technical Parameter:
| Capacity (L) | Homogenizer | Agitator | Vacuum pump | Heating system | ||||
| power (kw) | speed (rpm) | power (kw) | speed (rpm) | power (kw) | Limit vacuum | Electric heating (kw) | Steam heating (Mpa) | |
| 5 | 0.55 | 0-3600 | 0.4 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 10 | 1.1 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 20 | 1.5 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 9 | 0.2 |
| 50 | 3 | 0-3600 | 0.75 | 0-65 | 0.75 | -0.1 | 12 | 0.2 |
| 100 | 4 | 0-3600 | 1.5 | 0-65 | 1.5 | -0.1 | 24 | 0.2 |
| 200 | 5.5 | 0-3600 | 1.5 | 0-65 | 2.2 | -0.1 | 28 | 0.2 |
| 300 | 7.5 | 0-3600 | 3 | 0-65 | 2.2 | -0.1 | 32 | 0.2 |
| 500 | 11 | 0-3600 | 4 | 0-65 | 4 | -0.1 | 50 | 0.2 |
| 1000 | 15 | 0-3600 | 5.5 | 0-65 | 4 | -0.1 | 54 | 0.2 |
| 2000 | 18.5 | 0-3600 | 7.5 | 0-65 | 5.5 | -0.1 | recommend steam heating | 0.2 |
| 5000 | 22.5 | 0-3600 | 15 | 0-65 | 7.5 | -0.1 | 0.2 | |
| The parameters are for reference only, all the machines can be customized according to your needs. | ||||||||
Application Product:
- Skin & Hair Care: Body lotion, facial cream, sunscree cream, serum, hair dye, hair conditioner, etc.
- Cosmetic: Liquid foundation, BB cream, mascara, lipstick, concealer, lip gloss, etc.
- Pharmaceutical: Ointment, erythromycin eye ointment, Compound Dexamethasone Acetate, etc.
- Food: Mayonnaise, ketchup, cheese, sauce, paste, coconut oil, etc.
Performances And Features:
- The vacuum emulsifying machine can be adopted with bottom homogenizer, top homogenizer, circulation homogenizer, etc. Usually we will select a suitable design according to the product you make and batch capacity.
- The machine can be customized as lifting type or fixed type, lifting type is usually using for capacity below 1000L, above 1000L the size of machine could be over height, therefore we have fixed type machine for your choice, which is shorter and more economic.

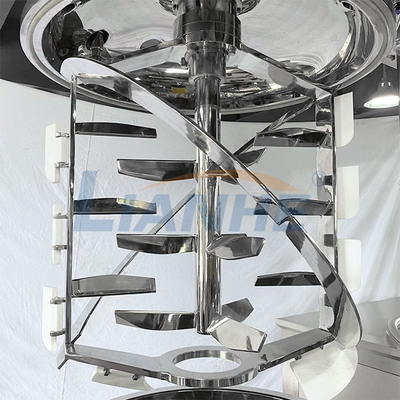

- The machine is adopted with two way mixing system to make sure products could be mixed more even, and wall scraper to avoid products stick or remain on the wall.
- The vacuum system has multi-purpose, it can be using to remove bubble from your products, and transfer raw material from other tanks into the main tank by negative pressure, especially for powder transfer, it could avoid powder floating during the process.
- The tank is made with 3 layers and 2 jackets, all connecting parts are well welded from two side, no worry about leaking and distortion.
Machine Details:
Customer's Reviews:
Exhibition & Project Cases:
