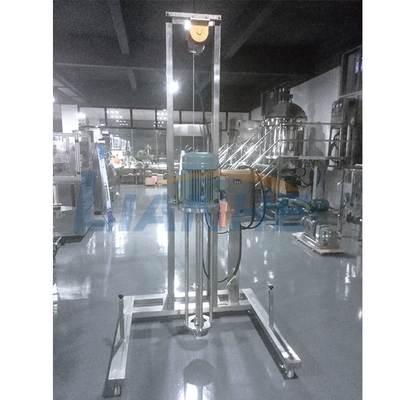

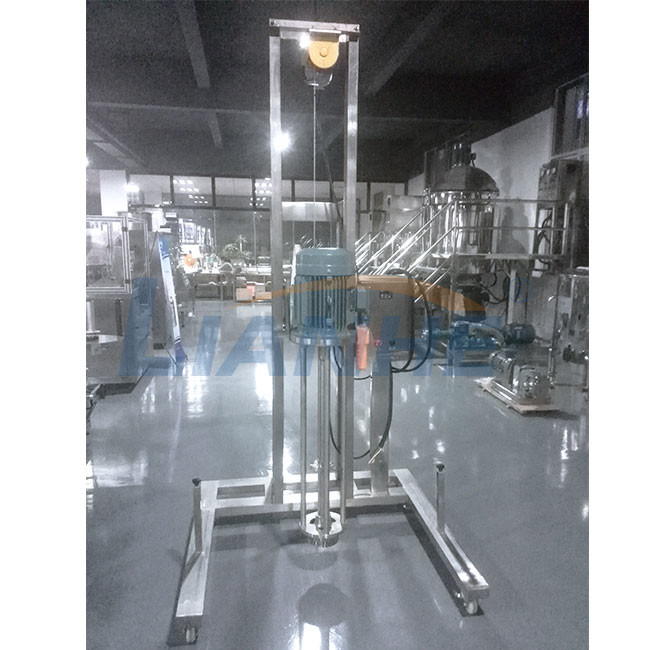

SUS316L Material High Shear Emulsifier Mixer Electric Pneumatic Lift Homogenizer
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | CE , ISO , SGS , TUV |
| Model Number: | LH-PLH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Packaging Details: | Normally packaged in wooden case or wrapping film, also can be customized |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 30 Sets per Month |
|
Detail Information |
|||
| Mixing Drum Shape: | Drum | Homogenization Speed: | 0-3000 Rpm |
|---|---|---|---|
| Material: | SUS304/316L | Power: | 1.5-7.5kw |
| Material Processed: | Chemicals, Food | Function: | Liquid Mixing |
Product Description
7.5KW High Shear Emulsifier Mixer Electric / Pneumatic Lift Homogenizer
Product description:
LH series disperse is designed for low-speed stirring, high –speed disperser, homogenizer, dissolving, mixing of various viscosity liquid product and powder solid product.
1. Power supply: 220V or 380V.
2. Lift up and down can adopt pneumatic or electric.
3. Easy to operate, move flexibly, low noise, smooth operation.
Product Application:
The machine is suitable for the production of various kinds of shampoo, lotion, liquid soap and detergent etc. liquid washing products in cosmetic factory and pharmaceutical factory.
Product Features
This series of machinery mainly consists of six parts: supporting frame, dispersing motor, dispersing head, pneumatic lifting system, electrical control system and speed regulating device. Compact structure, easy installation, neat appearance.
The installation method is flexible, the operation is extremely simple to adapt to various sites, the maintenance is easy, and the fuselage is sturdy and beautiful. Advanced functions, convenient operation, and safe facilities will bring you pleasure at work.
Product Parameters:
| Model |
Power |
Elevator Height |
Speed |
Capacity |
Weight |
| LH-PLH-1.5 | 1.5 kw | 600-800 mm | 0-1500 rpm | 10-50 L | 50 KG |
| LH-PLH-2.2 | 2.2 kw | 20-60 L | 60 KG | ||
| LH-PLH-3.0 | 3.0 kw | 800-1000 mm | 30-100 L | 80 KG | |
| LH-PLH-4.0 | 4.0 kw | 30-150 L | 85 KG | ||
| LH-PLH-5.5 | 5.5 kw | 50-200 L | 120 KG | ||
| LH-PLH-7.5 | 7.5 kw | 50-300 L | 150 KG |
Product Type:
1. High Shear Homogenizer:
Stainless steel 316L homogenizer, electric or pneumatic lifting type. Homogenizing speed 0~3000rpm.
2. High Shear Disperser:
Stainless steel 316L disperser, pneumatic or pneumatic lifting type. Dispersing speed 0~1440rpm.
3. High Speed Stirrer:
Stainless steel 316L Stirrer, pneumatic or pneumatic lifting type. Stirring speed 0~65rpm.
Product Details:
We provide Turn-key project service to customer.
1. Factory Layout design;
2. Factory Decoration based on GMP standard;
3. Formula of products;
4. Raw material etc;
5. Machine design, whole production line from A to Z;
6. Shipping service, FOB, CFR, CIF etc;
7. Installation service. Training service, maintain.
