Emulsifier Gel Vacuum Cream Mixer 100L Lotion Homogenizer Mixing Tank
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | TUV, CE, SGS, GMP |
| Model Number: | VME-A-100L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case / Bubble Film Packaging |
| Delivery Time: | 35 Working Days |
| Payment Terms: | T/T, D/A, L/C |
| Supply Ability: | 20 Sets Per Month |
|
Detail Information |
|||
| Available Capacity: | 5L-6000L | Material: | SUS316L/SUS304/SUS304 |
|---|---|---|---|
| Cooling: | Tap Water / Ice Water Cooling | Mixing Method: | One Way Or Two Way Mixing With Teflon Scraper |
| Homogenizer Speed: | 0-3600 R.p.m | Control: | PLC&Touch Screen / Button |
| High Light: | 100L High Shear Emulsifier,SGS High Shear Emulsifier,100L high shear emulsifier mixer |
||
Product Description
100L Vacuum Cream Mixer Lotion High Shear Emulsifier Gel Homogenizer Mixing Tank
Brief Introduction:
Total volume: 130L, Working volume: 100L
The materials in the water phase tank and oil phase tank are heated and stirred. After full mixing, use a vacuum pump to transport it to the emulsification tank. Under the stirring of the upper part of the central paddle, the material is combined with the polytetrafluoroethylene scraper which sweeps the wall, so that the material is fully stirred and pushed onto the emulsifier at the lower part of the central shaft. Under the very high-speed emulsification, the material will be seriously cut, sheared and cracked into particles of 200 nm - 2 um. In this process, the bubbles will be sucked out in time under the vacuum state in the tank.
Technical Parameter:
| Capacity (L) | Homogenizer | Agitator | Vacuum pump | Heating system | ||||
| power (kw) | speed (rpm) | power (kw) | speed (rpm) | power (kw) | Limit vacuum | Electric heating (kw) | Steam heating (Mpa) | |
| 5 | 0.55 | 0-3600 | 0.4 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 10 | 1.1 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 20 | 1.5 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 9 | 0.2 |
| 50 | 3 | 0-3600 | 0.75 | 0-65 | 0.75 | -0.1 | 12 | 0.2 |
| 100 | 4 | 0-3600 | 1.5 | 0-65 | 1.5 | -0.1 | 24 | 0.2 |
| 200 | 5.5 | 0-3600 | 1.5 | 0-65 | 2.2 | -0.1 | 28 | 0.2 |
| 300 | 7.5 | 0-3600 | 3 | 0-65 | 2.2 | -0.1 | 32 | 0.2 |
| 500 | 11 | 0-3600 | 4 | 0-65 | 4 | -0.1 | 50 | 0.2 |
| 1000 | 15 | 0-3600 | 5.5 | 0-65 | 4 | -0.1 | 54 | 0.2 |
| 2000 | 18.5 | 0-3600 | 7.5 | 0-65 | 5.5 | -0.1 | recommend steam heating | 0.2 |
| 5000 | 22.5 | 0-3600 | 15 | 0-65 | 7.5 | -0.1 | 0.2 | |
| The parameters are for reference only, all the machines can be customized according to your needs. | ||||||||

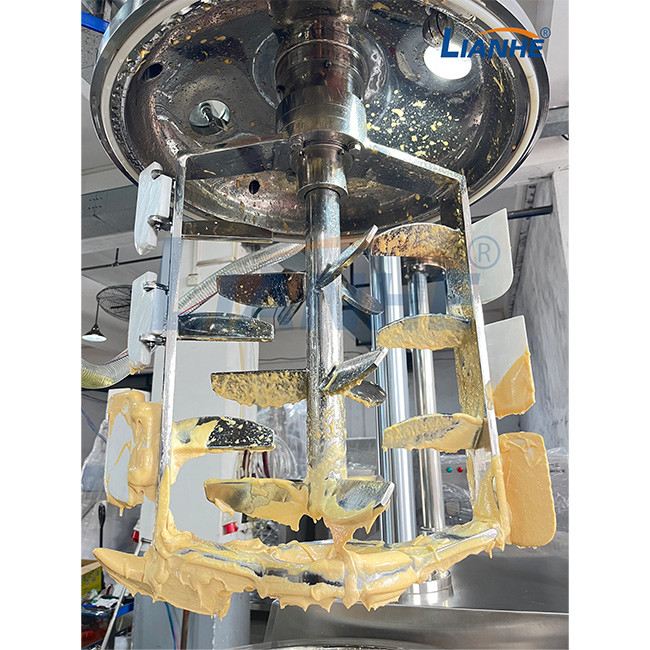

Mixing Design:
The SUS316L paddle mix anticlockwise, Speed: 0-65r/min.
Teflon Scraper, Scraping the wall during mixing to reduce the sticking of materials to the tank.
The stirring paddle of the emulsifying mixer is hygienically polished, with no dead corner welding and no material residue.
Oil Tank and Water Tank:
Both the oil tank and the water tank are made of three-layer stainless steel, and the heating medium circulates in the jacket.
The parts of the two jars that come into contact with the material are made of 316L stainless steel and fully comply with GMP standards.
The motor is installed on the top of the tank, and the high dispersion speed reaches 1440r.p.m.
Homogenizer:
Name: Rotor and stator adopts wire-cutting finish machining high shearing homogenizer
Material: SUS316L
Speed: 0-3600rpm
Burgmann mechanical seal, water circulation cooling, cooling and homogenizer synchronization, NSK bearing, Siemens motor, Panasonic frequency inverter
Application Product:
The product is mainly used in daily health care products, biopharmaceuticals, food industry, coating and ink, nano materials, petrochemicals, printing and dyeing auxiliaries, pulp and paper, pesticides, fertilizers, plastics and rubber, electrical and electronic, fine chemicals and other industries. For materials with high alkali viscosity and high solids content, the emulsification effect is more prominent.
- Skin & Hair Care: Body lotion, Facial cream, Sunscree cream, Serum, Hair dye, Hair conditioner, etc.
- Cosmetic: Liquid foundation, Gel, BB cream, mascara, Lipstick, Concealer, Lip gloss, etc.
- Pharmaceutical: Ointment, Erythromycin eye ointment, Compound Dexamethasone Acetate, Skin repair gels, Scald creams, etc.
- Food: Mayonnaise, ketchup, Cheese, Sauce, Paste, Coconut oil, etc.
