0.2 Mpa Vacuum Lotion Making Machine Mixer SUS316L Material Practical
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | CE , ISO , SGS , TUV |
| Model Number: | LH-VME 50 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Packaging Details: | Normally packaged in wooden case or wrapping film, also can be customized |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T, L/C, D/A, Cash |
| Supply Ability: | 20 Set/Sets per Month |
|
Detail Information |
|||
| Capacity: | 5L-5000L (can Be Customized) | Applicable Industry: | Cosmetic Cream, Lotion, Paste, Hair Dye Etc |
|---|---|---|---|
| Product Contact Material: | SUS316L | Mixing Speed: | 0-65 Rpm |
| Homogenizing Speed: | 0-3600 Rpm | Homogenizing Method: | High Speed Rotor In Stator |
| High Light: | 0.2 Mpa Lotion Making Machine,Vacuum Lotion Making Machine,SUS316L Lotion Mixer Machine |
||
Product Description

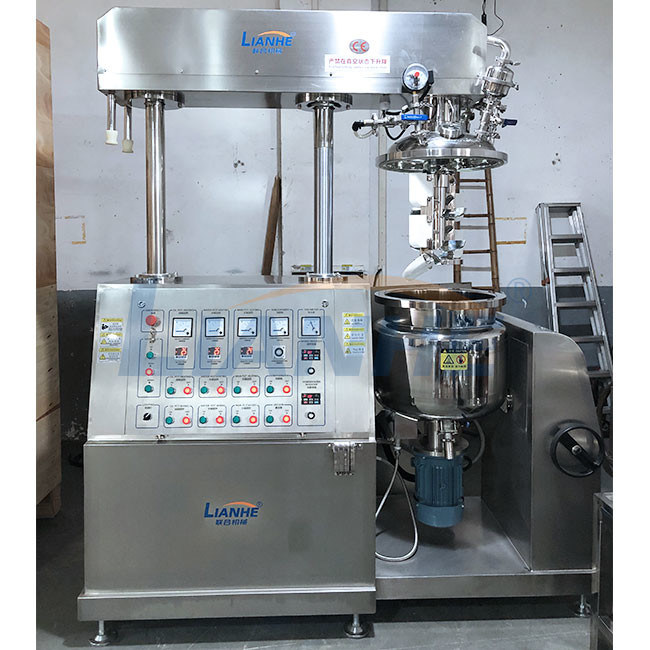

50L Vacuum Emulsifier Mixer Hair Removal Wax Making Machine Body Lotion Mixer
Product Description:
This 50 liters vacuum emulsifier mixer is with hydraulic lifting design, which means its cover can go up and down. This design is more convenient to clean tank inside after production. If the raw material is expensive (such as serum, eye cream), it's convenient to scrape the finished product stuck on wall or mixing paddle to prevent waste.
One set machine combines with mixing, heating/cooling, emulsifying and vacuum function to make perfect final products. There are two control systems for you to choose: SIEMENS PLC touch screen conrol or Button Control.
Product parameters:
| Capacity (L) | Homogenizer | Agitator | Vacuum pump | Heating system | ||||
| power (kw) | speed (rpm) | power (kw) | speed (rpm) | power (kw) | Limit vacuum | Electric heating (kw) | Steam heating (Mpa) | |
| 5 | 0.55 | 0-3600 | 0.4 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 10 | 1.1 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 20 | 1.5 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 9 | 0.2 |
| 50 | 3 | 0-3600 | 0.75 | 0-65 | 0.75 | -0.1 | 12 | 0.2 |
| 100 | 4 | 0-3600 | 1.5 | 0-65 | 1.5 | -0.1 | 24 | 0.2 |
| 200 | 5.5 | 0-3600 | 1.5 | 0-65 | 2.2 | -0.1 | 28 | 0.2 |
| 300 | 7.5 | 0-3600 | 3 | 0-65 | 2.2 | -0.1 | 32 | 0.2 |
| 500 | 11 | 0-3600 | 4 | 0-65 | 4 | -0.1 | 50 | 0.2 |
| 1000 | 15 | 0-3600 | 5.5 | 0-65 | 4 | -0.1 | 54 | 0.2 |
| 2000 | 18.5 | 0-3600 | 7.5 | 0-65 | 5.5 | -0.1 | recommend steam heating | 0.2 |
| 5000 | 22.5 | 0-3600 | 15 | 0-65 | 7.5 | -0.1 | 0.2 | |
| The parameters for reference only, all the machines can be customized accordingly. | ||||||||
Product Structure

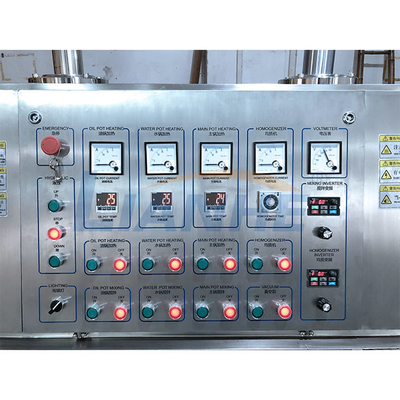

The vacuum emulsifying mixer consists of vacuum-resistant vessel with jacket for heating and cooling. Equipped with high speed homogenizer, scraping agitator, vacuum pump, and hydraulic pump for lifting, heating & cooling system.A vacuum emulsifying mixer comprises many parts, including electrical control system, a vacuum device, a heating, and cooling system, a temperature control system, and pots for oil, emulsifying, and water. The control panel is where all the mixer's operations carry out . The controls include the lighting power system, the main pot's constant functioning, control of the main pot's stirring operation, access to the vacuum system's operation, and the water and oil pot's mixing and heating process.
Product Advantage:
The vacuum emulsifying mixer machine produces cream and lotion with a fine, smooth, glossy form and a highly stable essential material. During the production process, operators must have a wide range of skills and abilities to produce the best cream. The classic way of making cream is to heat the oil and water at a temperature, mixing, packing materials, emulsifying, and cooling. On the other hand, the vacuum emulsifying mixer machine's cream is bubble-free, supple, smooth, and has a long life shelf.
