3600r/Min Vacuum Emulsifying Machine , 45 Degree Cosmetic Cream Mixer Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | CE , ISO , SGS , TUV |
| Model Number: | LH-VME 100 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Packaging Details: | Normally packaged in wooden case or wrapping film, also can be customized |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T, L/C, D/A, Cash |
| Supply Ability: | 20 Set/Sets per Month |
|
Detail Information |
|||
| Capacity: | 5L-5000L (can Be Customized) | Product Type: | Cosmetic Cream, Lotion, Gel, Ointment, Makeup |
|---|---|---|---|
| Motor Brand: | Siemens Or ABB | Mixing Speed: | 0-65 Rpm |
| Homogenizing Speed: | 0-3600 Rpm | Key Selling Points: | Long Service Life, Low Maintenance Cost |
| High Light: | 3600r/Min Vacuum Emulsifying Machine,Cosmetic Vacuum Emulsifying Machine,45 Degree Cosmetic Cream Mixer Machine |
||
Product Description

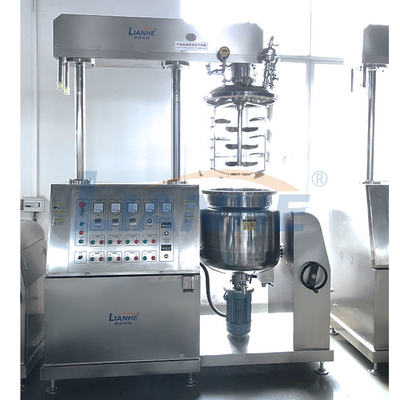

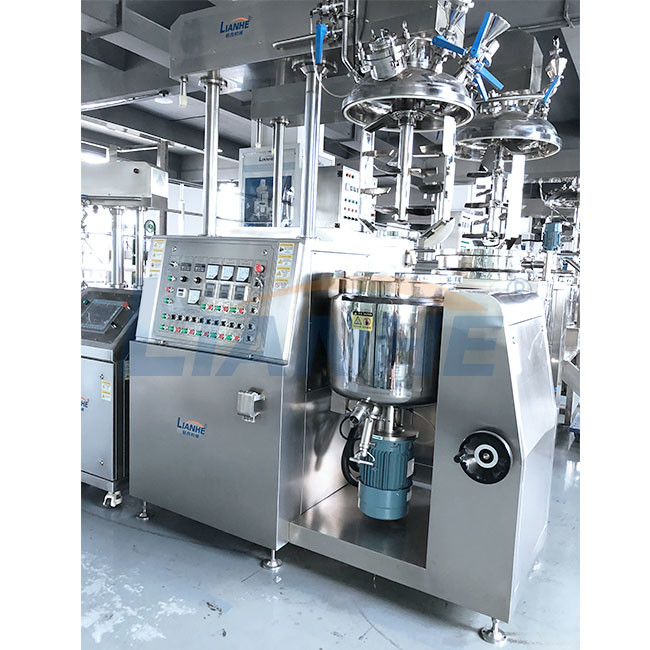

100L Vacuum Emulsifier Mixer Cream Making Machine Cosmetic Cream Mixer Machine
Product Description:
Our vacuum homogeneous emulsification series equipment provides you with all the standard process-solutions, such as mixing, dispersion, agitation, homogenization and so on. Advanced mixing equipment ensures the uniformity of finished product quality. The vacuum emulsifier mixer has been designed to provide you with a variety of peripherals. Vacuum, jacket heating/cooling, hydraulic lifting, and sampling design make it ideal for fluid Integration.
Product Features:
PLC Touch Screen Control: SIEMENS PLC program and touch screen control system, higher class appearance and it can store manufacturing data

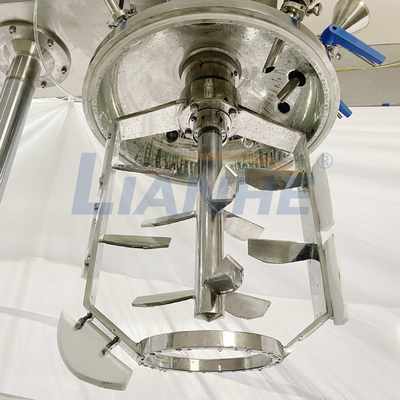

Bidirectional Mixing Paddle: Two-way mixing paddle with teflon scraper, 45 degree inclined blade ensures material rolling and stirring effect
High Shear Homogenizer: Bottom installed homogenizer, speed 0-3600rpm adjustable, make pretty and high-end emulsion product
Vacuum function to eliminate product bubbles, so that final product looks more exquisite and smooth.
Bottom homogenizer: variable frequency speed regulation 0-3600 r/min, only use ABB motor, stable operation and long service life, flat bottom valve discharging, can also manually
Product parameters:
| Capacity (L) | Homogenizer | Agitator | Vacuum pump | Heating system | ||||
| power (kw) | speed (rpm) | power (kw) | speed (rpm) | power (kw) | Limit vacuum | Electric heating (kw) | Steam heating (Mpa) | |
| 5 | 0.55 | 0-3600 | 0.4 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 10 | 1.1 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 20 | 1.5 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 9 | 0.2 |
| 50 | 3 | 0-3600 | 0.75 | 0-65 | 0.75 | -0.1 | 12 | 0.2 |
| 100 | 4 | 0-3600 | 1.5 | 0-65 | 1.5 | -0.1 | 24 | 0.2 |
| 200 | 5.5 | 0-3600 | 1.5 | 0-65 | 2.2 | -0.1 | 28 | 0.2 |
| 300 | 7.5 | 0-3600 | 3 | 0-65 | 2.2 | -0.1 | 32 | 0.2 |
| 500 | 11 | 0-3600 | 4 | 0-65 | 4 | -0.1 | 50 | 0.2 |
| 1000 | 15 | 0-3600 | 5.5 | 0-65 | 4 | -0.1 | 54 | 0.2 |
| 2000 | 18.5 | 0-3600 | 7.5 | 0-65 | 5.5 | -0.1 | recommend steam heating | 0.2 |
| 5000 | 22.5 | 0-3600 | 15 | 0-65 | 7.5 | -0.1 | 0.2 | |
| The parameters for reference only, all the machines can be customized accordingly. | ||||||||

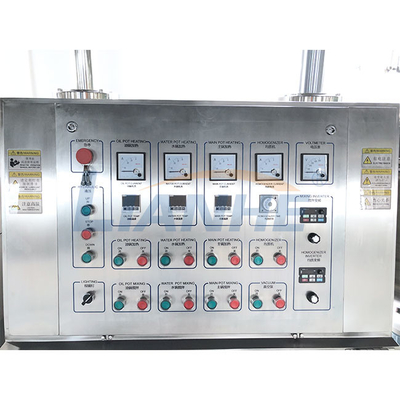

Control System:
Operators can manage the equipment by pressing buttons on the control panel, which include:
• Lighting Control System
• Main pot’s stirring operations
• Main pot’s uniform functioning
• Vacuum system’s operation control
• Water and oil pot’s mixing operations
• Heating process for water and oil pots
Product Advantage:
The vacuum emulsifying mixer machine produces cream and lotion with a fine, smooth, glossy form and a highly stable essential material. During the production process, operators must have a wide range of skills and abilities to produce the best cream. The classic way of making cream is to heat the oil and water at a temperature, mixing, packing materials, emulsifying, and cooling. On the other hand, the vacuum emulsifying mixer machine's cream is bubble-free, supple, smooth, and has a long life shelf.
Stainless Steel Jacket Structure:
Material product contact layer (inside layer): stainless steel 316L, 6mm thickness, 300 mesh polishing
Middle layer: stainless steel 304, 5mm thickness, to input water/steam/conducted oil for heating
Outer layer: stainless steel 304, 3mm thickness, for anti-scald protection.
