Plastic Aluminum Tube Ointment Filling And Sealing Machine High Accuracy
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | CE , ISO , SGS , TUV |
| Model Number: | LH-FS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Packaging Details: | Normally packaged in wooden case or wrapping film, also can be customized |
| Delivery Time: | 20 working days |
| Payment Terms: | T/T, L/C, D/A, D/P, Cash |
| Supply Ability: | 30 Sets per Month |
|
Detail Information |
|||
| Material: | SUS304/316L | Filling Range: | 5-250ml (can Be Customized) |
|---|---|---|---|
| Tube Length: | 50-210 Mm | Key Selling Points: | High-Accuracy |
| Function: | Automatic Positioning, Filling, Heating, Sealing | Filling Speed: | 20-120 Tubes Per Minute Optional |
| High Light: | Ointment Filling And Sealing Machine,Aluminum Tube Filling And Sealing Machine |
||
Product Description

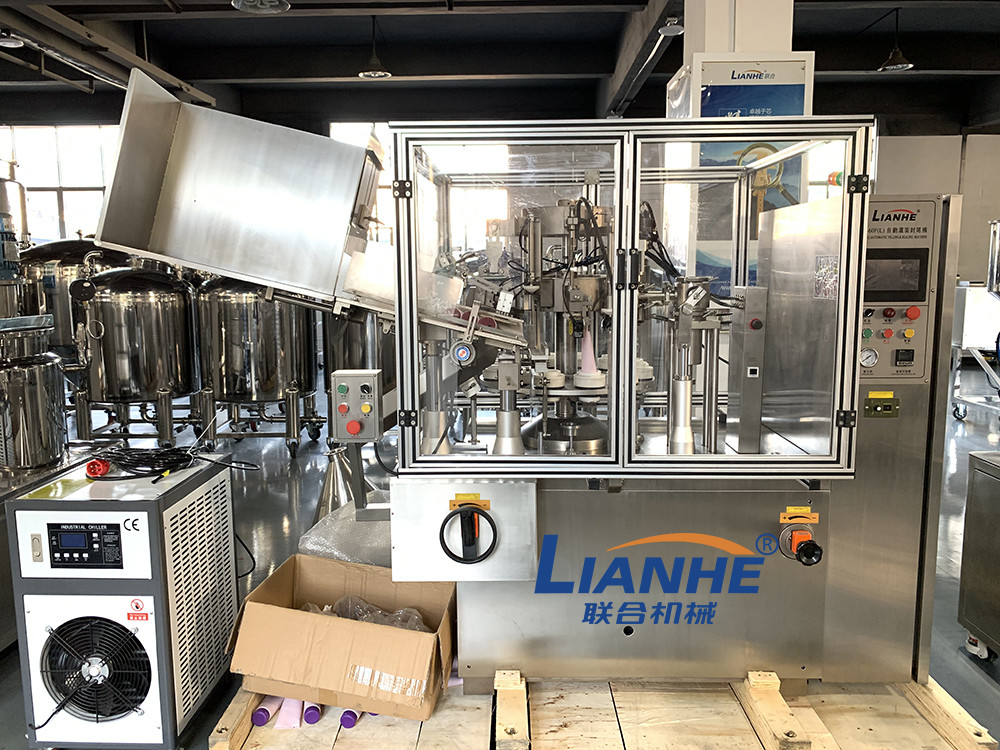

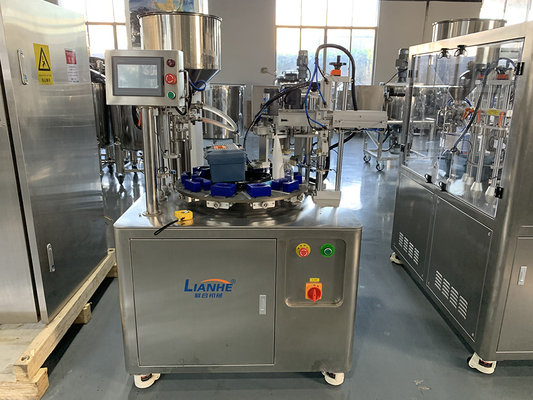

Automatic Plastic / Aluminum Tube Ointment Filling And Sealing Machine
Fully Automatic Cream Plastic Tube Filling And Sealing Machine
Product Description:
Automatic tube filling and sealing machine used for plastic, aluminum, laminate tube. It is one of main latest products of our company. This machine can be used for filling cream and liquid materials. and it is characteristics with firm filling, high precision of dosage. The three functions of filling, sealing and batch numbering can be automatically completed, It is widely used in pharmaceutical, daily chemical, food chemical industries. such as filling pharmacy cream, hair colorante, toothpaste, leather oil, glue, AB glue, Nanp-epoxy adhesive, Neoprene adhesive etc. Convenient and quick dosage adjustment, high efficiency, good-looking, compact structures are the features of the machine. The tube cups can be adjusted according to the tube dimensions. The important parts of the machine which contact directly to the filling material are made of stainless steel (SUS304 is for general use, and SUS316L is for pharmacy use). A special valve makes this machine be suitable for filling cream and liquid material. It is an ideal and economical filling machine in the pharmacy, daily chemical and other fields.
This automatic packaging machine is used for fling facial cleanser, toothpaste,hand cream and sealing containers.It is widely used in food, cosmetics, pharmaceutical industries.The material of the container should be plastic, if you need the machine for aluminum material, please send us message.
Product Parameters:
|
Filling volume |
5-30ml; 6-60ml; 10-120ml; 30-200ml, 50-500ml, etc, customized |
|
Filling accuracy |
≤± 0.5-1% |
|
Capacity |
30-40 tubes per minute / 60-70tubes per minute |
|
Tube diameter |
OD 10-50mm |
|
Tube length |
210mm(Max. length) |
|
Hopper volume |
40L |
|
Power |
220V/380V, can be customized |
|
Air pressure |
1.1KW |
|
Equipped motor |
0.5-0.7Mpa |
|
Convulsions |
0.37KW |
|
Hot air |
3KW |
Product Application:
The tube filling and sealing machine is suitable for automatic color code aligning, filling, sealing, date printing and end cutting of various plastic tubes and aluminum composite tubes. It is widely applied in daily chemical industry, medicine, food, etc.
Product Advantages:
Auto Tube Orientation
Using high sensitivity Japan-Imported Panasonic infrared positioning system, plastic tube will be turning to right side according to the mark on the tube
Auto Ultrasonic Sealing & Coding Function
Using Japan ultrasonic technology, sealing the plastic tube and coding on it.
Auto Cutting Function
It's with the function of automatically cutting after sealing and coding, in which guarantee the tube tail more beauty.
Inported AirTAC Solenoid Valve
Adopting famous brand AirTac air system, greatly make the machine pressure working precisely.
Product Features:
1. Replace the traditional welding or bonding process, low-cost, clean and pollution-free and will not damage the workpiece.
2. The design of the intelligent automatic frequency-following box can protect the mould effectively without adjusting the frequency, and can protect the mould effectively; the output is large, the noise is small, the performance is stable and the service life is long.
3. The welding strength is high, the sealing property is good, its bonding strength is equivalent to the plastic body.
4. The welding process is stable, easy to operate, easy to maintain.
5. IC precision control circuit, automatic overload protection system. 6, using PLC control, simple operation, automatic protection function to avoid damage caused by improper operation.
7. 4-point balance adjustment, simple adjustment of welding head.
8. Aluminum / titanium alloy spoke rod, sound wave strong stable.
9. Automatic filling, marking, sealing, cutting material, filling stable, accurate, no noise.
Product Details:
Our Servers:
We provide Turn-key project service to customer.
1. Factory Layout design;
2. Factory Decoration based on GMP standard;
3. Formula of products;
4. Raw material etc;
5. Machine design, whole production line from A to Z;
6. Shipping service, FOB, CFR, CIF etc;
7. Installation service. Training service, Mainte
