100L Cream Cosmetic Making Vacuum Emulsifier Mixer High Standard
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | CE, SGS, TUV |
| Model Number: | VME-100 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case / Bubble Film Packaging |
| Delivery Time: | 20 working days |
| Payment Terms: | T/T, D/A, L/C |
| Supply Ability: | 30 Sets per Month |
|
Detail Information |
|||
| Main Tank Structure: | 3 Layers, 2 Jackets | Material: | SUS316L/SUS304/SUS304 (in/mid/out) |
|---|---|---|---|
| Working Capacity: | 100L | Mixing Speed: | 0-65RPM |
| Mixing Method: | Two Way Mixing With Wall Scraper | Homogenizer: | 0-3600RPM |
| Tank Structure: | Main Tank + Water Tank + Oil Tank | Vacuum System: | -0.1MPa |
| High Light: | Cosmetic Making Vacuum Emulsifier Mixer,Vacuum Emulsifier Mixer 100L,High Standard Vacuum Emulsifier Mixer |
||
Product Description
100L Cream Cosmetic Lotion Making Vacuum Emulsifier Mixer High Standard

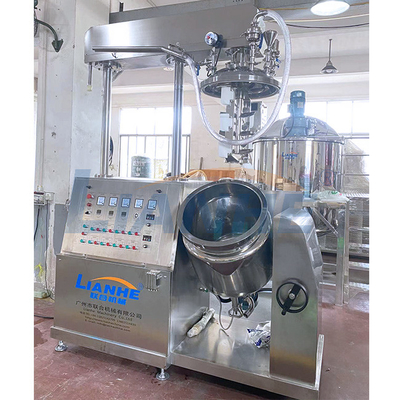

This 100L Cream Cosmetic Lotion Making Vacuum Emulsifier Mixer High Standard professionally designed according to the ointment manufacturing process of cosmetics and ointments etc.The machine is composed of vacuum emulsifying tank and water and oil pre-treatment tank , vacuum pump,hydraulic system, dumping system,electric control system and work platform etc.
The model is controlled PLC touch screen, simple operation, stable performance, good homogenizing performance, high production efficiency, convenient cleaning, reasonable structure, small land area and high automatic degree etc.
Technical Parameter:
| Capacity (L) | Homogenizer | Agitator | Vacuum pump | Heating system | ||||
| power (kw) | speed (rpm) | power (kw) | speed (rpm) | power (kw) | Limit vacuum | Electric heating (kw) | Steam heating (Mpa) | |
| 5 | 0.55 | 0-3600 | 0.4 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 10 | 1.1 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 20 | 1.5 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 9 | 0.2 |
| 50 | 3 | 0-3600 | 0.75 | 0-65 | 0.75 | -0.1 | 12 | 0.2 |
| 100 | 4 | 0-3600 | 1.5 | 0-65 | 1.5 | -0.1 | 24 | 0.2 |
| 200 | 5.5 | 0-3600 | 1.5 | 0-65 | 2.2 | -0.1 | 28 | 0.2 |
| 300 | 7.5 | 0-3600 | 3 | 0-65 | 2.2 | -0.1 | 32 | 0.2 |
| 500 | 11 | 0-3600 | 4 | 0-65 | 4 | -0.1 | 50 | 0.2 |
| 1000 | 15 | 0-3600 | 5.5 | 0-65 | 4 | -0.1 | 54 | 0.2 |
| 2000 | 18.5 | 0-3600 | 7.5 | 0-65 | 5.5 | -0.1 | recommend steam heating | 0.2 |
| 5000 | 22.5 | 0-3600 | 15 | 0-65 | 7.5 | -0.1 | 0.2 | |
| The parameters are for reference only, all the machines can be customized according to your needs. | ||||||||
- SIEMENS frequency converter for speed adjustment, which can meet production of different technology requirement.
- The vacuum defoaming can make the materials meet the requirement of being aseptic.The vacuum material sucking adopted can avoid dust,especially for the powder products.
- Mechanical sealing, good sealing effect and long working life.
- The tank body and the pipes adopt mirror polishing, which fully conforms to GMP standards.
- Material contact parts all use SUS316L stainless steel.
- The heating method mainly include electric or steam heating for customer's choice.
- The emulsifying pot lid can adopt hydraulic lifting system, easy to clean and the cleaning effect is more obvious, the emulsifying pot can adopt tilt discharge.
Application Product:
- Skin & Hair Care: Body lotion, facial cream, sunscree cream, serum, hair dye, hair conditioner, etc.
- Cosmetic: Liquid foundation, BB cream, mascara, lipstick, concealer, lip gloss, etc.
- Pharmaceutical: Ointment, erythromycin eye ointment, Compound Dexamethasone Acetate, etc.
- Food: Mayonnaise, ketchup, cheese, sauce, paste, coconut oil, etc.
This machine is suitable for cosmetic cream, paste, mayonnaise, shampoo, syrup, etc products in cosmetic, food, beverage, chemical, daily chemical, beverage, pharmaceutical, medical, etc industries. If customers have any doubt on the machine, or if you are not sure whether this machine is suitable for your products or not, please send us inquiry and we will get back to you very soon.
Machine Details:
1. 100L Cream Cosmetic Lotion Making Vacuum Emulsifier Mixer High Standardwhich can meet different technological demands.
2, The homogenizing structure is made through German techology. The machine adopts the improted double-end mechanical seal effect.The maximum emulsifying rotation speed can reach 3500rpm and the high shearing fineness can reach 0.2-5um.
3, The vacuum defoaming can make the materials meet the requirement of being aseptic . The vacuum materials vacuum sucking can avoid dust.
4, The main boiler lid can adopt lifting system, it is easy to clean and the cleaning effect is more obvious, the main boiler can adopt tilting discharge.
5, The boiler body is welded with 3 layer imported SS plate, tank body and pipes adopts mirror polish whcih meet the GMP standard.
6, According to process requirement, the tank body can heating and cooling the electric heating.
7, To ensure the stability of whole machine, the machine adopt the imported electric appliances which can meet the international standards.
