SUS316L Vacuum Emulsifier Mixer Pharmaceutical Making With Scraper
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | CE, SGS, TUV |
| Model Number: | VME-100 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case / Bubble Film Packaging |
| Delivery Time: | 20 working days |
| Payment Terms: | T/T, D/A, L/C |
| Supply Ability: | 30 Sets per Month |
|
Detail Information |
|||
| Main Tank Structure: | 3 Layers, 2 Jackets | Material: | SUS316L/SUS304/SUS304 (in/mid/out) |
|---|---|---|---|
| Working Capacity: | 5L-6000L | Mixing Speed: | 0-65RPM |
| Homogenizer: | 0-3600RPM | Vacuum System: | -0.1MPa |
| High Light: | SUS316L Vacuum Emulsifier Mixer,Pharmaceutical Making Vacuum Emulsifier Mixer,3 Layers Vacuum Emulsifier Mixer |
||
Product Description
Factory Price Vacuum Emulsifier Mixer Cosmetic Pharmaceutical Making with Scraper
Application Product:
- Skin & Hair Care: Body lotion, facial cream, sunscree cream, serum, hair dye, hair conditioner, etc.
- Cosmetic: Liquid foundation, BB cream, mascara, lipstick, concealer, lip gloss, etc.
- Pharmaceutical: Ointment, erythromycin eye ointment, Compound Dexamethasone Acetate, etc.
- Food: Mayonnaise, ketchup, cheese, sauce, paste, coconut oil, etc.
Brief Introduction:

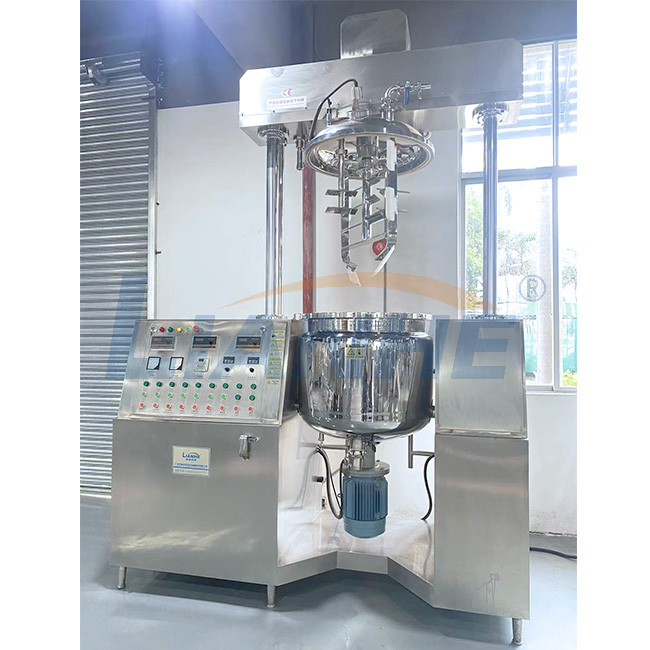

Vacuum emulsifying mixer machine consist of Water and Oil pot, Main emulsifying tank, Vacuum system, Tilting discharge system, Hydraulic lifting system, Mixing system, Homogenizer system and Heating/Cooling system. All those functions work together to produce batches of good cosmetics products.
Standard Configuration:
-
Machine equipped A set of water and oil pot
Siemens motor, 1440RPMElectric heating by Water or Conduction OilMixing: High shearing Disperser plates with baffle on the wallHalf open hinged lid for easy operation - Seal Head:SUS316L; Material filter; vacuum pressure meter; vacuum discharge valve; vacuum inlet; CIP system (Spray ball); sight glass light; sight window; man-hole; perfume hopper
-

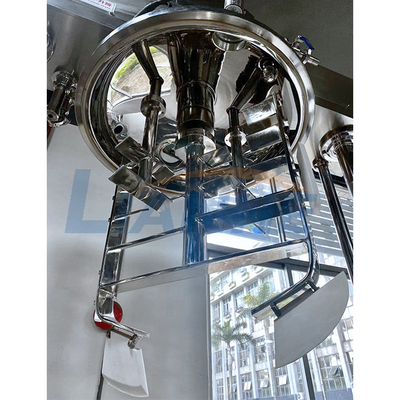

SUS316L Wall scrapper mixer
PTFE scraper; Fixed propeller; 45degree blades on opposite angles to make sure mixture complete0-65rpm with variable speed control
Technical Parameter:
| Capacity (L) | Homogenizer | Agitator | Vacuum pump | Heating system | ||||
| power (kw) | speed (rpm) | power (kw) | speed (rpm) | power (kw) | Limit vacuum | Electric heating (kw) | Steam heating (Mpa) | |
| 5 | 0.55 | 0-3600 | 0.4 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 10 | 1.1 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 20 | 1.5 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 9 | 0.2 |
| 50 | 3 | 0-3600 | 0.75 | 0-65 | 0.75 | -0.1 | 12 | 0.2 |
| 100 | 4 | 0-3600 | 1.5 | 0-65 | 1.5 | -0.1 | 24 | 0.2 |
| 200 | 5.5 | 0-3600 | 1.5 | 0-65 | 2.2 | -0.1 | 28 | 0.2 |
| 300 | 7.5 | 0-3600 | 3 | 0-65 | 2.2 | -0.1 | 32 | 0.2 |
| 500 | 11 | 0-3600 | 4 | 0-65 | 4 | -0.1 | 50 | 0.2 |
| 1000 | 15 | 0-3600 | 5.5 | 0-65 | 4 | -0.1 | 54 | 0.2 |
| 2000 | 18.5 | 0-3600 | 7.5 | 0-65 | 5.5 | -0.1 | recommend steam heating | 0.2 |
| 5000 | 22.5 | 0-3600 | 15 | 0-65 | 7.5 | -0.1 | 0.2 | |
| The parameters are for reference only, all the machines can be customized according to your needs. | ||||||||
Working Method:
1. Stirring scrap and middle stirring rotating the opposite direction make the mixing more equally.
2. Advanced homogenizer with unique structure and reliable sealing (the mechanical seal adopt Germany Bergman product), and the emulsifying rotation speed can reach 0-3500 rpm (Taiwan’s teco frequency debugger), and the highest shearing fineness can reach 0.2-5μm .
3. The vacuum defoaming can make the materials meet the requirement of being sanitary and aseptic. The vacuum material sucking can avoid dust, especially for powder products.
4. The homogenizing structure made through German technology adopts the imported double-end mechanical seal effect.The maximum emulsifying rotation speed can reach 4200rpm and the highest shearing fineness can reach 0.2-5 μm.
5. The emulsifying pot lid can adopt hydraulic lifting system, easy to clean and the cleaning effect is more obvious, the emulsifying pot can adopt tilt discharge.
