Electric Heating Vacuum Emulsifier Mixer Homogenizer Hair Dye Lotion Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | CE, SGS, TUV |
| Model Number: | VME-500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case / Bubble Film Packaging |
| Delivery Time: | 20 working days |
| Payment Terms: | T/T, D/A, L/C |
| Supply Ability: | 30 Sets per Month |
|
Detail Information |
|||
| Material: | SUS316L/SUS304/SUS304 (in/mid/out) | Heating Way: | Steam/Electric Heating |
|---|---|---|---|
| Tank Structure: | Main Tank + Water Tank + Oil Tank | Mixing Speed: | 0-65RPM |
| Mixing Method: | Two Way Mixing With Wall Scraper | Homogenizer: | 0-3600RPM |
| Vacuum System: | -0.1MPa | Motor Brand: | ABB Or SIEMENS |
| High Light: | Electric Heating Vacuum Emulsifier Mixer,Hair Dye Lotion Vacuum Emulsifier Mixer |
||
Product Description
New Design Vacuum Emulsifier Mixer Homogenizer Hair Dye Lotion Equipment
Brief Introduction:

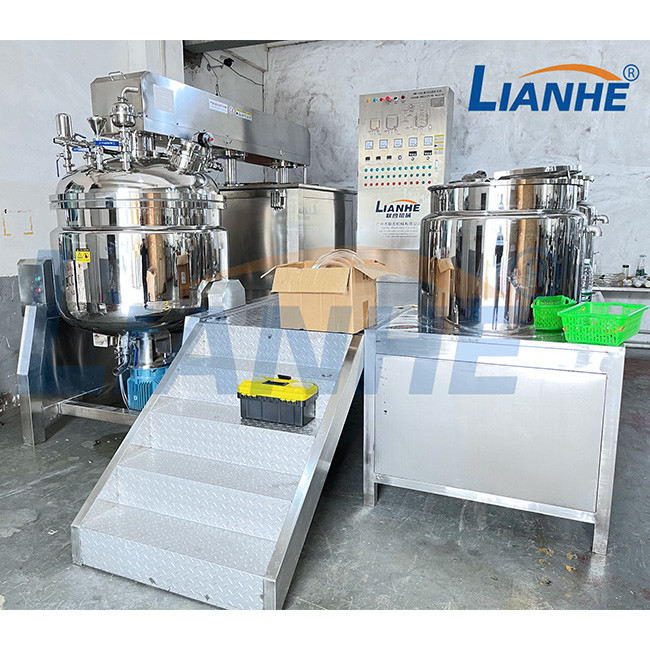

New Design Vacuum Emulsifier Mixer Homogenizer Hair Dye Lotion Equipmentmainly consists of water pot, oil pot, emulsifying pot (main tank), vacuum system, hydraulic lifting system (optional), button or PLC control system, operation platform, etc.
For different capacity requirements, we can customize the capacity from 5 litre to 6000 litre, and different homogenizer options for your choice.
The machine is widely used in Cosmetic, Daily Chemical, Food and Pharmaceutical area for manufacturing viscous and none-viscous liquid products, such as cream, paste, sanitizer gel, body lotion, hair dye, ointment, sauce, mayonnaise, etc.
Featured by easy operation, stable performance, good homogenizing performance, high productivity, easy cleaning, reasonable structure, space saving, etc.
This machine is used for cosmetic cream and lotions,The vacuum emulsifier is professionally designed according to the ointment manufacturing process of cosmetics and ointments etc. products through introducing advanced technology from abroad. The machine unit is composed of pre-treating boiler, vacuum emulsifying and blending boiler, vacuum pump,hydraulic system, dumping system, electric control system and work platform etc. The machine unit is featured by simple operation, stable performance, good homogenizing performance, high production efficiency, convenient cleaning, reasonable structure, small land area and high automatic degree etc.
Technical Parameter:
| Capacity (L) | Homogenizer | Agitator | Vacuum pump | Heating system | ||||
| power (kw) | speed (rpm) | power (kw) | speed (rpm) | power (kw) | Limit vacuum | Electric heating (kw) | Steam heating (Mpa) | |
| 5 | 0.55 | 0-3600 | 0.4 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 10 | 1.1 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 20 | 1.5 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 9 | 0.2 |
| 50 | 3 | 0-3600 | 0.75 | 0-65 | 0.75 | -0.1 | 12 | 0.2 |
| 100 | 4 | 0-3600 | 1.5 | 0-65 | 1.5 | -0.1 | 24 | 0.2 |
| 200 | 5.5 | 0-3600 | 1.5 | 0-65 | 2.2 | -0.1 | 28 | 0.2 |
| 300 | 7.5 | 0-3600 | 3 | 0-65 | 2.2 | -0.1 | 32 | 0.2 |
| 500 | 11 | 0-3600 | 4 | 0-65 | 4 | -0.1 | 50 | 0.2 |
| 1000 | 15 | 0-3600 | 5.5 | 0-65 | 4 | -0.1 | 54 | 0.2 |
| 2000 | 18.5 | 0-3600 | 7.5 | 0-65 | 5.5 | -0.1 | recommend steam heating | 0.2 |
| 5000 | 22.5 | 0-3600 | 15 | 0-65 | 7.5 | -0.1 | 0.2 | |
| The parameters are for reference only, all the machines can be customized according to your needs. | ||||||||
Application Product:
- Skin & Hair Care: Body lotion, facial cream, sunscree cream, serum, hair dye, hair conditioner, etc.
- Cosmetic: Liquid foundation, BB cream, mascara, lipstick, concealer, lip gloss, etc.
- Pharmaceutical: Ointment, erythromycin eye ointment, Compound Dexamethasone Acetate, etc.
- Food: Mayonnaise, ketchup, cheese, sauce, paste, coconut oil, etc.
Performances And Features:
1.high sanitary standard manufacturing
2.internal surface mirror polished
3.agitation group consisting of two slow agitators and one fast agitator
4.double speed slow agitators(stepless speed variation as optional)
5.double speed fast agitators(stepless speed variation as optional)
6.mechanical seal of agitation groups
7.lifting cover system
8.tilting vessel
9.body and agitators made of SS AISI 316L
10.internal pressurization for discharge and inertization
11.SS AISI 304jacket
12.cover for thermal insulation made of SS tank in tank13.vacuum group
14.heating station
15.sterilizing filter installed on the vacuum-breaking device
16.cleaning balls
17.embedded CIP group
18.product temperature check by means of Pt 100 probe,special sheath ,close to the side
19.buttons or PLC controlled process functions
20.electronic weighing system.
Standard Configuration:
- Emulsifier, water phase tanks, oil phase tank
- Vacuum pumps and sync solenoid valves
- Emulsifier and material filter
- Hydraulic lifting system and mixing system
- Stainless steel platform

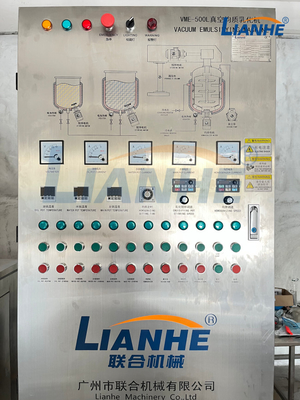

- Inverter and electrical control box
