Touch Screen Emulsifier Mixer Machine 200L Vacuum Circulation Homogenizer Cosmetic Making Mixer
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | TUV, CE, SGS, GMP |
| Model Number: | VME-C-200L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case / Bubble Film Packaging |
| Delivery Time: | 35 Working Days |
| Payment Terms: | T/T, D/A, L/C |
| Supply Ability: | 20 Sets Per Month |
|
Detail Information |
|||
| Available Capacity: | 5L-6000L | Tank Structure: | 3 Layers Of Steel, 2 Jackets |
|---|---|---|---|
| Material: | SUS316L/SUS304/SUS304 | Heating Method: | Electric Heating / Steam Heating |
| Cooling: | Tap Water / Ice Water Cooling | Mixing Method: | One Way Or Two Way Mixing With Teflon Scraper |
| Mixing Speed: | 0-65 R.p.m | Homogenizer Speed: | 0-3600 R.p.m |
| Control: | PLC&Touch Screen / Button | ||
| High Light: | Touch Screen Emulsifier Mixer Machine,200L Emulsifier Mixer Machine,Cosmetic Cream Vacuum Emulsifier Mixer |
||
Product Description
200L Vacuum Circulation Homogenizer Cosmetic Mixing Emulsifier Cream Making Mixer
Brief Introduction:
Total volume: 250L, Working volume: 200L
Vacuum emulsifying machine is an ideal option to produce high-grade skin care products, pharmacy ointment, and many other kinds of creams which need to be very soft and smooth. It has the functions of heating, mixing, scraping, rotating at different speeds and vacuum supply. It has a very wide application from cosmetics (skin cream, hair gel, lotion etc) and food (jam, chocolate, sauces etc.) to pharmacy (ointment, syrup, paste) and chemicals(painting, adhesives, detergents)

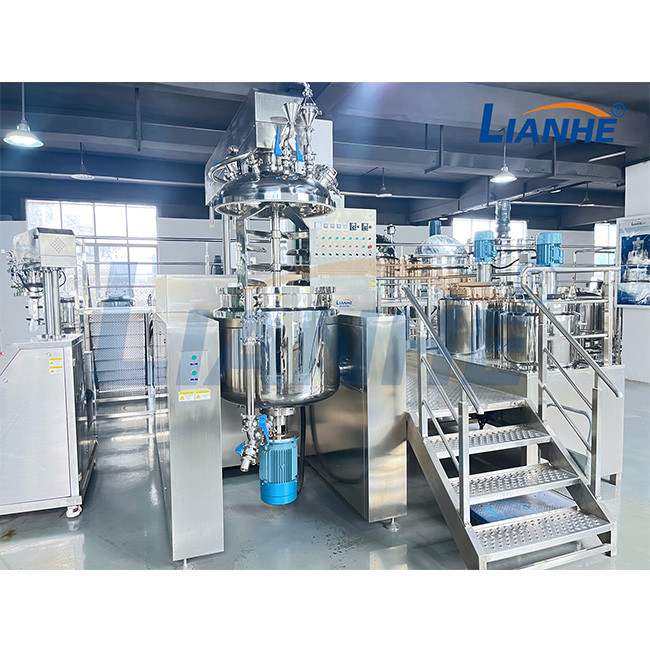

The machine is mainly made up of oil tank, water tank, vacuum homogeneous tank (main tank), heating system, mixing system, vacuum system, electric lifting system, operation control cabinet and piping system.
Technical Parameter:
| Capacity (L) | Homogenizer | Agitator | Vacuum pump | Heating system | ||||
| power (kw) | speed (rpm) | power (kw) | speed (rpm) | power (kw) | Limit vacuum | Electric heating (kw) | Steam heating (Mpa) | |
| 5 | 0.55 | 0-3600 | 0.4 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 10 | 1.1 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 20 | 1.5 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 9 | 0.2 |
| 50 | 3 | 0-3600 | 0.75 | 0-65 | 0.75 | -0.1 | 12 | 0.2 |
| 100 | 4 | 0-3600 | 1.5 | 0-65 | 1.5 | -0.1 | 24 | 0.2 |
| 200 | 5.5 | 0-3600 | 1.5 | 0-65 | 2.2 | -0.1 | 28 | 0.2 |
| 300 | 7.5 | 0-3600 | 3 | 0-65 | 2.2 | -0.1 | 32 | 0.2 |
| 500 | 11 | 0-3600 | 4 | 0-65 | 4 | -0.1 | 50 | 0.2 |
| 1000 | 15 | 0-3600 | 5.5 | 0-65 | 4 | -0.1 | 54 | 0.2 |
| 2000 | 18.5 | 0-3600 | 7.5 | 0-65 | 5.5 | -0.1 | recommend steam heating | 0.2 |
| 5000 | 22.5 | 0-3600 | 15 | 0-65 | 7.5 | -0.1 | 0.2 | |
| The parameters are for reference only, all the machines can be customized according to your needs. | ||||||||

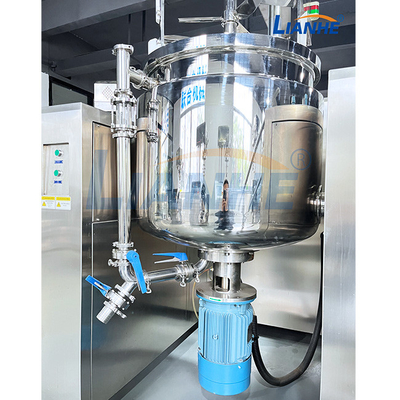

1. Homogenizer is installed on boiler bottom to increase motor power more thoroughly and strongly. It uses advanced German technology, with unique structure. The material moves of high-speed in the multi-gap between the rotor and the stator, which forms a strong hydraulic shearing. During few production, it can exert homogenizing effect fully.
2. Mightiness balance isotactic curve rotor is matched with stator with corresponding structure to realize liquid high-capability cut,rubbing,centrifugal to make sure exquisite and slick cream; boiler body and pipe surface mirror polishing.
3. Customer can choose frequency conversion timing homogenizer and highest rotate speed is 3600 r/min.
4. The oil tank and water tanks are equipped with rating stirring dispersion device 0.75KW, so that oil and water could be heated more quickly and evenly.
5. The lid is with a light observation hole, which can keep control of the material emulsification situation in the kettle. There is a small material entrance, which is convenient to add special essence into the kettle.
6. Bottom material discharging is easy to operate. The finished materials can be directly moved into the filling and packing
system. The materials can also be dumped out, which is easy to clean.
Oil Tank and Water Tank:
Both the oil tank and the water tank are made of three-layer stainless steel, and the heating medium circulates in the jacket.
The parts of the two jars that come into contact with the material are made of 316L stainless steel and fully comply with GMP standards.
The motor is installed on the top of the tank, and the high dispersion speed reaches 1440r.p.m.
Homogenizer:
Name: Rotor and stator adopts wire-cutting finish machining high shearing homogenizer
Material: SUS316L
Speed: 0-3600rpm
Burgmann mechanical seal, water circulation cooling, cooling and homogenizer synchronization, NSK bearing, Siemens motor, Panasonic frequency inverter
Application Product:
Various kinds of operation modes are optional.
Easy to clean & maintain for the internal structure.
Available to choose to mount CIP cleaning system.
It is simple, reliable and cost-effective in equipment structure.
Other functions can be customized as well.
Skin & Hair Care: Body lotion, Facial cream, Sunscree cream, Serum, Hair dye, Hair conditioner, etc.
Cosmetic: Liquid foundation, Gel, BB cream, mascara, Lipstick, Concealer, Lip gloss, etc.
Pharmaceutical: Ointment, Erythromycin eye ointment, Compound Dexamethasone Acetate, Skin repair gels, Scald creams, etc.
Food: Mayonnaise, ketchup, Cheese, Sauce, Paste, Coconut oil, etc.
