65rpm Vacuum Homogenizer Machine One Way Cream Mixing Emulsifier
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | TUV, CE, SGS, GMP |
| Model Number: | VME-A-100L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case / Bubble Film Packaging |
| Delivery Time: | 35 Working Days |
| Payment Terms: | T/T, D/A, L/C |
| Supply Ability: | 20 Sets Per Month |
|
Detail Information |
|||
| Available Capacity: | 5L-6000L | Tank Structure: | 3 Layers Of Steel, 2 Jackets |
|---|---|---|---|
| Material: | SUS316L/SUS304/SUS304 | Heating Method: | Electric Heating / Steam Heating |
| Cooling: | Tap Water / Ice Water Cooling | Mixing Method: | One Way Or Two Way Mixing With Teflon Scraper |
| Mixing Speed: | 0-65 R.p.m | Homogenizer Speed: | 0-3600 R.p.m |
| Control: | PLC&Touch Screen / Button | ||
| High Light: | 65rpm Vacuum Homogenizer Machine,Cream Mixing Vacuum Homogenizer Machine |
||
Product Description
100L Vacuum Homogenizer Machine Cosmetic Mixing Emulsifier Cream Making Mixer
Brief Introduction:
Total volume: 130L, Working volume: 100L
It means that when the materials are under the vacuum condition,it makes use of the high shear emulsifier to distribute one or several phases to another continuous phase rapidly and evenly.The materials will be processed in the narrow space between stator and rotor by strong energy of motion produced by the mechanical effect.By the operation of hydraulic shearing,centrifugal extruding,impacting,breaking and turbulence for over 100 thousand times per minute,the materials will be dispersed and emulsified instantly and evenly.After reciprocating circulation at high frequency,the fine finished products of stable and high quality without bubbles with be achieved.
Technical Parameter:
| Capacity (L) | Homogenizer | Agitator | Vacuum pump | Heating system | ||||
| power (kw) | speed (rpm) | power (kw) | speed (rpm) | power (kw) | Limit vacuum | Electric heating (kw) | Steam heating (Mpa) | |
| 5 | 0.55 | 0-3600 | 0.4 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 10 | 1.1 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 20 | 1.5 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 9 | 0.2 |
| 50 | 3 | 0-3600 | 0.75 | 0-65 | 0.75 | -0.1 | 12 | 0.2 |
| 100 | 4 | 0-3600 | 1.5 | 0-65 | 1.5 | -0.1 | 24 | 0.2 |
| 200 | 5.5 | 0-3600 | 1.5 | 0-65 | 2.2 | -0.1 | 28 | 0.2 |
| 300 | 7.5 | 0-3600 | 3 | 0-65 | 2.2 | -0.1 | 32 | 0.2 |
| 500 | 11 | 0-3600 | 4 | 0-65 | 4 | -0.1 | 50 | 0.2 |
| 1000 | 15 | 0-3600 | 5.5 | 0-65 | 4 | -0.1 | 54 | 0.2 |
| 2000 | 18.5 | 0-3600 | 7.5 | 0-65 | 5.5 | -0.1 | recommend steam heating | 0.2 |
| 5000 | 22.5 | 0-3600 | 15 | 0-65 | 7.5 | -0.1 | 0.2 | |
| The parameters are for reference only, all the machines can be customized according to your needs. | ||||||||

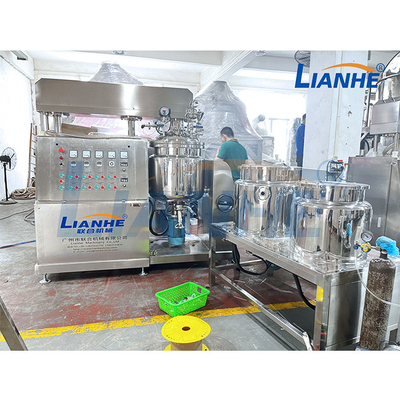

Vacuum emulsifying machine is an ideal option to produce high-grade skin care products, pharmacy ointment, and many other kinds of creams which need to be very soft and smooth. It has the functions of heating, mixing, scraping, rotating at different speeds and vacuum supply. It has a very wide application from cosmetics (skin cream, hair gel, lotion etc) and food (jam, chocolate, sauces etc.) to pharmacy (ointment, syrup, paste) and chemicals(painting, adhesives, detergents)
Oil Tank and Water Tank:
Both the oil tank and the water tank are made of three-layer stainless steel, and the heating medium circulates in the jacket.
The parts of the two jars that come into contact with the material are made of 316L stainless steel and fully comply with GMP standards.
The motor is installed on the top of the tank, and the high dispersion speed reaches 1440r.p.m.

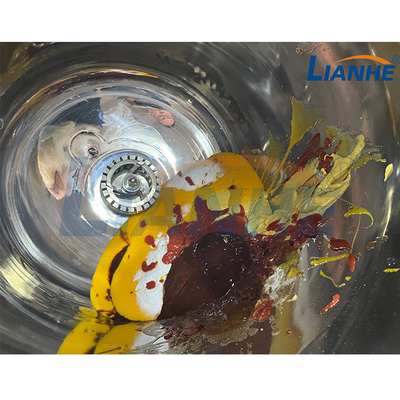

Homogenizer:
Name: Rotor and stator adopts wire-cutting finish machining high shearing homogenizer
Material: SUS316L
Speed: 0-3600rpm
Burgmann mechanical seal, water circulation cooling, cooling and homogenizer synchronization, NSK bearing, Siemens motor, Panasonic frequency inverter
Application Product:
Various kinds of operation modes are optional.
Easy to clean & maintain for the internal structure.
Available to choose to mount CIP cleaning system.
It is simple, reliable and cost-effective in equipment structure.
Other functions can be customized as well.
Skin & Hair Care: Body lotion, Facial cream, Sunscree cream, Serum, Hair dye, Hair conditioner, etc.
Cosmetic: Liquid foundation, Gel, BB cream, mascara, Lipstick, Concealer, Lip gloss, etc.
Pharmaceutical: Ointment, Erythromycin eye ointment, Compound Dexamethasone Acetate, Skin repair gels, Scald creams, etc.
Food: Mayonnaise, ketchup, Cheese, Sauce, Paste, Coconut oil, etc.
