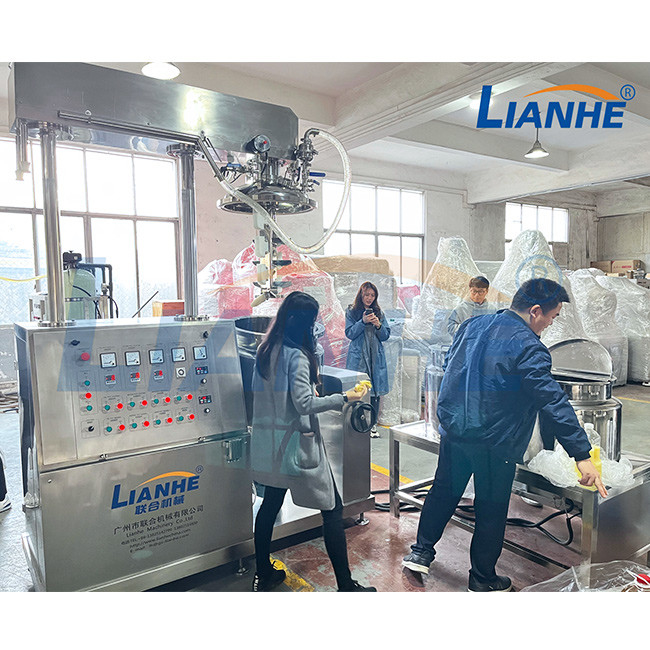

100L Vacuum Cream Mixer Lotion High Shear Emulsifier Gel Homogenizer Mixing Tank
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | TUV, CE, SGS, GMP |
| Model Number: | VME-A-100L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case / Bubble Film Packaging |
| Delivery Time: | 35 Working Days |
| Payment Terms: | T/T, D/A, L/C |
| Supply Ability: | 20 Sets Per Month |
|
Detail Information |
|||
| Available Capacity: | 5L-6000L | Tank Structure: | 3 Layers Of Steel, 2 Jackets |
|---|---|---|---|
| Cooling: | Tap Water / Ice Water Cooling | Mixing Method: | One Way Or Two Way Mixing With Teflon Scraper |
| Mixing Speed: | 0-65 R.p.m | Homogenizer Speed: | 0-3600 R.p.m |
| High Light: | Lotion High Shear Emulsifier,100L Vacuum High Shear Emulsifier |
||
Product Description
100L Vacuum Cream Mixer Lotion High Shear Emulsifier Gel Homogenizer Mixing Tank
Brief Introduction:
Total volume: 130L, Working volume: 100L
The materials in the water-phase tank and oil-phase tank are heated up and stirred. After they are thoroughly mixed, they will be transferred to the emulsifying tank by vacuum pump. The material will be stirred by the upper part of the central paddle, combined with the PTFE scraper sweeping the wall, the material will be stirred thoroughly and meanwhile be pushed down to the emulsifier at the low part of the central axle. With very high speed emulsifying effect, the material will be seriously cut, sheared, and cracked into 200nm – 2um particles. The bubbles appear during the process will be sucked out promptly in the vacuum status in the tank
Technical Parameter:
| Capacity (L) | Homogenizer | Agitator | Vacuum pump | Heating system | ||||
| power (kw) | speed (rpm) | power (kw) | speed (rpm) | power (kw) | Limit vacuum | Electric heating (kw) | Steam heating (Mpa) | |
| 5 | 0.55 | 0-3600 | 0.4 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 10 | 1.1 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 20 | 1.5 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 9 | 0.2 |
| 50 | 3 | 0-3600 | 0.75 | 0-65 | 0.75 | -0.1 | 12 | 0.2 |
| 100 | 4 | 0-3600 | 1.5 | 0-65 | 1.5 | -0.1 | 24 | 0.2 |
| 200 | 5.5 | 0-3600 | 1.5 | 0-65 | 2.2 | -0.1 | 28 | 0.2 |
| 300 | 7.5 | 0-3600 | 3 | 0-65 | 2.2 | -0.1 | 32 | 0.2 |
| 500 | 11 | 0-3600 | 4 | 0-65 | 4 | -0.1 | 50 | 0.2 |
| 1000 | 15 | 0-3600 | 5.5 | 0-65 | 4 | -0.1 | 54 | 0.2 |
| 2000 | 18.5 | 0-3600 | 7.5 | 0-65 | 5.5 | -0.1 | recommend steam heating | 0.2 |
| 5000 | 22.5 | 0-3600 | 15 | 0-65 | 7.5 | -0.1 | 0.2 | |
| The parameters are for reference only, all the machines can be customized according to your needs. | ||||||||
Mixing Design:
The SUS316L paddle mix anticlockwise, Speed: 0-65r/min.
Teflon Scraper, Scraping the wall during mixing to reduce the sticking of materials to the tank.
The stirring paddle of the emulsifying mixer is hygienically polished, with no dead corner welding and no material residue.
Oil Tank and Water Tank:
Both the oil tank and the water tank are made of three-layer stainless steel, and the heating medium circulates in the jacket.
The parts of the two jars that come into contact with the material are made of 316L stainless steel and fully comply with GMP standards.
The motor is installed on the top of the tank, and the high dispersion speed reaches 1440r.p.m.
Homogenizer:
Name: Rotor and stator adopts wire-cutting finish machining high shearing homogenizer
Material: SUS316L
Speed: 0-3600rpm
Burgmann mechanical seal, water circulation cooling, cooling and homogenizer synchronization, NSK bearing, Siemens motor, Panasonic frequency inverter
Application Product:
The product is mainly applied in such industries as daily chemical care products, biopharmaceutical industry, food industry, paint and ink, nanometer materials, petrochemical industry, printing and dyeing auxiliaries, pulp & paper, pesticide, fertilier, plastic & rubber, electrics and electronics, fine chemical industry, etc. The emulsifying effect is more prominent for materials of high base viscosity and high solid content.
- Skin & Hair Care: Body lotion, Facial cream, Sunscree cream, Serum, Hair dye, Hair conditioner, etc.
- Cosmetic: Liquid foundation, Gel, BB cream, mascara, Lipstick, Concealer, Lip gloss, etc.
- Pharmaceutical: Ointment, Erythromycin eye ointment, Compound Dexamethasone Acetate, Skin repair gels, Scald creams, etc.
- Food: Mayonnaise, ketchup, Cheese, Sauce, Paste, Coconut oil, etc.
