Big Capacity 6000L Facial Vacuum Emulsifier Mixer Skincare Reactor Tank With Heating
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | TUV, CE, SGS, GMP |
| Model Number: | VME-A-1000L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case / Bubble Film Packaging |
| Delivery Time: | 35 Working Days |
| Payment Terms: | T/T, D/A, L/C |
| Supply Ability: | 20 Sets Per Month |
|
Detail Information |
|||
| Available Capacity: | 5L-6000L | Tank Structure: | 3 Layers Of Steel, 2 Jackets |
|---|---|---|---|
| Material: | SUS316L/SUS304 | Heating Method: | Electric Heating / Steam Heating |
| Motor Brand: | ABB Or SIEMENS | Mixing Method: | One Way Or Two Way Mixing With Teflon Scraper |
| Mixing Speed: | 0-65 R.p.m | Homogenizer Speed: | 0-3600 R.p.m |
| High Light: | Facial Vacuum Emulsifier Mixer,Big Capacity Vacuum Emulsifier Mixer,6000L Vacuum Emulsifier Mixer |
||
Product Description

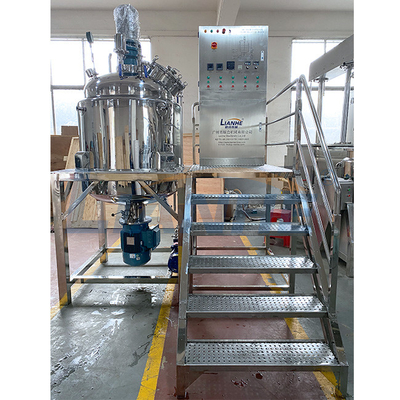

Big Capacity Facial Vacuum Emulsifier Mixer Skincare Reactor Tank with Heating
Brief Introduction:
It mainly refers to the rapid and uniform distribution of one or more phases into another continuous phase by using the high shear emulsifier when the material is in vacuum. It uses the strong kinetic energy brought by machinery to make the material bear hundreds of thousands of hydraulic shear per minute in the narrow gap between stator and rotor. Centrifugal extrusion, impact, tear and other comprehensive effects, instantly and evenly disperse and emulsify, and finally obtain bubble free, fine and stable high-quality products after high-frequency cycle.
New high-efficiency vacuum mixer cosmetic machine eletric heating lotion mixer cosmetic machine
1. SIEMENS frequency converter for speed adjustment, which can meet production of different technology requirement.
2. The vacuum defoaming can make the materials meet the requirement of being aseptic.The vacuum material sucking adopted can avoid dust,especially for the powder products.
3. Mechanical sealing, good sealing effect and long working life.
4. The tank body and the pipes adopt mirror polishing, which fully conforms to GMP standards.
5. Material contact parts all use SUS316L stainless steel.
6. The heating method mainly include electric or steam heating for customer's choice.

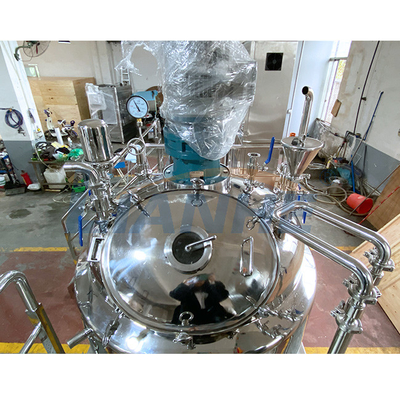

7. The emulsifying pot lid can adopt hydraulic lifting system, easy to clean and the cleaning effect is more obvious, the emulsifying pot can adopt tilt discharge.
Exquisite technology provides customers with cutting-edge products. As a supplier of overall solutions, we provide diversified stand-alone equipment, process automation, production process control, MES execution management and data collection, production data analysis and online reports, etc. The industry provides integrated solutions for digital factories such as online M2M and M2B.
Technical Parameter:
| Capacity (L) | Homogenizer | Agitator | Vacuum pump | Heating system | ||||
| power (kw) | speed (rpm) | power (kw) | speed (rpm) | power (kw) | Limit vacuum | Electric heating (kw) | Steam heating (Mpa) | |
| 5 | 0.55 | 0-3600 | 0.4 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 10 | 1.1 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 20 | 1.5 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 9 | 0.2 |
| 50 | 3 | 0-3600 | 0.75 | 0-65 | 0.75 | -0.1 | 12 | 0.2 |
| 100 | 4 | 0-3600 | 1.5 | 0-65 | 1.5 | -0.1 | 24 | 0.2 |
| 200 | 5.5 | 0-3600 | 1.5 | 0-65 | 2.2 | -0.1 | 28 | 0.2 |
| 300 | 7.5 | 0-3600 | 3 | 0-65 | 2.2 | -0.1 | 32 | 0.2 |
| 500 | 11 | 0-3600 | 4 | 0-65 | 4 | -0.1 | 50 | 0.2 |
| 1000 | 15 | 0-3600 | 5.5 | 0-65 | 4 | -0.1 | 54 | 0.2 |
| 2000 | 18.5 | 0-3600 | 7.5 | 0-65 | 5.5 | -0.1 | recommend steam heating | 0.2 |
| 5000 | 22.5 | 0-3600 | 15 | 0-65 | 7.5 | -0.1 | 0.2 | |
| The parameters are for reference only, all the machines can be customized according to your needs. | ||||||||
Feature:
- The vacuum emulsifiers produced by our company include many varieties.The homogenizing systems include upper homogenization,lower homogenization,internal and external circulating homogenization.The mixing systems include single-way mixing,double-way mixing and helical mixing.The lifting systems include single-cylinder lifting and double-cylinder lifting.Various high quality products can be customized according to customers' requirements.
- The triple mixing adopts the imported frequency converter for speed adjustment,which can meet different technological demands.

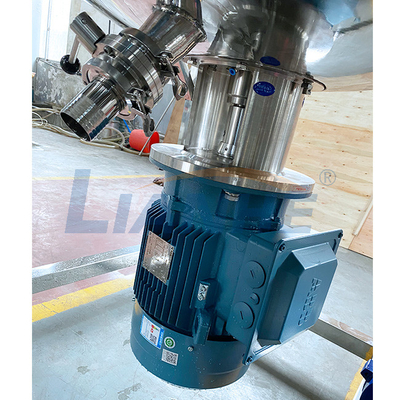

- The homogenizing structure made through German technology adopts the imported double-end mechanical seal effect.The maximum emulsifying rotation speed can reach 4,200rpm and the highest shearing fineness can reach 0.2-5um.
- The vacuum defoaming can make the materials meet the requirement of being aseptic.The vacuum material sucking is adopted,and especially for the powder materials,vacuum sucking can avoid dust.
- The emulsifying pot lid can adopt lifting system,easy to clean and the cleaning effect is more obvious,the emulsifying pot can adopt tilt discharge.
- The pot body is welded by imported three-layer stainless steel plate.The tank body and the pipes adopt mirror polishing,which fully conforms to GMP requirements.
- According to technological requirements,the tank body can heat and cool the materials.The heating modes mainly include steam heating and electric heating.
- To ensure the control of the whole machine is more stable,the electric appliances adopt imported configurations,so as to fully meet the international standards.
Work Elements:
- The homogenizing head is removable and easy to clean. General creams and lotions can be cleaned directly without disassembly;
- The brushless motor does not produce dust, has low noise and stable operation;
- It can stir materials up to 70,000cp.s, with strong homogenization force and fast speed;
- It adopts feedback speed measurement to provide accurate data for materials of different viscosity;
- Built-in microcomputer fault detection function, real-time protection of the safety of the equipment hardware;
Application Product:
- Skin & Hair Care: Body lotion, Facial cream, Sunscree cream, Serum, Hair dye, Hair conditioner, etc.
- Cosmetic: Liquid foundation, Gel, BB cream, mascara, Lipstick, Concealer, Lip gloss, etc.
- Pharmaceutical: Ointment, Erythromycin eye ointment, Compound Dexamethasone Acetate, Skin repair gels, Scald creams, etc.
- Food: Mayonnaise, ketchup, Cheese, Sauce, Paste, Coconut oil, etc.
