1000L Fixed High Shear Vacuum Emulsifier Mixer Heating Cosmetic Reactor
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | CE , ISO , SGS , TUV |
| Model Number: | LH-VME 1000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Packaging Details: | Normally packaged in wooden case or wrapping film, also can be customized |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T, L/C, D/A, Cash |
| Supply Ability: | 20 Set/Sets per Month |
|
Detail Information |
|||
| Working Capacity: | 5L-5000L (customized) | Homogenizer Motor: | Imported Siemens Or ABB |
|---|---|---|---|
| Application: | Ointment/cosmetic/cream/paste | Mixing Speed: | 0-65 Rpm |
| Homogenizing Speed: | 0-3600 Rpm | Heating Way: | Steam/Electric Heating |
| Control Way: | SIEMENS PLC Touch Screen/Button Control Panel | Material: | All Product Contact Part Are Made Of SUS316L |
| High Light: | Fixed High Shear Vacuum Emulsifier,1000L High Shear Vacuum Emulsifier |
||
Product Description
1000L Fixed Type Vacuum Emulsifier Mixer Cosmetic Cream Ointment Paste Making Machine with Heating
500L 1000L Fixed High Shear Vacuum Emulsifier Mixer Heating Cosmetic Reactor
Introduction
1. The machine has triple blender, hydraulic lift cover, high-speed homogeneity blender (Speed is 0-3500r/min, frequency speed regulation) and low-speed scraper blender (Speed is 0-40r/min, frequency speed regulation).

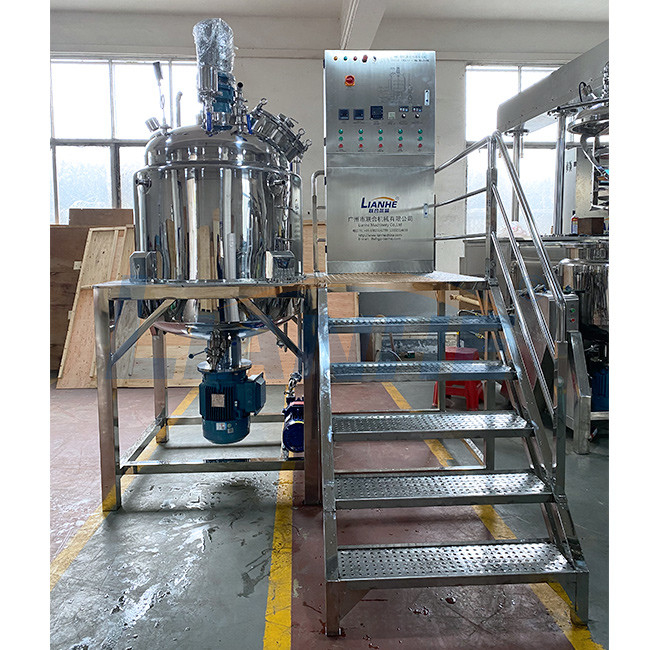

2. The machine is specially designed adopting advanced technology of oversea according to the cosmetic and ointment production technology. The machine is made up of pretreatment boiler, vacuum emulsification blending boiler, vacuum pump, hydraulic system and worktable.
3. The machine has easy operation, steady capability, good homogeneity, high efficiency, reasonable structure, small volume and high automation level and easily clean.
Usage
PT-THZRJ vacuum emulsification blender is specially designed adopting advanced technology of oversea according to the cosmetic and ointment production technology. The machine is made up of pretreatment boiler, vacuum emulsification blending boiler,vacuum pump, hydraulic system and worktable.
Characteristic
This unit has such features as simple operation, stable performance, good homogenization, high production efficiency, convenient cleaning, reasonable structure, small floor space, and high automatization etc.
- The vacuum emulsifiers produced by our company include many varieties.The homogenizing systems include upper homogenization,lower homogenization,internal and external circulating homogenization.The mixing systems include single-way mixing,double-way mixing and helical mixing.The lifting systems include single-cylinder lifting and double-cylinder lifting.Various high quality products can be customized according to customers' requirements.
- The triple mixing adopts the imported frequency converter for speed adjustment,which can meet different technological demands.
- The homogenizing structure made through German technology adopts the imported double-end mechanical seal effect.The maximum emulsifying rotation speed can reach 4,200rpm and the highest shearing fineness can reach 0.2-5um.
- The vacuum defoaming can make the materials meet the requirement of being aseptic.The vacuum material sucking is adopted,and especially for the powder materials,vacuum sucking can avoid dust.
- The emulsifying pot lid can adopt lifting system,easy to clean and the cleaning effect is more obvious,the emulsifying pot can adopt tilt discharge.
- The pot body is welded by imported three-layer stainless steel plate.The tank body and the pipes adopt mirror polishing,which fully conforms to GMP requirements.
- According to technological requirements,the tank body can heat and cool the materials.The heating modes mainly include steam heating and electric heating.

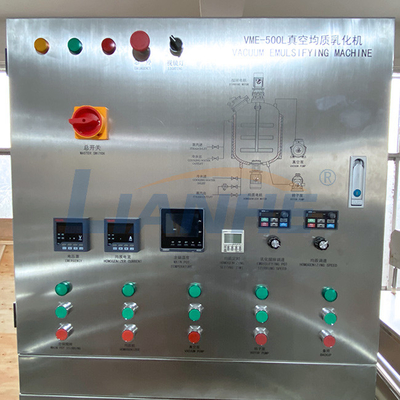

- To ensure the control of the whole machine is more stable,the electric appliances adopt imported configurations,so as to fully meet the international standards.
Parameters
| Capacity (L) | Homogenizer | Agitator | Vacuum pump | Heating system | ||||
| power (kw) | speed (rpm) | power (kw) | speed (rpm) | power (kw) | Limit vacuum | Electric heating (kw) | Steam heating (Mpa) | |
| 5 | 0.55 | 0-3600 | 0.4 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 10 | 1.1 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 20 | 1.5 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 9 | 0.2 |
| 50 | 3 | 0-3600 | 0.75 | 0-65 | 0.75 | -0.1 | 12 | 0.2 |
| 100 | 4 | 0-3600 | 1.5 | 0-65 | 1.5 | -0.1 | 24 | 0.2 |
| 200 | 5.5 | 0-3600 | 1.5 | 0-65 | 2.2 | -0.1 | 28 | 0.2 |
| 300 | 7.5 | 0-3600 | 3 | 0-65 | 2.2 | -0.1 | 32 | 0.2 |
| 500 | 11 | 0-3600 | 4 | 0-65 | 4 | -0.1 | 50 | 0.2 |
| 1000 | 15 | 0-3600 | 5.5 | 0-65 | 4 | -0.1 | 54 | 0.2 |
| 2000 | 18.5 | 0-3600 | 7.5 | 0-65 | 5.5 | -0.1 | recommend steam heating | 0.2 |
| 5000 | 22.5 | 0-3600 | 15 | 0-65 | 7.5 | -0.1 | 0.2 | |
| The parameters for reference only, all the machines can be customized accordingly. | ||||||||
Why Choose US
We provide Turn-key project service to customer.
1. Factory Layout design;
2. Factory Decoration based on GMP standard;
3. Formula of products;
4. Raw material etc;
5. Machine design, whole production line from A to Z;
6. Shipping service, FOB, CFR, CIF etc;
7. Installation service. Training service, maintain.
