1500L Two Way Mixing Vacuum Emulsifier Mixer For Mayonnaise Ointment Cream
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | CE, SGS, TUV |
| Model Number: | VME-F1500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case / Bubble Film Packaging |
| Delivery Time: | 20 working days |
| Payment Terms: | T/T, D/A, L/C |
| Supply Ability: | 30 Sets per Month |
|
Detail Information |
|||
| Main Tank Structure: | 3 Layers, 2 Jackets | Material: | SUS316L/SUS304/SUS304 (in/mid/out) |
|---|---|---|---|
| Design Capacity: | 1250L | Working Capacity: | 1000L |
| Mixing Speed: | 0-65RPM | Mixing Method: | Two Way Mixing With Wall Scraper |
| Homogenizer: | 0-3600RPM | Tank Structure: | Main Tank + Water Tank + Oil Tank |
| Vacuum System: | -0.1MPa | ||
| High Light: | 1500L Vacuum Emulsifier Mixer,Ointment Cream Vacuum Emulsifier Mixer |
||
Product Description
1500L Two Way Mixing Vacuum Emulsifier Mixer For Mayonnaise Ointment Cream
Brief Introduction:

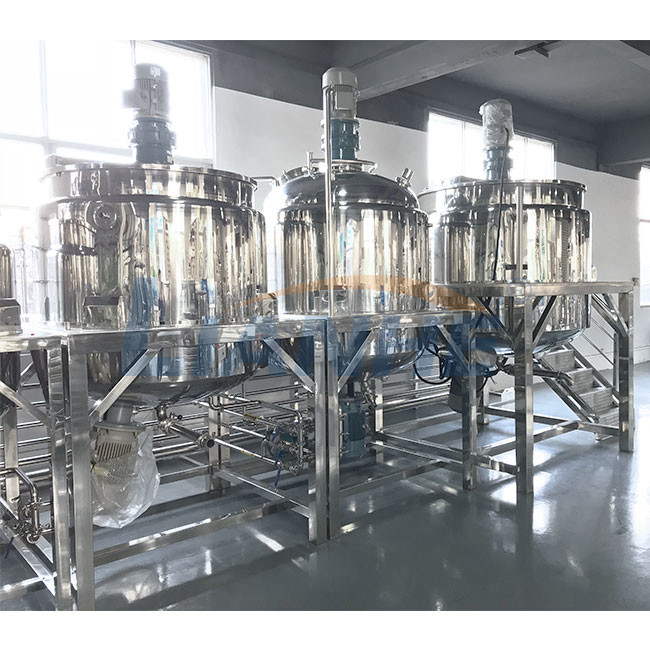

The vacuum emulsifier mixer mainly consists of water pot, oil pot, emulsifying pot (main tank), vacuum system, hydraulic lifting system (optional), button or PLC control system, operation platform, etc.
For different capacity requirements, we can customize the capacity from 5 litre to 6000 litre, and different homogenizer options for your choice.
The machine is widely used in Cosmetic, Daily Chemical, Food and Pharmaceutical area for manufacturing viscous and none-viscous liquid products, such as cream, paste, sanitizer gel, body lotion, hair dye, ointment, sauce, mayonnaise, etc.
Featured by easy operation, stable performance, good homogenizing performance, high productivity, easy cleaning, reasonable structure, space saving, etc.
Technical Parameter:
| Capacity (L) | Homogenizer | Agitator | Vacuum pump | Heating system | ||||
| power (kw) | speed (rpm) | power (kw) | speed (rpm) | power (kw) | Limit vacuum | Electric heating (kw) | Steam heating (Mpa) | |
| 5 | 0.55 | 0-3600 | 0.4 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 10 | 1.1 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 20 | 1.5 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 9 | 0.2 |
| 50 | 3 | 0-3600 | 0.75 | 0-65 | 0.75 | -0.1 | 12 | 0.2 |
| 100 | 4 | 0-3600 | 1.5 | 0-65 | 1.5 | -0.1 | 24 | 0.2 |
| 200 | 5.5 | 0-3600 | 1.5 | 0-65 | 2.2 | -0.1 | 28 | 0.2 |
| 300 | 7.5 | 0-3600 | 3 | 0-65 | 2.2 | -0.1 | 32 | 0.2 |
| 500 | 11 | 0-3600 | 4 | 0-65 | 4 | -0.1 | 50 | 0.2 |
| 1000 | 15 | 0-3600 | 5.5 | 0-65 | 4 | -0.1 | 54 | 0.2 |
| 2000 | 18.5 | 0-3600 | 7.5 | 0-65 | 5.5 | -0.1 | recommend steam heating | 0.2 |
| 5000 | 22.5 | 0-3600 | 15 | 0-65 | 7.5 | -0.1 | 0.2 | |
| The parameters are for reference only, all the machines can be customized according to your needs. | ||||||||
Performances And Features:
- Complex scraping board blending oar is suitable to every kind of complicated recipe and achieve optimizing effect.
- Teflon scraping board cater to body of blending groove and scrape out viscosity material on boiler wall.
- Homogenizer is installed on boiler bottom to increase motor power more thoroughly and strongly. During fewproduction, it can exert homogenizing effect fully.
- Mightiness balance isotactic curve rotor is matched with stator with corresponding structure to realize liquid high -capability cut,rubbing,centrifugal to make sure exquisite and slick cream; boiler body and pipe surface mirror polishing 300EMSH (sanitary grade) accords with Daily Chemical and GMP regulation.
- Homogenizing vacuum emulsifier mixer can choose frequency conversion timing homogenizer and highest rotate speed is 0-3600 r/min.
Service:
-
Warranty: One year since the date of installation. If there is any wearing parts be within the warranty and isn’t caused by un-proper operation, Lianhe will offer new parts for free.
-
Inspection: Buyer could visit our factory for site inspection, we could also send some machine testing videos to buyer if buyer couldn't come.
-
Machine Installation or Fixing: On site installation is available, Lianhe can send 1-2 technicians to buyer's factory for installation, testing and training. We can also provide online installation guidance instead, and provide you some 3D videos, instruction videos if buyer prefer installing by themselves.
-
Lifetime maintenance assistance and online video call service.
Application Product:
- Skin & Hair Care: Body lotion, facial cream, sunscree cream, serum, hair dye, hair conditioner, etc.
- Cosmetic: Liquid foundation, BB cream, mascara, lipstick, concealer, lip gloss, etc.
- Pharmaceutical: Ointment, erythromycin eye ointment, Compound Dexamethasone Acetate, etc.
- Food: Mayonnaise, ketchup, cheese, sauce, paste, coconut oil, etc.
This machine is suitable for cosmetic cream, paste, mayonnaise, shampoo, syrup, etc products in cosmetic, food, beverage, chemical, daily chemical, beverage, pharmaceutical, medical, etc industries. If customers have any doubt on the machine, or if you are not sure whether this machine is suitable for your products or not, please send us inquiry and we will get back to you very soon.
