Cosmetic Cream Vacuum Emulsifier Mixer High Shear Homogenizer Wall Scraper
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | CE, SGS, TUV |
| Model Number: | VME-B300 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case / Bubble Film Packaging |
| Delivery Time: | 20 working days |
| Payment Terms: | T/T, D/A, L/C |
| Supply Ability: | 30 Sets per Month |
|
Detail Information |
|||
| Material: | SUS316L/SUS304/SUS304 (in/mid/out) | Design Capacity: | 375 |
|---|---|---|---|
| Working Capacity: | 300 | Tank Structure: | Main Tank + Water Tank + Oil Tank |
| Mixing Speed: | 0-65RPM | Mixing Method: | Two Way Mixing With Wall Scraper |
| Homogenizer: | 0-3600RPM | Vacuum System: | -0.1MPa |
| High Light: | Wall Scraper Vacuum Emulsifier Mixer,Cosmetic Cream Vacuum Emulsifier Mixer,3600RPM High Shear Homogenizer |
||
Product Description
100L Vacuum Emulsifier Mixer Hydraulic Lifting Type Bidirectional Mixing
Cosmetic Cream Vacuum Emulsifier Mixer High Shear Homogenizer Wall Scraper
Technical Parameter:
| Capacity (L) | Homogenizer | Agitator | Vacuum pump | Heating system | ||||
| power (kw) | speed (rpm) | power (kw) | speed (rpm) | power (kw) | Limit vacuum | Electric heating (kw) | Steam heating (Mpa) | |
| 5 | 0.55 | 0-3600 | 0.4 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 10 | 1.1 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 20 | 1.5 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 9 | 0.2 |
| 50 | 3 | 0-3600 | 0.75 | 0-65 | 0.75 | -0.1 | 12 | 0.2 |
| 100 | 4 | 0-3600 | 1.5 | 0-65 | 1.5 | -0.1 | 24 | 0.2 |
| 200 | 5.5 | 0-3600 | 1.5 | 0-65 | 2.2 | -0.1 | 28 | 0.2 |
| 300 | 7.5 | 0-3600 | 3 | 0-65 | 2.2 | -0.1 | 32 | 0.2 |
| 500 | 11 | 0-3600 | 4 | 0-65 | 4 | -0.1 | 50 | 0.2 |
| 1000 | 15 | 0-3600 | 5.5 | 0-65 | 4 | -0.1 | 54 | 0.2 |
| 2000 | 18.5 | 0-3600 | 7.5 | 0-65 | 5.5 | -0.1 | recommend steam heating | 0.2 |
| 5000 | 22.5 | 0-3600 | 15 | 0-65 | 7.5 | -0.1 | 0.2 | |
| The parameters are for reference only, all the machines can be customized according to your needs. | ||||||||
- SIEMENS frequency converter for speed adjustment, which can meet production of different technology requirement.
- The vacuum defoaming can make the materials meet the requirement of being aseptic.The vacuum material sucking adopted can avoid dust,especially for the powder products.
- Mechanical sealing, good sealing effect and long working life.
- The tank body and the pipes adopt mirror polishing, which fully conforms to GMP standards.
- Material contact parts all use SUS316L stainless steel.
- The heating method mainly include electric or steam heating for customer's choice.
- The emulsifying pot lid can adopt hydraulic lifting system, easy to clean and the cleaning effect is more obvious, the emulsifying pot can adopt tilt discharge.
With the help of precise processing technology, and high cooperation between rotor and stator, high-speed rotation of powerful motor causes vacuum between rotor and stator, and materials are inhaled from the top of rotor and stator to the gap in between. The strong kinetic energy makes the rotor produce extremely high linear velocity, which makes the material fly out after strong impact, crushing, centrifugal extrusion, liquid layer friction and strong shearing between the gap of rotor and stator, and generate strong turbulence under the action of various forces in different directions. The stable emulsion was produced by depolymerization, dispersion, homogenization, refinement and shearing of the material with a certain amount of emulsifier.
Application Product:
- Skin & Hair Care: Body lotion, facial cream, sunscree cream, serum, hair dye, hair conditioner, etc.
- Cosmetic: Liquid foundation, BB cream, mascara, lipstick, concealer, lip gloss, etc.
- Pharmaceutical: Ointment, erythromycin eye ointment, Compound Dexamethasone Acetate, etc.
- Food: Mayonnaise, ketchup, cheese, sauce, paste, coconut oil, etc.
This machine is suitable for cosmetic cream, paste, mayonnaise, shampoo, syrup, etc products in cosmetic, food, beverage, chemical, daily chemical, beverage, pharmaceutical, medical, etc industries. If customers have any doubt on the machine, or if you are not sure whether this machine is suitable for your products or not, please send us inquiry and we will get back to you very soon.
Machine Details:

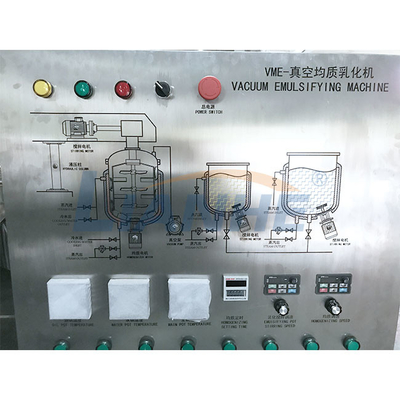

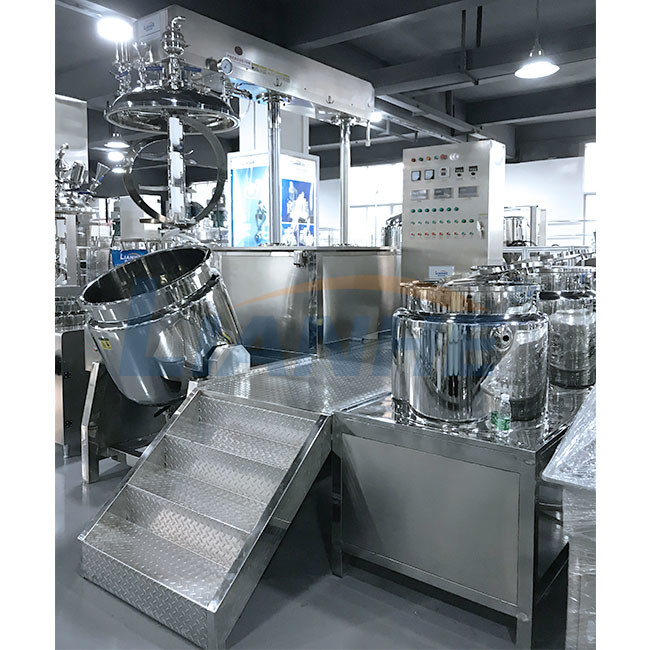

The vacuum emulsifying mixer is mainly composed of water pot, oil pot, emulsifying pot, vacuum system, lifting system (optional), electric control system (PLC is optional), operation platform, etc.

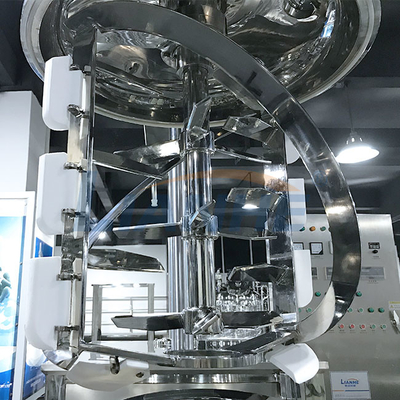

The materials in the water-phase tank and oil-phase tank are heated up and stirred. After they are thoroughly mixed, they will be transferred to the emulsifying tank by the vacuum pump. The material will be stirred by the upper part of the central paddle, combined with the PTFE scraper sweeping the wall, the material will be stirred thoroughly and meanwhile be pushed down to the emulsifier at the low part of the central axle. With a very high-speed emulsifying effect, the material will be seriously cut, sheared, and cracked into 200nm - 2um particles. The bubbles that appear during the process will be sucked out promptly in the vacuum status in the tank.
