Stainless Steel Cosmetic Cream Emulsifier 1T Mixer Vacuum Ointment Gel Emulsifying Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | TUV, CE, SGS, GMP |
| Model Number: | VME-A-1000L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case / Bubble Film Packaging |
| Delivery Time: | 35 Working Days |
| Payment Terms: | T/T, D/A, L/C |
| Supply Ability: | 20 Sets Per Month |
|
Detail Information |
|||
| Available Capacity: | 5L-6000L | Tank Structure: | 3 Layers Of Steel, 2 Jackets |
|---|---|---|---|
| Material: | SUS316L/SUS304 | Heating Method: | Electric Heating / Steam Heating |
| Cooling: | Tap Water / Ice Water Cooling | Mixing Method: | One Way Or Two Way Mixing With Teflon Scraper |
| Mixing Speed: | 0-65 R.p.m | Homogenizer Speed: | 0-3600 R.p.m |
| Control: | PLC&Touch Screen / Button | ||
| High Light: | Stainless Steel Cosmetic Cream Emulsifier,1T Mixer Cosmetic Cream Emulsifier,Vacuum Ointment Gel Emulsifying Machine |
||
Product Description
Stainless Steel Cosmetic Cream Emulsifier 1T Mixer Vacuum Ointment Gel Emulsifying Machine
Brief Introduction:
Vacuum emulsifying machine is an ideal option to produce high-grade skin care products, pharmacy ointment, and many other kinds of creams which need to be very soft and smooth. It has the functions of heating, mixing, scraping, rotating at different speeds and vacuum supply. It has a very wide application from cosmetics (skin cream, hair gel, lotion etc) and food (jam, chocolate, sauces etc.) to pharmacy (ointment, syrup, paste) and chemicals(painting, adhesives, detergents)

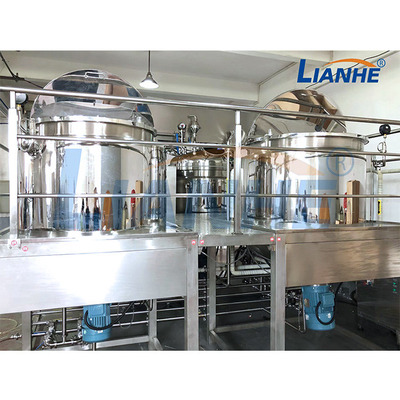

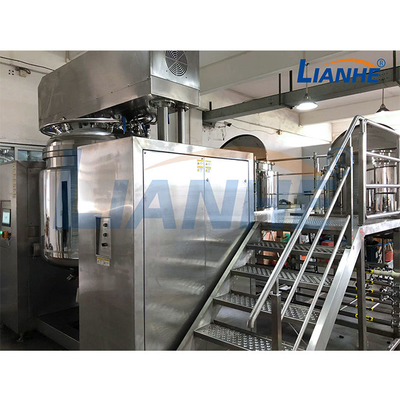

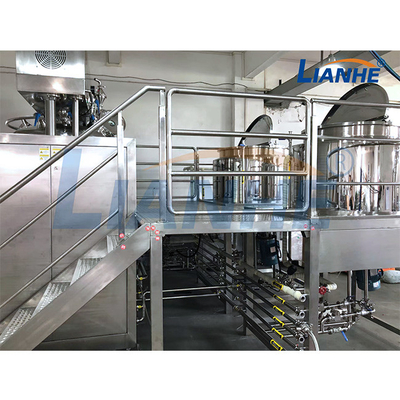

The machine is mainly made up of oil tank, water tank, vacuum homogeneous tank (main tank), heating system, mixing system, vacuum system, electric lifting system, operation control cabinet and piping system.
Technical Parameter:
| Capacity (L) | Homogenizer | Agitator | Vacuum pump | Heating system | ||||
| power (kw) | speed (rpm) | power (kw) | speed (rpm) | power (kw) | Limit vacuum | Electric heating (kw) | Steam heating (Mpa) | |
| 5 | 0.55 | 0-3600 | 0.4 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 10 | 1.1 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 20 | 1.5 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 9 | 0.2 |
| 50 | 3 | 0-3600 | 0.75 | 0-65 | 0.75 | -0.1 | 12 | 0.2 |
| 100 | 4 | 0-3600 | 1.5 | 0-65 | 1.5 | -0.1 | 24 | 0.2 |
| 200 | 5.5 | 0-3600 | 1.5 | 0-65 | 2.2 | -0.1 | 28 | 0.2 |
| 300 | 7.5 | 0-3600 | 3 | 0-65 | 2.2 | -0.1 | 32 | 0.2 |
| 500 | 11 | 0-3600 | 4 | 0-65 | 4 | -0.1 | 50 | 0.2 |
| 1000 | 15 | 0-3600 | 5.5 | 0-65 | 4 | -0.1 | 54 | 0.2 |
| 2000 | 18.5 | 0-3600 | 7.5 | 0-65 | 5.5 | -0.1 | recommend steam heating | 0.2 |
| 5000 | 22.5 | 0-3600 | 15 | 0-65 | 7.5 | -0.1 | 0.2 | |
| The parameters are for reference only, all the machines can be customized according to your needs. | ||||||||
Feature:
1. Homogenizer is installed on boiler bottom to increase motor power more thoroughly and strongly. It uses advanced German technology, with unique structure. The material moves of high-speed in the multi-gap between the rotor and the stator, which forms a strong hydraulic shearing. During few production, it can exert homogenizing effect fully.
2. Mightiness balance isotactic curve rotor is matched with stator with corresponding structure to realize liquid high-capability cut,rubbing,centrifugal to make sure exquisite and slick cream; boiler body and pipe surface mirror polishing.
3. Customer can choose frequency conversion timing homogenizer and highest rotate speed is 3600 r/min.
4. The oil tank and water tanks are equipped with rating stirring dispersion device, so that oil and water could be heated more quickly and evenly.
5. The lid is with a light observation hole, which can keep control of the material emulsification situation in the kettle. There is a small material entrance, which is convenient to add special essence into the kettle.
6. Bottom material discharging is easy to operate. The finished materials can be directly moved into the filling and packing
system. The materials can also be dumped out, which is easy to clean.
Mixing Design:
The internal SUS316L paddle mix anticlockwise, Speed: 0-65r/min.
The outer SUS316L paddle mix clockwise, Speed: 0-65r/min.
Teflon Scraper, Scraping the wall during mixing to reduce the sticking of materials to the tank.
The stirring paddle of the emulsifying mixer is hygienically polished, with no dead corner welding and no material residue.
Work Elements:
After the materials are in the water boiler and oil boiler to heating & mixing then draw into the emulsification boiler by the vacuum pump, through the middle(fixed) stirrer & teflon Scrapers residues stirrer in the emulsification boiler that sweep the residues on the wall of the boiler, so make the produces of wiped off become the new interface constantly, then the blade cut off ,compress,fold round ,mixing and running to the homogenizer, according to the high shear homogenizer and the cutting case to strong cutting off,impact,Without rules mobility, etc. the material by cutting in the cut interstices and turn to a particle of 2-15um prompt, because the emulsification boiler is under vacuum state, the bubble that the supplies produce in the course of mixing is taken away in time.
Application Product:
- Skin & Hair Care: Body lotion, Facial cream, Sunscree cream, Serum, Hair dye, Hair conditioner, etc.
- Cosmetic: Liquid foundation, Gel, BB cream, mascara, Lipstick, Concealer, Lip gloss, etc.
- Pharmaceutical: Ointment, Erythromycin eye ointment, Compound Dexamethasone Acetate, Skin repair gels, Scald creams, etc.
- Food: Mayonnaise, ketchup, Cheese, Sauce, Paste, Coconut oil, etc.
Stainless steel mixing tank vacuum emulsifier homogenizer mixer for cream tomato paste ointment emulsifying machine
Vacuum Emulsifier Homogenizer Mixer is making production under the vacuum condition, it makes use of the high
shear emulsifier to distribute one or several phases to another continuous phase rapidly and evenly. The materials will be
processed in the narrow space between stator and rotor by strong energy of motion produced by the mechanical effect. By the operation of hydraulic shearing, centrifugal extruding, impacting, breaking and turbulence for over 100 thousand times per minute, the materials will be dispersed and emulsified instantly and evenly. After reciprocating circulation at high frequency, the fine finished products of stable and high quality without bubbles will be achieved.
