300L Cosmetic Production Line Hydraulic Lifting Vacuum Emulsifying Mixer Cream Ointment Mixer
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | CE , ISO , SGS , TUV |
| Model Number: | LH-VME 300 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Packaging Details: | Normally packaged in wooden case or wrapping film, also can be customized |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C, D/A, D/P, Cash |
| Supply Ability: | 25 Sets per Month |
|
Detail Information |
|||
| Material: | SUS 316L & 304 | Working Capacity: | 300L |
|---|---|---|---|
| Voltage: | 220V / 380V / 480V Customized | Mixing Speed: | 0 - 65 Rpm |
| Homogenizer Speed: | 0 - 3600 Rpm | Application: | Cosmetic, Food, Pharmaceutic |
| High Light: | Hydraulic Lifting Vacuum Emulsifying Mixer,300L Vacuum Emulsifying Mixer |
||
Product Description
300L Cosmetic Production Line Hydraulic Lifting Vacuum Emulsifying Mixer Cream Ointment Mixer
product description:
300L Vacuum Emulsifying Mixer is mainly applied in such industries as daily chemical care products, biopharmaceutical industry, food industry,paint and ink, nanometer materials, petrochemical industry, printing and dyeing auxiliaries, pulp & paper, pesticide, fertilier,plastic & rubber, electrics and electronics, fine chemical industry, etc. The emulsifying effect is more prominent for materialsof high base viscosity and high solid content.
product composition:

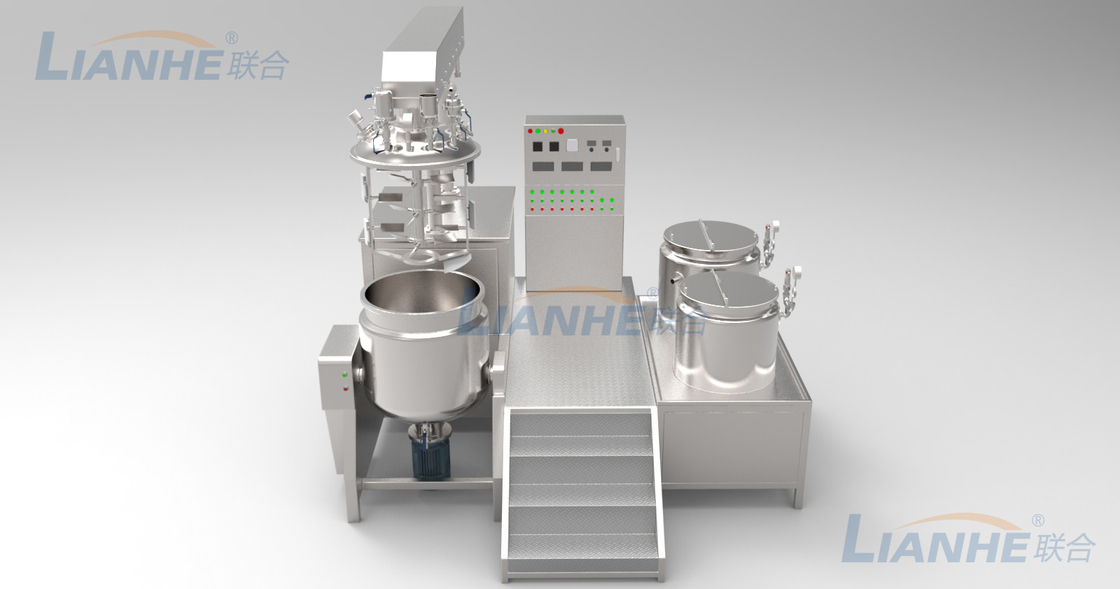

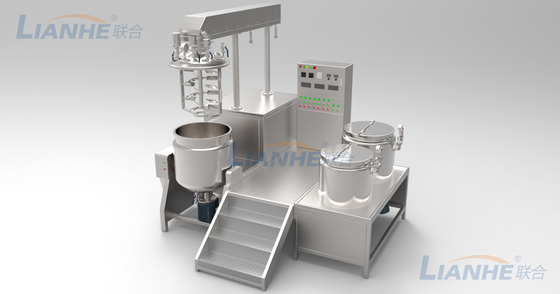

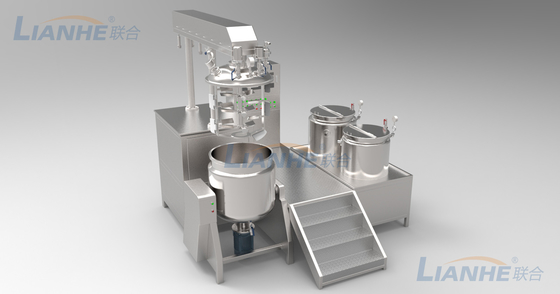

300L Cosmetic Production Line Hydraulic Lifting Vacuum Emulsifying Mixer Cream Ointment Mixer, The vacuum emulsifying mixer is mainly composed of water pot, oil pot, emulsifying pot, vacuum system, lifting system (optional), electric control system (PLC is optional), operation platform, etc.
Product parameters:
| Capacity (L) | Homogenizer | Agitator | Vacuum pump | Heating system | ||||
| power (kw) | speed (rpm) | power (kw) | speed (rpm) | power (kw) | Limit vacuum | Electric heating (kw) | Steam heating (Mpa) | |
| 5 | 0.55 | 0-3600 | 0.4 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 10 | 1.1 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 20 | 1.5 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 9 | 0.2 |
| 50 | 3 | 0-3600 | 0.75 | 0-65 | 0.75 | -0.1 | 12 | 0.2 |
| 100 | 4 | 0-3600 | 1.5 | 0-65 | 1.5 | -0.1 | 24 | 0.2 |
| 200 | 5.5 | 0-3600 | 1.5 | 0-65 | 2.2 | -0.1 | 28 | 0.2 |
| 300 | 7.5 | 0-3600 | 3 | 0-65 | 2.2 | -0.1 | 32 | 0.2 |
| 500 | 11 | 0-3600 | 4 | 0-65 | 4 | -0.1 | 50 | 0.2 |
| 1000 | 15 | 0-3600 | 5.5 | 0-65 | 4 | -0.1 | 54 | 0.2 |
| 2000 | 18.5 | 0-3600 | 7.5 | 0-65 | 5.5 | -0.1 | recommend steam heating | 0.2 |
| 5000 | 22.5 | 0-3600 | 15 | 0-65 | 7.5 | -0.1 | 0.2 | |
| The parameters for reference only, all the machines can be customized accordingly. | ||||||||
After the materials are mixed and reacted in the water pot and oil pot by heating and stirring, they are sucked into the emulsification pot by the vacuum pump, and stirred through the center of the upper part of the emulsification pot. The sticky material causes the material to be taken to continuously generate a new interface, and then through the shearing, compression and folding of the blade and the rotating blade, it is stirred and mixed to flow down to the homogenizer below the pot body, and the material is then rotated at a high speed. In the process of strong shearing, impacting, turbulent flow, etc. generated between the cutting wheel and the fixed cutting sleeve, the material is cut in the shearing seam and quickly broken into particles of 200nm-2um. Because the emulsification pot is in a vacuum state, the material The air bubbles generated during the stirring process are evacuated in time.
Our Servers:
We provide Turn-key project service to customer.
1. Factory Layout design;
2. Factory Decoration based on GMP standard;
3. Formula of products;
4. Raw material etc;
5. Machine design, whole production line from A to Z;
6. Shipping service, FOB, CFR, CIF etc;
7. Installation service. Training service, Mainte
