SGS 120 Degree Shampoo Manufacturing Machine , 500L Equipment For Making Cosmetics
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | CE , ISO , SGS , TUV |
| Model Number: | LH-VME 500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Packaging Details: | Normally packaged in wooden case or wrapping film, also can be customized |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T, L/C, D/A |
| Supply Ability: | 20 Set/Sets per Month |
|
Detail Information |
|||
| Capacity: | 500L (can Be Customized) | Stirring Motor: | Siemens Or ABB Only |
|---|---|---|---|
| Stirring Speed: | 0-65 Rpm | Homogenizing Motor: | Siemens Or ABB Only |
| Homogenizing Speed: | 0-3600 Rpm | Heating Method: | Steam Or Electric (Optional) |
| Heating Temperature: | 0-120 ℃ | Key Selling Points: | Low Maintenance Cost |
| High Light: | SGS Shampoo Manufacturing Machine,120 Degree Shampoo Manufacturing Machine,500L Equipment For Making Cosmetics |
||
Product Description

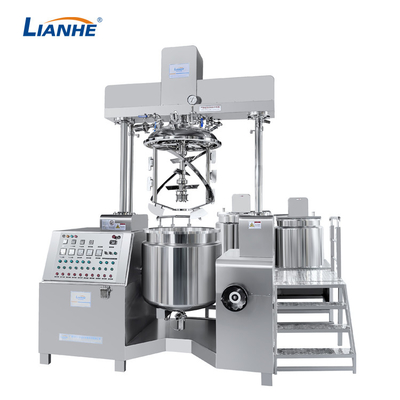

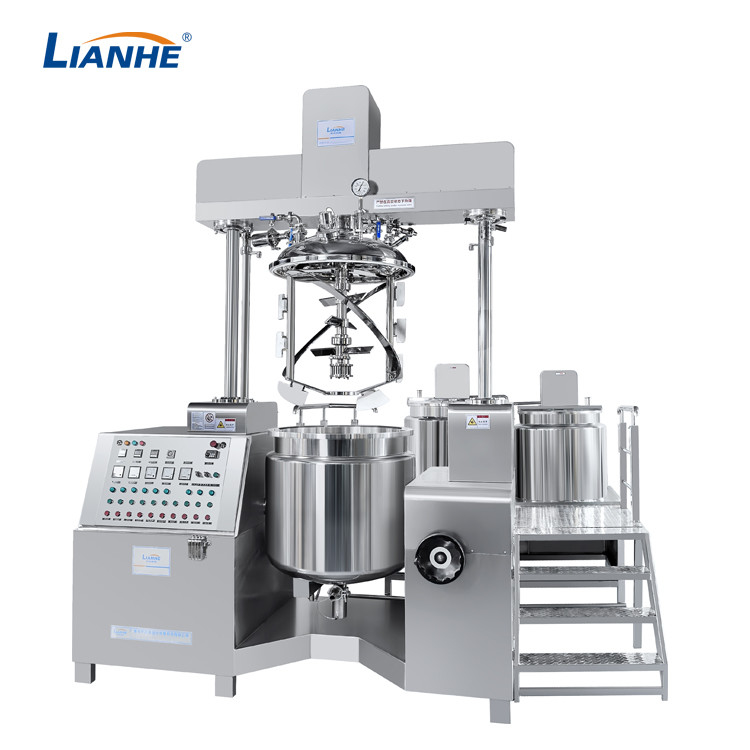

500L Double-cylinder hydraulic lifting vacuum emulsifier mixer homogenizer
Product Description:
The vacuum emulsifier homogenizer machine is composed of mixing, homogenizing, dispersing, emulsifying and Plc or button control system and also be used with oil, water phase, vacuum, heating/cooling system, ect. Materials go through the upper tank stirring, PTFE scraper will sweep the wall sticky materials, and then after the blades and rotary blades cut, compressed, The materials is cut in the high shear condition, due to the emulsification tank in a vacuum condition, the bubbles generated in the mixing process is promptly removed.
The mixing system of the machine is designed to produce creams and liquids of different viscosities. The speed can also be adjusted according to customer preferences. The vacuum system will ensure successful operation by preventing the formation of bubbles in the material.
Product Structure:

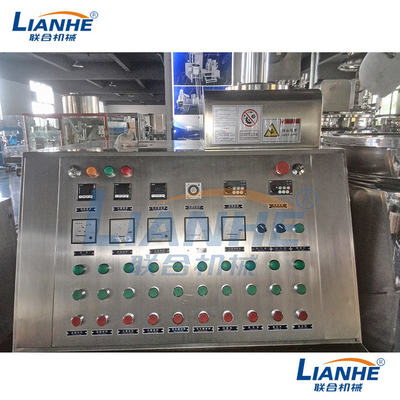

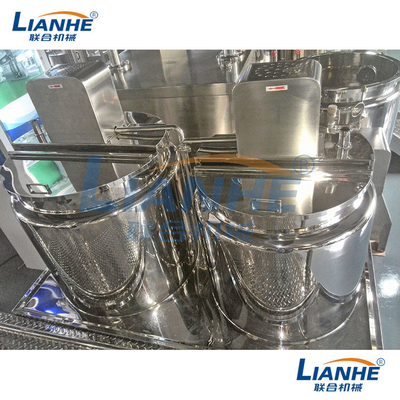

The vacuum emulsifying mixer is mainly composed of water pot, oil pot, emulsifying pot, vacuum system, lifting system (optional), electric control system (PLC is optional), operation platform, etc.
Product Parameters:
| Capacity (L) | Homogenizer | Agitator | Vacuum pump | Heating system | ||||
| power (kw) | speed (rpm) | power (kw) | speed (rpm) | power (kw) | Limit vacuum | Electric heating (kw) | Steam heating (Mpa) | |
| 5 | 0.55 | 0-3600 | 0.4 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 10 | 1.1 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 20 | 1.5 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 9 | 0.2 |
| 50 | 3 | 0-3600 | 0.75 | 0-65 | 0.75 | -0.1 | 12 | 0.2 |
| 100 | 4 | 0-3600 | 1.5 | 0-65 | 1.5 | -0.1 | 24 | 0.2 |
| 200 | 5.5 | 0-3600 | 1.5 | 0-65 | 2.2 | -0.1 | 28 | 0.2 |
| 300 | 7.5 | 0-3600 | 3 | 0-65 | 2.2 | -0.1 | 32 | 0.2 |
| 500 | 11 | 0-3600 | 4 | 0-65 | 4 | -0.1 | 50 | 0.2 |
| 1000 | 15 | 0-3600 | 5.5 | 0-65 | 4 | -0.1 | 54 | 0.2 |
| 2000 | 18.5 | 0-3600 | 7.5 | 0-65 | 5.5 | -0.1 | recommend steam heating | 0.2 |
| 5000 | 22.5 | 0-3600 | 15 | 0-65 | 7.5 | -0.1 | 0.2 | |
| The parameters for reference only, all the machines can be customized accordingly. | ||||||||
Main Features:
- Fixed Vacuum Mixing Machine Capacity: 50L-5000L and other general specifications and non-standard design and production.
- The Emulsifying Tank lid adopts a Vacuum system, easy to clean, the emulsifying tank can adopt Positive pressure discharge.
- The vacuum defoaming can make the materials meet the requirement of being aseptic. The vacuum material sucking adopted can avoid dust.
- PTFE scraping board cater to the body of blending groove and scrape out viscosity material on the boiler wall.
- Homogenizer is installed on the Fixed Vacuum Making Machine bottom to increase motor power more thoroughly and strongly. During a few productions, it can exert the homogenizing effect fully.
- Mightiness balance isotactic curve rotor is matched with the stator to realize liquid high-capability cut, rubbing, centrifugal to make sure exquisite and slick cream.
- Boiler body and pipe surface mirror polishing 300 mesh (sanitation grade) accord with Daily chemical and GMP regulation.
- SIEMENS frequency converter for speed adjustment of 0-3000 rpm, which can meet the production of different technology requirements.
- Burgmann mechanical sealing for Vacuum Mixing Making Machine, good sealing effect, and long working life. Material contact parts all use SUS316L stainless steel.
The vacuum emulsifying mixer are mainly used to make high viscosity emulsions, especially creams, ointments and lotions. The functions of heating, cooling, dissolving, emulsification and vacuum defoaming can be completed at one time with an emulsifier; the raw materials can be fully pulverized, mixed, emulsified and homogenized to increase the gloss and stability of the product.
Product Advantage:
The vacuum emulsifying mixer machine produces cream and lotion with a fine, smooth, glossy form and a highly stable essential material. During the production process, operators must have a wide range of skills and abilities to produce the best cream. The classic way of making cream is to heat the oil and water at a temperature, mixing, packing materials, emulsifying, and cooling. On the other hand, the vacuum emulsifying mixer machine's cream is bubble-free, supple, smooth, and has a long life shelf.
Our Service:
We provide Turn-key project service to customer.
1. Factory Layout design;
2. Factory Decoration based on GMP standard;
3. Formula of products;
4. Raw material etc;
5. Machine design, whole production line from A to Z;
6. Shipping service, FOB, CFR, CIF etc;
7. Installation service. Training service, maintain.
